Unit C: Cellular Respiration

courtneyhebert99 Biology 20 High School Englisch

Unit C: Cellular Respiration

Inhalt der Mindmap

Unit C: Cellular Respiration

  1. Cellular Respiration: how plants and animals generate energy from stored glucose

    • Glucose is stored as cellulose and starch in plants and it is stored as glycogen in animals. There are 2 types of CR: -Aerobic -Anaerobic
    • Anaerobic CR = NO OXYGEN
      • ALL organisms perform anaerobic cellular respiration - no special organelle is required.
      • Step 1: Glycolysis
        • Remember that this only yields 2 ATP in total
      • Step 2: Fermentation
        • Alcoholic Fermentation
          • 1) Water is added to pyruvate and a CO2 is expelled which creates a 2 carbon compound (Acetaldehyde) 2) NADH loses its electrons and becomes NAD+ as it reduces acetaldehyde into ethanol
          • Used in Brewing, Wine Making, and Baking
            • Also used in making Soy Sauce, Chocolate, Saki, Vinegar, and Biofuel
        • Lactic Acid Fermentation
          • 1) Pyruvate from glycolysis is reduced into lactic acid by NADH as it is oxidized into NAD+
          • Accounts for Sore muscles, Rigor Mortis, Yogurt & Sauerkraut
        • *remember that there are 2 pyruvates, so these rxns occur twice!
      • *The goal is to get the NAD+ back in order to keep performing glycolysis
    • Aerobic CR = OXYGEN
      • Organisms must have mitochondria in order to perform aerobic cellular respiration

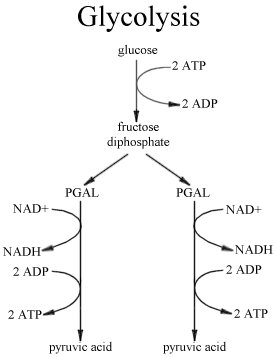

      • Step 1: Glycolysis
        • 1) A glucose molecule is split into 2 PGAL molecules by the oxidation of 2 ATP (Energy investment) 2) NAD+ and ADP are reuced into NADH and ATP as they take electrons from the PGAL and become Pyruvate *this happens twice so a total of 2 NADH are produced & 4 ATP (2 ADP per PGAL)
        • *in cytoplasm
        • Energy input & payoff
          • Results in 2 ATP, 2NADH and 2 Pyruvates
        • not very efficient
          • - You only get 2 ATP from it
      • Step 2: Pyruvate Oxidation
        • 1) Pyruvate moves into the mitochondrial matrix and 1 carbon (CO2) is removed 2) NAD+ is reduced into NADH and an intermediate acetic acid is the result 3) Coenzyme A attaches to the acetic acid which forms Acetyl CoA
        • *in the mitochondria
        • Results in 2 NADH and 2 Acetyl CoA
        • *Happens twice b/c there were 2 Pyruvates made in glycolysis
      • Step 3: Kreb's Cycle
        • *in the matrix
        • *happens twice because 2 acetyl CoA's were made
        • Results in 6 NADH, 2ATP and 2 FADH2 & releases 4 CO2

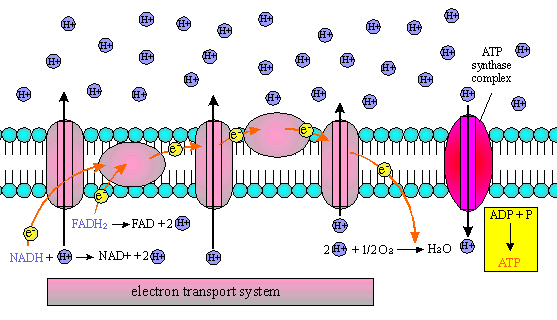

      • Step 4: ETC & Chemiosmosis
        • 1) NADH and FADH2 enter the electron transport system in the inner mitochondrial membrane 2) They drop off their electrons & as they are transferred, an H+ is transported into the intermembrane space (this causes a very high concentration of protons) 3) The electrons are transpired to oxygen and join with a proton to produce water 4) The protons in the intermembrane space down their concentration gradient through ATP Synthase and facilitate the creation of ATP *The NADH that was made in glycolysis has to be converted into FADH2 in order for it to go through the mitochondrial membranes
        • occurs in the mitochondria
        • *where the most ATP is directly created
        • NADH = 3e- --> 3 ATP FADH2 = 2e- --> 2 ATP
        • Oxygen = terminal electron acceptor
        • Results in 24ATP
    • Electron carriers involved = NADH and FADH2
      • NADH is oxidized into NAD+ FADH2 is oxidized into FAD+
    • 36% Efficient
      • Only 36% of the energy in glucose is converted into ATP - the rest is lost as heat (this is used by warm-blooded organisms to stay warm)
  2. ATP is used for many things

    • MOTION
    • TRANSPORTING IONS & MOLECULES
    • BUILDING MOLECULES
    • CONTROLLING RXNS
    • BIOLUMINESCENCE
  3. Mitochondria are involved in anaerobic CR

    • -Double layered organelle that produces lots of ATP
    • Mitochondrial Matrix: protein rich liquid filling the inside of the organelle
      • *Pyruvate oxidation, the Kreb's Cycle, and Electron Transport and Chemiosmosis occur here
    • Intermembrane Space: fluid filled space between inner & outer membranes
  4. Poisons & Supplements

    • Creatine Phosphate
      • = source of phosphate *more phosphate = more ATP? = harder workout session
    • Carbon Monoxide
      • -Binds to RBCs to prevents O2 transport which means there is no terminal electron acceptor -CR stops = death
    • Cyanide & Hydrogen Sulfide
      • Prevent electron transfer in the ETS -body can't survive off of 2 ATP from glycolysis so you die
