Some practice questions for my end of topic test on mechanisms ♡
|
|
Created by lauren ♥
about 10 years ago
|
|
Close
|
|
Created by lauren ♥
about 10 years ago
|
|
What is up and down or
in and out motion
called ? ♡
What is swinging motion
called ? ♡
What is round and round
motion called ? ♡
What is the gear ratio if
gear A has 10 teeth and gear B
has 30 teeth - explain ? ♡
If gear A goes in a clockwise
direction, what direction
does gear B go in ? ♡
What are the circular gears
called and what motion is
achieved with it ? ♡
What is the rectangular gears
called and what motion is
achieved with it ? ♡

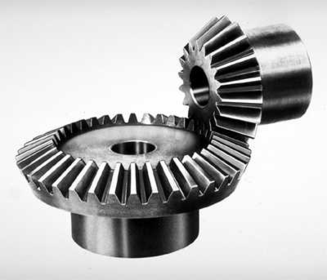

Name these
types of
gears ? ♡
Draw a class 1 lever and label
force, load and fulcrum ? ♡
Use a cross section drawing to explain
the types of holes used when using
a countersunk screw and name the
three types of hole ? ♡
Name this tool and explain what it does ♡
Name this tool and
explain what it does
♡
Draw a front view of the project and label the axle, cam, handle and cam follower ♡
How is motion achieved by moving the handle and then transferred to the object on top ? ♡
