Vectors
Scale Diagram
Join all forces together in a polygon
The line to finish the shape is the resultant
Add arrows showing the direction of the force

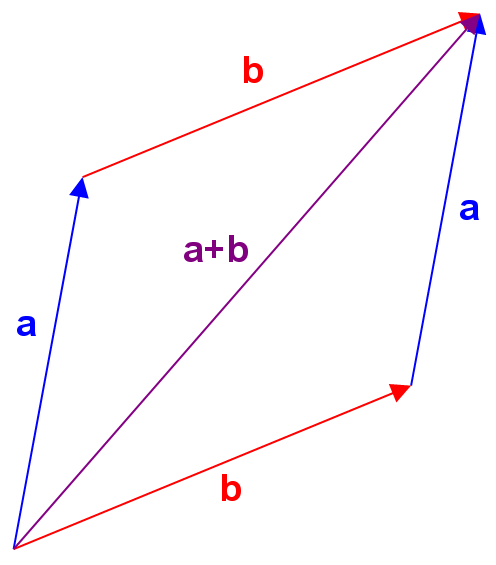

Parallelogram of Forces
Only used with two forces
Make polygon using the forces as sides
Draw a line through the middle, which is the resultant
Vectors at Right Angles
Use Pythagoras to find resultant
Vector = physical quantity with direction and magnitude e.g. displacement, velocity
Scalar = physical quantity that is not directional e.g. mass, energy
Resolving Forces
Split one vector into two (diagonal into horizontal and vertical
Represented as Fv and Fh
The point of this:
Vertical forces have no effect horizontally
Horizontal forces have no effect vertically
Can consider them seperately if split

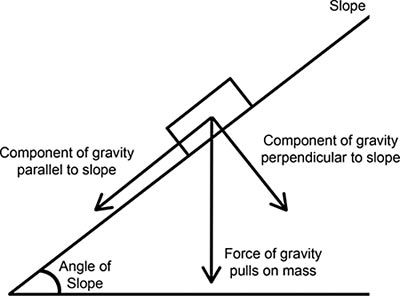

Objects on a Slope
Split the same way if on a slope
Weight on object split into two components (parallel and perpendicular to slope)
If object is in equilibrium
Parallel component equals friction
Perpendicular component equals contact force
