Questão 1
Questão

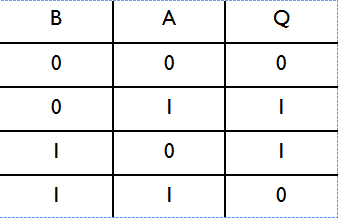

The image is a truth table - for which type of gate?
Responda
-
AND
-
NOR
-
NOT
-
EOR
-
NAND
Questão 2
Questão
Logic gates can use a wide variety of voltages to power them.
Responda
- True
- False
Questão 3
Questão

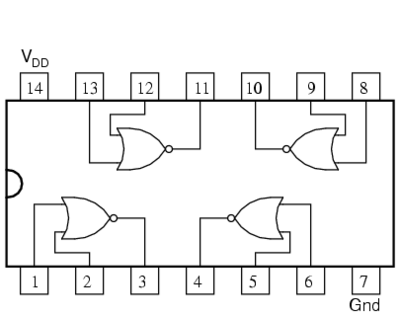

The picture shows the 'pin out' diagram for a 'quad NOR gate' chip.
Which of the following pins could be used as inputs? (click ALL that could be used)
Responda
-
1
-
3
-
5
-
7
-
9
-
11
-
13
Questão 4
Questão
Which pins could be used as outputs - again select ALL that could be from the list below
Responda
-
2
-
4
-
6
-
8
-
10
-
12
-
14
Questão 5
Questão

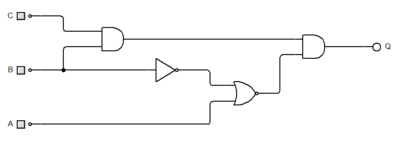

A slightly more complex logic diagram is shown (and is about as hard as the exam might get).

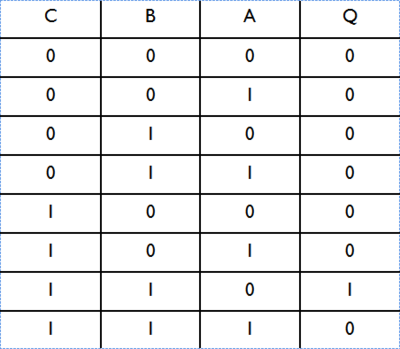

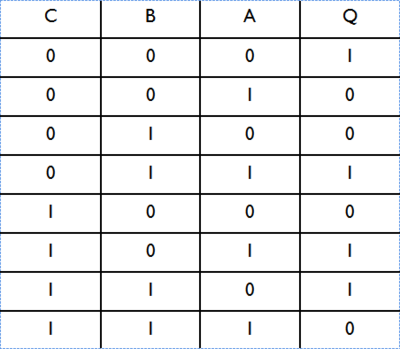

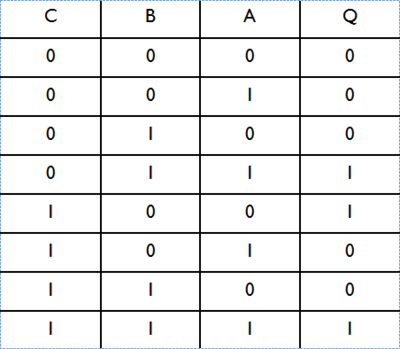

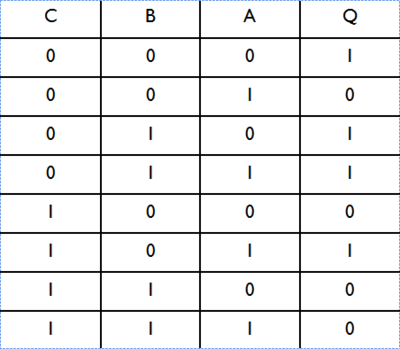

Which of the following truth tables is the correct one?
