CCNP Route

Description

Quiz on CCNP Route, created by amandeep.purewal on 05/03/2016.
amandeep.purewal
Quiz by amandeep.purewal, updated more than 1 year ago
amandeep.purewal
Created by amandeep.purewal about 8 years ago
386
7

Resource summary

Question 1

Question
How do EIGRP routers establish and maintain neighbor relationships?
Answer
  • by exchanging neighbor tables with directly attached routers
  • by comparing known routes to information received in updates
  • by exchanging hello packets with neighboring routers
  • by dynamically learning new routes from neighbors
  • by exchanging routing tables with directly attached routers

Question 2

Question
The IPv6 autoconfiguration feature enables a PC to automatically connect to an IPv6 network. What type of IPv6 address allows a PChost to send a router solicitation message requesting a prefix for stateless autoconfiguration?
Answer
  • link local address
  • site local address
  • aggregatable global unicast address
  • loopback address
  • IPv4-compatible address
  • flow-label address

Question 3

Question
During an interview, the company IT manager mentions that the company has two critical communication links to its main supplier. These links require an uptime of 24/7. Which part of the PPDIOO process is most affected by this information?
Answer
  • implementation phase
  • design phase
  • routing protocol selection
  • prototype design plan

Question 4

Question

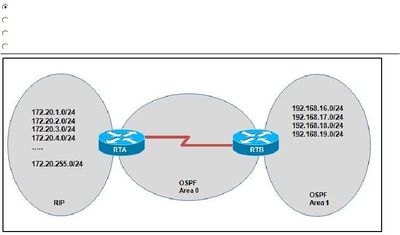

Refer to the exhibit. The RIP routes must be injected into the OSPF domain. Which command will perform external route summarization?
Answer
  • RTA(config-router)# summary-address 172.20.0.0 255.255.0.0
  • RTB(config-router)# summary-address 192.168.16.0 255.255.252.0
  • RTB(config-router)# area 1 range 192.168.16.0 255.255.252.0
  • RTA(config-router)# area 1 range 172.20.0.0 255.255.0.0

Question 5

Question

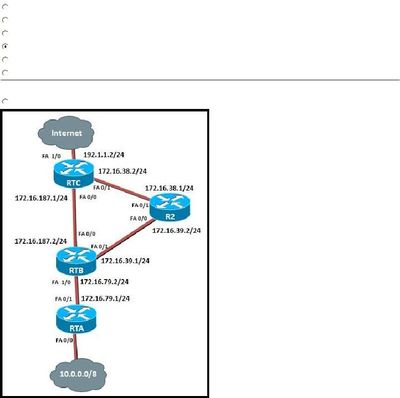

Refer to the exhibit. access-list 111 permit ip 10.0.0.0 0.255.255.255 any route-map net-10 permit 10 match ip address 111 set interface FastEthernet 0/1 Where would the system administrator apply the above configuration to establish policy-based routing that directs packets from the10.0.0.0/8 network through the R2 router to the Internet?
Answer
  • RTA interface Fa 0/0
  • RTA interface Fa 0/1
  • RTB interface Fa 0/1
  • RTB interface Fa 1/0
  • R2 interface Fa 0/0
  • R2 interface Fa 0/1

Question 6

Question
How does OSPF exchange routing updates when the passive -interface command is applied?
Answer
  • OSPF forms neighbor adjacencies on that interface.
  • The OSPF interface enters an active state.
  • OSPF stops sending routing updates out that interface.
  • OSPF only receives routing updates on that interface.
  • OSPF neither sends nor receives routing updates through that interface.

Question 7

Question
Which functional component of the Cisco Enterprise Architecture is responsible for hosting internal servers?
Answer
  • enterprise campus
  • enterprise edge
  • service provider edge
  • building distribution

Question 8

Question

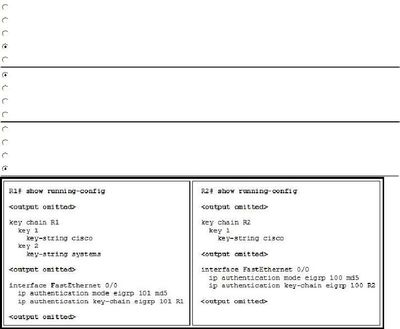

Refer to the exhibit. A network administrator has configured EIGRP authentication between routers R1 and R2. After the routing tables are reviewed, it is noted that neither router is receiving EIGRP updates. What is a possible cause for this failure?
Answer
  • The same key chain name must be used on each router.
  • The same number of key strings must be used on each router.
  • The key string should be used in interface mode instead of the key chain.
  • The same autonomous system numbers must be used in the interface configurations of each router.
  • The authentication configuration is correct, but the show ip eigrp neighbors command should be issued to troubleshoot the issue.

Question 9

Question

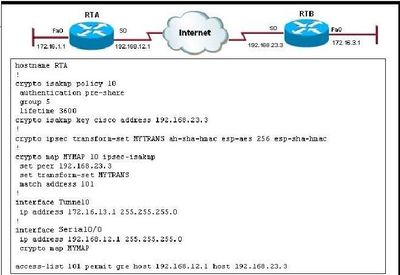

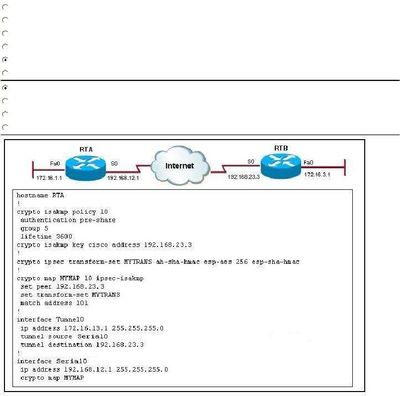

Refer to the exhibit. A GRE tunnel must be configured between routers RTA and RTB. Assume that router RTB has been correctly configured. Which command would correctly configure router RTA to encrypt traffic that is destined for router RTB?
Answer
  • access-list 101 permit gre 172.16.1.0 0.0.0.255 172.16.3.0 0.0.0.255
  • access-list 101 permit gre host 172.16.1.1 host 172.16.3.1
  • access-list 101 permit ip 172.16.1.0 0.0.0.255 172.16.3.0 0.0.0.255
  • access-list 101 permit ip host 172.16.1.1 host 172.16.3.1
  • access-list 101 permit gre host 192.168.12.1 host 192.168.23.3
  • access-list 101 permit gre host 192.168.23.3 host 192.168.12.1

Question 10

Question
What does the log message %DUAL-3-SIA: Route 10.1.2.0/24 stuck in active state in IP-EIGRP 24 mean?
Answer
  • An EIGRP reply packet was not received from one or more neighbors within the time frame of 180 seconds.
  • DUAL has detected a routing loop for the 10.1.2.0/24 network.
  • EIGRP neighbors on the 10.1.2.0/24 network are stuck in the DUAL active state.
  • EIGRP for AS 24 is not yet configured for DUAL.

Question 11

Question

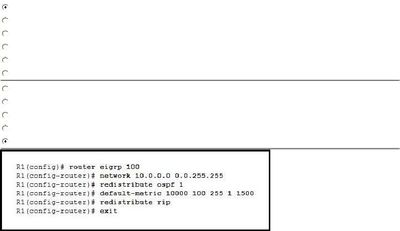

Refer to the exhibit. Which route redistribution statement is true?
Answer
  • No metric is set for OSPF routes redistributed into EIGRP.
  • OSPF is redistributed into EIGRP with a default metric of 1.
  • No seed metric is set for redistributed RIP routes into EIGRP.
  • RIP routes are redistributed into EIGRP with a seed metric of infinity.
  • Both RIP and OSPF will be redistributed into EIGRP with the same seed metric.

Question 12

Question
Which access technology would be the most insecure to use when interconnecting a branch site?
Answer
  • cable or DSL
  • Frame Relay
  • IPsec VPN
  • leased line
  • MPLS VPN
  • SSL

Question 13

Question

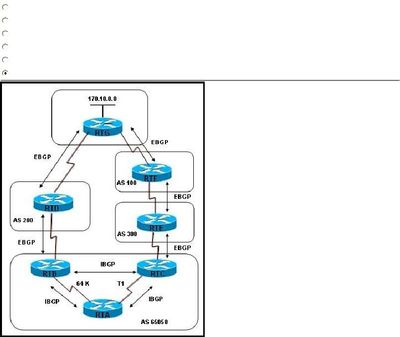

Refer to the exhibit. The BGP sessions are established between all routers. RTC receives route updates for network 170.10.0.0 from autonomous system 300 with the weight attribute set to 3000. RTB learns about network 170.10.0.0 from autonomous system 200 with a weight of 2000. Which router will be used by RTA as a next hop to reach network 170.10.0.0?
Answer
  • RTC because of the highest weight
  • RTC because of the T1 link
  • RTC because of the longest AS_Path
  • RTB because of the lowest weight
  • RTB because of the slow 64-kb/s link
  • RTB because of the shortest AS_Path

Question 14

Question

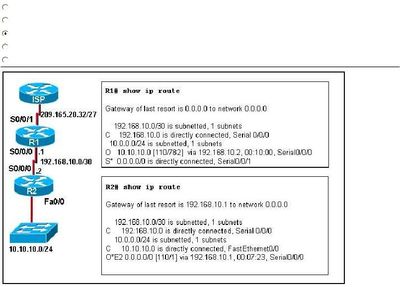

Refer to the exhibit. How is the OSPF default gateway entry determined for R2?
Answer
  • Default routes are automatically injected by OSPF into all advertisements.
  • A static default gateway route is defined in the configuration of R2.
  • The default-information originate command is applied on R1.
  • The ISP defines the gateway of last resort and automatically passes it to R1 and R2.
  • The ip default-gateway command is applied on R2.

Question 15

Question

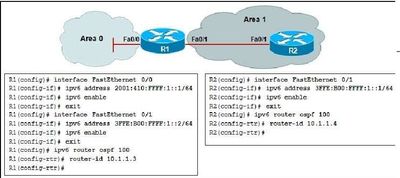

Refer to the exhibit. OSPF and OSPFv3 have been configured on routers R1 and R2. However, they can exchange routing updates for OSPF but not for OSPFv3. What additional step should be taken to remedy the problem?
Answer
  • Configure interface Fa0/1 on R2 with the ipv6 address 2001::/64 eui-64 command.
  • Configure interface Fa0/0 on R1 with ipv6 address FE80::2E0:F7FF:FE45:7403 command.
  • Remove the IPv4 addresses on both routers R1 and R2 in order for OSPFv3 to exchange routing updates.
  • Remove the global IPv6 address from Fa0/0 interface on R1 in order for OSPFv3 to use the link-local address to exchange routingupdates.

Question 16

Question
Refer to the exhibit. Based on the configuration in the exhibit, which statement is true?
Answer
  • Access list 1 specifies that packets with a destination address of 192.168.1.0 will be policy-routed.
  • Access list 2 specifies that packets with a source address of 172.16.1.0 will be policy-routed.
  • Packets that match access list 1 will be sent to the next-hop address 172.17.1.2.
  • Packets that match access list 2 will be denied access.
  • Both match statements must be true for route map ISP1 to be true.

Question 17

Question
When would the network administrator use the ip bandwidth -percent eigrp as-number percent command?
Answer
  • when there is a low bandwidth connection
  • when the connection is on a shared medium
  • when the connection is serial instead of Ethernet
  • when the link is always busy

Question 18

Question

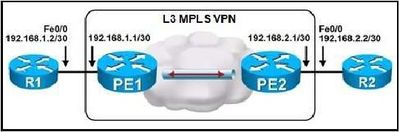

Which two EIGRP and MPLS implementation statements are true? (Choose two.)
Answer
  • Two EIGRP routers must be on the same IP subnet when connecting over a Layer 2 MPLS VPN backbone.
  • Two EIGRP routers must be on the same IP subnet when connecting over a Layer 3 MPLS VPN backbone.
  • Two EIGRP routers must be on different IP subnets when connecting over a Layer 2 MPLS VPN backbone.
  • Two EIGRP routers must be on different IP subnets when connecting over a Layer 3 MPLS VPN backbone.

Question 19

Question

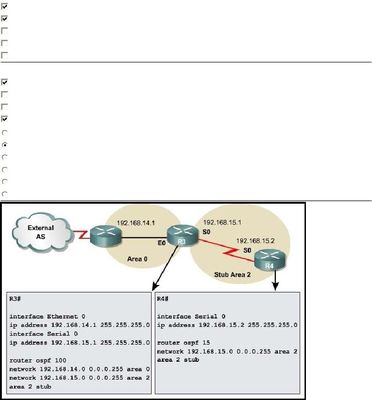

Refer to the exhibit. A network administrator is troubleshooting a recent OSPF stub configuration between R3 and R4. The only routes that should appear on the routing table for R4 are intra-area routes and the default route. However, interarea routes are also appearing.What must the administrator do to fix this problem?
Answer
  • Issue the keyword stub on R3.
  • Issue the keyword no-summary on R3.
  • Issue the keyword nssa on R3.
  • Issue the keyword stub on R4.
  • Issue the keyword no-summary on R4.
  • Issue the keyword nssa on R4.

Question 20

Question
A network administrator must interconnect a small office/home office (SOHO) in a modern metropolitan city. Which two access technologies would be the most cost effective solutions to implement? (Choose two.)
Answer
  • cable
  • DSL
  • Frame Relay
  • leased lines
  • MPLS

Question 21

Question
Which three features are commonly supported at the distribution layer of the Cisco hierarchical network model? (Choose three.)
Answer
  • security policies
  • Power over Ethernet
  • switch port security
  • quality of service
  • Layer 3 functionality
  • end user access to network

Question 22

Question
On an OSPF multiaccess network, which multicast address must a non-DR router use to send an LSU packet that contains new link-state information?
Answer
  • 224.0.0.1
  • 224.0.0.2
  • 224.0.0.5
  • 224.0.0.6
  • 224.0.0.9

Question 23

Question
What is the best solution for the split-horizon problem in a Frame Relay network?
Answer
  • disabling split horizon
  • using IGRP
  • using point-to-point subinterfaces
  • using floating static routes

Question 24

Question

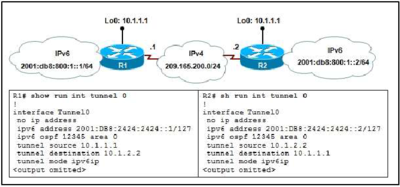

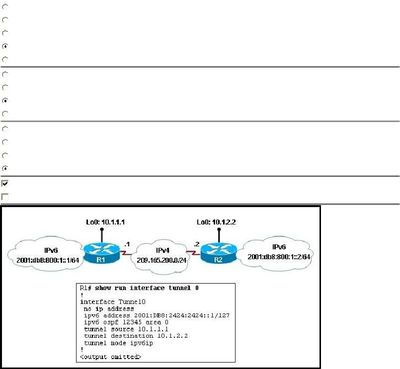

Refer to the exhibit. Which tunnel type should be configured on router R2 in order to establish connectivity between the two IPv6 islands?
Answer
  • automatic 6to4 tunnel
  • automatic ISATAP tunnel
  • manually configured GRE tunnel
  • manually configured IPv6 over IPv4

Question 25

Question

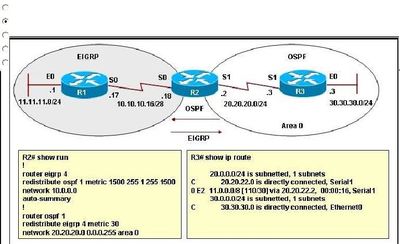

Refer to the exhibit. A two-way redistribution is configured on router R2 between the EIGRP and the OSPF domains. The show ip route command output taken on R3 reveals that the network 10.10.10.16/28 is not installed in the routing table. What could the problem be?
Answer
  • A metric-type command is missing from the redistribution statement under OSPF routing process on R2.
  • A subnets command keyword is missing from the redistribution statement under the OSPF routing process on R2.
  • A summary-address command should be given under the OSPF routing process.
  • A no auto-summary command should be used under the EIGRP configuration on R2.
  • An area-range command should be used under the OSPF routing process.

Question 26

Question

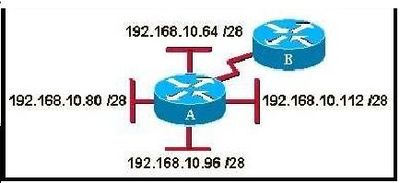

Refer to the exhibit. Routers A and B have EIGRP configured and automatic summarization has been disabled on both routers. Which two router commands should be used to summarize the attached routes, and to which interface is this command applied? (Choose two.)
Answer
  • ip summary-address eigrp 1 192.168.10.64 255.255.255.192
  • ip area-range eigrp 1 192.168.10.80 255.255.255.224
  • summary-address 192.168.10.80 0.0.0.31
  • ip summary-address eigrp 1 192.168.10.64 0.0.0.63
  • serial interface on router A

Question 27

Question

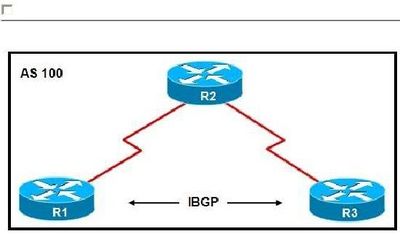

Refer to the exhibit. Assume router R2 does not have BGP enabled. However, the neighbor remote-as router configuration command has been entered on routers R1 and R3. Based on the information that is presented, which two statements are true? (Choose two.)
Answer
  • R1 will establish a peer relationship with R2 because they belong to the same BGP autonomous system.
  • R1 will establish a peer relationship with R3 because they have an IBGP session established.
  • R1 will establish a peer relationship with R2 although they do not have an IBGP session established.
  • R1 will establish a peer relationship with R3 although they are not directly connected.
  • R1 will establish a peer relationship with R2 because they are directly connected.

Question 28

Question
Which two statements are true of policy-based routing (PBR) as a path control tool? (Choose two.)
Answer
  • It is applied only in the inbound direction.
  • It can be applied only to link-state routing protocols.
  • Packets that do not match any match statements will be dropped.
  • It provides a mechanism to mark packets with different types of service (ToS).
  • Configured route map entries will have default sequence number increments of 5.

Question 29

Question
A router has EIGRP configured as the only routing protocol. In what way does EIGRP respond if there is no feasible successor route to a destination network and the successor route fails?
Answer
  • It broadcasts hello packets to all routers in the network to re-establish neighbor adjacencies.
  • It sends queries to adjacent neighbors to find a new successor route.
  • It immediately sends its entire routing table to its neighbors.
  • It sets the metric for the failed route to zero.

Question 30

Question

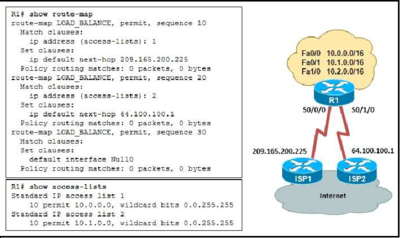

Refer to the exhibit. The route map LOAD_BALANCE has been applied to the FastEthernet interfaces of R1, and all interfaces are up. R1 uses two default static routes to reach the Internet via ISP1 and ISP2. Which traffic will be sent to the null 0 interface by the route map onR1?
Answer
  • any packets that are sourced from the Internet
  • packets that are not sourced from the 10.2.0.0 network
  • packets that are not sourced from the ISP1 or ISP2 routers
  • packets that are sourced from the 10.2.0.0 network and destined for the Internet
  • packets that are sourced from 10.0.0.0 or 10.1.0.0 networks and destined for 10.2.0.0

Question 31

Question
Which two statements are correct about redistribution? (Choose two.)
Answer
  • The default-metric router configuration command takes precedence over the metric metric-value option in the redistribute command.
  • The redistribute command is issued under the routing process that will send the redistributed routes.
  • When redistribution is occurring into OSPF, the optional subnets keyword specifies that subnetted routes should also be redistributed.
  • When redistributing into EIGRP, there are five parameters that encompass the metric value, although only four parameters are used to determine the metric.
  • Because of safeguards such as administrative distance, routing loops that are caused by redistribution are not possible.

Question 32

Question
What are two effective ways to prevent the EIGRP stuck-in-active problem? (Choose two.)
Answer
  • Modify keepalive timers on point-to-point connections.
  • Manually summarize routes wherever possible.
  • Configure core routers with SIA-Guard.
  • Configure distribution routers with SIA-Guard.
  • Set K-values to their default.
  • Maintain a hierarchical network design.

Question 33

Question
What are two significant benefits that are provided by IPsec? (Choose two.)
Answer
  • authentication
  • encryption
  • automatic creation of a public network
  • automatic creation of a private network
  • encapsulation

Question 34

Question

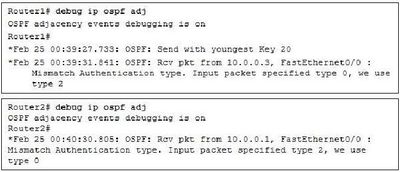

Refer to the exhibit. An administrator is troubleshooting an adjacency problem between two OSPF routers. From the debug output, what is most likely the cause of the problem?
Answer
  • The routers are using mismatched authentication passwords.
  • Router1 is using only simple password authentication.
  • The routers are using different MD5 key numbers.
  • The key types are mismatched on the routers.
  • The authentication methods do not match.

Question 35

Question
Refer to the exhibit. Which set of features corresponds accurately to the Cisco Hierarchical Network Model as represented by the diagram?
Answer
  • 1. distribution - high speed switching 2. core - policy-based connectivity 3. access - local and remote workgroup
  • 1. access - policy-based connectivity 2. distribution - high speed switching 3. core - local and remote workgroup
  • 1. core - high speed switching 2. distribution - policy-based connectivity 3. access - local and remote workgroup
  • 1. core - policy-based connectivity 2. distribution - high speed switching 3. access - local and remote workgroup
  • 1. access - policy-based connectivity 2. core - local and remote workgroup 3. distribution - high speed switching
  • 1. distribution - high speed switching 2. access - local and remote workgroup 3. core - policy-based connectivity

Question 36

Question
What is typically deployed to support high-speed transmissions of data to SOHO cable modems?
Answer
  • 1000BASE-TX
  • DSL technology
  • fiber to the premises (FTTP)
  • high speed dialup cable modems
  • hybrid fiber-coaxial (HFC)

Question 37

Question
Refer to the exhibit. RTA cannot establish an EBGP session with RTC in autonomous system 100. Which configuration command will fix the problem?
Answer
  • The neighbor 3.3.3.1 remote-as 100 command should be applied on RTA.
  • The neighbor 1.1.1.2 remote-as 100 command should be applied on RTB.
  • The neighbor 3.3.3.1 ebgp-multihop command should be applied on RTA.
  • The neighbor 1.1.1.2 ebgp-multihop command should be applied on RTA.
  • The neighbor 1.1.1.2 ebgp-multihop command should be applied on RTB.

Question 38

Question
Which three critical functions are provided by VPNs? (Choose three.)
Answer
  • confidentiality of information
  • integrity of data
  • authorization of users
  • authentication of users
  • WAN management
  • quality of connection

Question 39

Question
Refer to the exhibit. Which OSPFv3 configuration statement is true?
Answer
  • The router ospf cost command should be issued under router configuration mode.
  • The ipv6 ospf 100 area 1 interface configuration command must be entered on interface Fa0/1 of routers R1 and R2.
  • The router-id command must be entered under each FastEthernet interface of routers R1 and R2.
  • The router-id command must be entered using an IPv6 address.

Question 40

Question
What is a characteristic of an IBGP session type?
Answer
  • Neighbors may be located anywhere within multiple autonomous systems, even several hops away from each other.
  • A session typically occurs between routers in different autonomous systems with multiple ISPs.
  • It can be established between routers in the same AS even if they are not link partners.
  • It occurs between routers in two different autonomous systems.

Question 41

Question

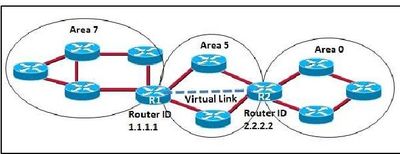

Refer to the exhibit. Which two commands need to be used on R1 and R2 to create a virtual link to and from area 0? (Choose two.)
Answer
  • R2(config-router)# area 0 virtual-link 1.1.1.1
  • R1(config-router)# area 0 virtual-link 2.2.2.2
  • R2(config-router)# area 5 virtual-link 1.1.1.1
  • R1(config-router)# area 5 virtual-link 2.2.2.2
  • R2(config-router)# area 7 virtual-link 1.1.1.1
  • R1(config-router)# area 7 virtual-link 2.2.2.2

Question 42

Question
Refer to the exhibit. RTA, RTB, and RTC are connected through Frame Relay. RTA advertises network 180.80.0.0 to RTC with a next hop of 170.70.20.3. When RTC attempts to reach network 180.80.0.0, the routing fails. What should be configured under the BGP routing process to remedy the problem?
Answer
  • RTA(config-router)# neighbor 170.70.20.3 next-hop-self
  • RTA(config-router)# neighbor 170.70.20.1 next-hop-self
  • RTB(config-router)# neighbor 170.70.20.1 next-hop-self
  • RTA(config-router)# bgp default local-preference 200
  • RTA(config-router)# neighbor 170.70.20.1 weight 2000
  • RTA(config-router)# neighbor 170.70.20.1 send-community

Question 43

Question
Which two statements accurately describe the RIPng routing protocol? (Choose two.)
Answer
  • RIPng forwards IPv6 broadcasts.
  • RIPng has a limit of 15 hops.
  • RIPng is a link-state routing protocol.
  • RIPng uses poison reverse.
  • RIPng uses UDP port 238 for updates.

Question 44

Question
In the design of a network that will be based on the Cisco Enterprise Architecture, which two items would be included in the enterprise edge functional component? (Choose two.)
Answer
  • internal web servers
  • core layer routers
  • VPN servers
  • a server farm
  • an intrusion detection system

Question 45

Question
Refer to the exhibit. Router R1 is seeing routes that are advertised by router R2, and R2 is seeing routes that are advertised by R1. Which two statements are true when using EIGRP and an L3 MPLS VPN? (Choose two.)
Answer
  • Router R1 has established an EIGRP neighbor relationship with router PE1.
  • Router R1 has established an EIGRP neighbor relationship with router PE2.
  • Router R1 has established an EIGRP neighbor relationship with router R2.
  • Router R2 has established an EIGRP neighbor relationship with router PE1.
  • Router R2 has established an EIGRP neighbor relationship with router PE2.
  • Router R2 has established an EIGRP neighbor relationship with router R1.

Question 46

Question
Refer to the exhibit. After configuring the IPv6 manual tunnel, a network administrator tries to verify the configuration from R1. Which IPaddresses should be included in the extended ping command in order to verify the status of the tunnel?

Question 47

Question
Multiple paths exist in the BGP table. Assuming the weights are the same, what will the next determining factor be?
Answer
  • lowest MED
  • locally originated
  • shortest AS_Path
  • lowest origin type
  • highest local preference

Question 48

Question
Which two variables must match between two OSPF routers to form a neighbor adjacency? (Choose two.)
Answer
  • area IDs
  • K-values
  • process IDs
  • router priorities
  • hello and dead intervals

Question 49

Question
When the command distribute-list 1 in serial 0/0 is used, which routing updates would be permitted?
Answer
  • Routing updates that are received on any interface and permitted by ACL 1.
  • Routing updates that are received on serial 0/0 and permitted by ACL 1.
  • Routing updates that are received on any interface and permitted by prefix-list 1.
  • Routing updates that are received on serial 0/0 and permitted by prefix-list 1.
  • Routing updates that are received on any interface and permitted by route-map 1.
  • Routing updates that are received on serial 0/0 and permitted by route-map 1.

Question 50

Question
Which two tasks should be conducted during the PPDIOO Prepare phase? (Choose two.)
Answer
  • Develop an implementation plan.
  • Choose vendors and technical partners.
  • Establish organizational requirements.
  • Identify financial justification for upgrade.
  • Compare network performance with design goals.

Question 51

Question

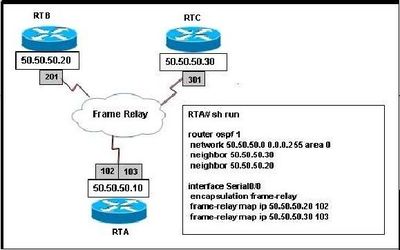

Refer to the diagram and configuration. OSPF is configured over Frame Relay using neighbor statements under router ospf mode. Although all PVCs are active, RTB and RTC do not see all OSPF routes in their routing tables. What could be done to fix this problem? (Choose two.)
Answer
  • The frame-relay map statements on all routers should include the broadcast keyword.
  • The frame-relay map statements should be replaced by using the frame-relay interface-dlci command.
  • The priority value on the hub router should be set to 0.
  • The priority value on the spoke routers should be set to 0.
  • The ip ospf network non-broadcast command should be applied on each router.

Question 52

Question
Which statement about stateless autoconfiguration is true?
Answer
  • A host can autoconfigure itself by appending its MAC address to the local link prefix (64 bits).
  • Autoconfiguration allows devices to connect themselves to the network via IOS router DHCP services.
  • Autoconfiguration is well suited for devices such as servers and print servers.
  • During the autoconfiguration process, a router advertises the IPv6 64-bit prefix of its interface, and the host prepends this prefix toits modified EUI-64 formatted MAC address.
  • During the autoconfiguration process, the host sends a router advertisement, and the router replies with a router solicitation.

Question 53

Question
Refer to the exhibit. R1 and R2 are unable to establish a BGP peer relationship. After a network administrator has confirmed that each router can ping the loopback interface of the other router, what can be done to fix this problem?
Answer
  • Add a BGP network command for 4.1.1.0/24 on both routers.
  • Add the BGP no synchronization command on both routers.
  • Add the BGP neighbor ebgp-multihop 255 command on both routers.
  • Add the BGP neighbor update-source serial0 command on both routers.

Question 54

Question
Which three statements are correct about the properties of an OSPF point-to-multipoint network type? (Choose three.)
Answer
  • All routers can be configured as point-to-multipoint.
  • An OSPF point-to-multipoint network needs more PVCs because it requires a full-mesh topology.
  • All of the links between the routers are in the same IP subnet.
  • The DR/BDR is required and must be configured manually.
  • Cisco point-to-multipoint nonbroadcast mode neighbors must be statically defined.

Question 55

Question
Which two OSPFv3 statements are true? (Choose two.)
Answer
  • OSPF networks are configured under router configuration mode.
  • The multicast address FF02::6 is used to forward packets to the OSPF DR and BDR.
  • The router ID is configured using using an IPv4 address.
  • The router-id router-id command is issued in interface configuration mode.
  • The router ospf priority priority command is issued under the router configuration mode.

Question 56

Question
Refer to the exhibit. A GRE tunnel must be configured between routers RTA and RTB. Assume that router RTB has been correctly configured. Which set of commands would correctly configure router RTA to encrypt traffic destined for router RTB?
Answer
  • interface Tunnel0 tunnel source FastEthernet0 tunnel destination 172.16.3.1
  • interface Tunnel0 tunnel source FastEthernet0 tunnel destination 172.16.13.2
  • interface Tunnel0 tunnel source FastEthernet0 tunnel destination 192.168.23.3
  • interface Tunnel0 tunnel source Serial0 tunnel destination 172.16.3.1
  • interface Tunnel0 tunnel source Serial0 tunnel destination 172.16.13.2
  • interface Tunnel0 tunnel source Serial0 tunnel destination 192.168.23.3

Question 57

Question

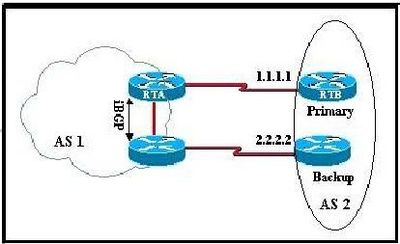

Refer to the exhibit. Assume all routers are running BGP sessions and both links are operational. Which procedure would ensure that AS1 routers use link 1.1.1.1 for packet transmittal to AS2?
Answer
  • Set RTA local preference to 50 and other AS1 router local preference to 100.
  • Set RTA local preference to 100 and other AS1 router local preference to 50.
  • Set RTB local preference to 50 and other AS2 router local preference to 100.
  • Set RTB local preference to 100 and other AS2 router local preference to 50.

Question 58

Question
What is a characteristic of ADSL?
Answer
  • It is designed to deliver more bandwidth downstream than upstream.
  • It is designed to deliver more bandwidth upstream than downstream.
  • The upstream rate ranges from 1.5 to 9 Mb/s.
  • The downstream rates ranges from 16 to 640 Kb/s.

Question 59

Question
Which two OSPF routing protocol characteristics can be used or modified at redistribution points to help implement a path control strategy? (Choose two.)
Answer
  • metric
  • route tag
  • unequal cost load balancing
  • NSSA translation of Type 7 LSAs to Type 5 LSAs
  • process ID

Question 60

Question
Which two networks would match the following prefix list? (Choose two.) ip prefix-list MATCHTHIS seq 5 deny 10.1.0.0/16 ge 24 le 30
Answer
  • 10.0.0.0/16
  • 10.0.0.0/24
  • 10.1.0.0/16
  • 10.1.0.0/24
  • 10.1.1.0/30
Show full summary Hide full summary

Similar

CCNP Route: Chap. 1, Router Services
Esteban Lora
Geometry Formulas (Perimeters)
PatrickNoonan
River Processes and Landforms
1jdjdjd1
Key Paintings
Julia Lee
Developmental Psychology - Freud, Little Hans (1909)
Robyn Chamberlain
A-Level History: Nazi Germany
cian.buckley+1
CHEMISTRY C1 5
x_clairey_x
Lord of the Flies - CFE Higher English
Daniel Cormack
Edexcel Additional Science Chemistry Topics 1+2
El Smith
FUNCTIONALIST ROLE OF EDUCATION
ashiana121
Present Simple Vs Present Continuous
Luis Alcaraz
