Short test: Resistors in Series and parallel
Dieses Quiz enthält Fragetypen, die sich im gewohnten Player öffnen.
Fragen in diesem Quiz (7)

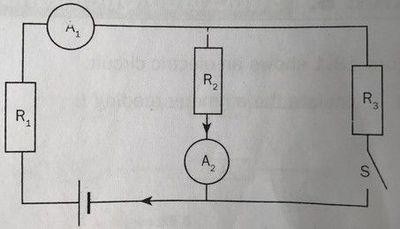

1Three resistors, R1, R2 and R3, of equal resistance R are connected in a circuit. How will the readings on ammeters A1 and A2 be affected when switch S is closed? Reading on A1: [blank_start]increases[blank_end]
- Aincreases
- Bdecreases
2Three resistors, R1, R2 and R3, of equal resistance R are connected in a circuit. How will the readings on ammeters A1 and A2 be affected when switch S is closed? Reading on A2: [blank_start]increases[blank_end]
- Aincreases
- Bdecreases

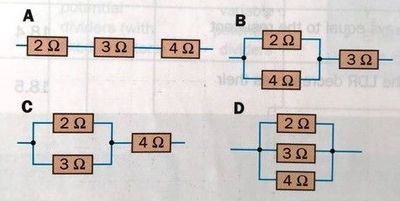

3Which of the following combinations of resistors has the lowest resistance?
- AA
- BB
- CC
- DD
4When resistors are connected in series in a circuit, the current (I) is divided among the resistors.
- ARichtig
- BFalsch
5In a series circuit, the potential difference (V) across the whole circuit is equal to the sum of the potential difference across each circuit component.
- ARichtig
- BFalsch
6The current from the electrical source of a parallel circuit is equal to the current in each parallel branch.
- ARichtig
- BFalsch
7In a parallel circuit, the potential difference (V) across the whole circuit is equal to the sum of the potential difference across each circuit component.
- ARichtig
- BFalsch
