| Question | Answer |
|

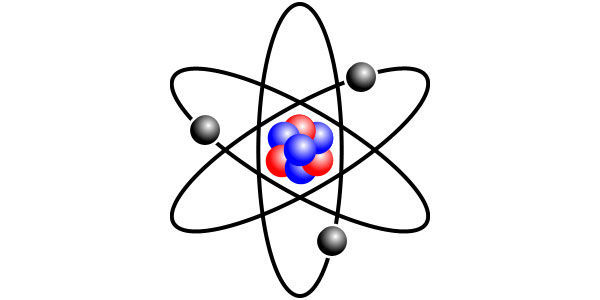

List the particles found in an atom
Image:
Atom (image/jpeg)
|
Protons, Neutrons and Electrons |
| Identify the mass and charge of an electon | Mass is almost zero Charge is -1 |
| Identify the mass and charge of a proton | Mass is 1 Charge is 1 |
| Identify the mass and charge of a neutron | Mass is 1 Charge is 0 |
|
Explain how an insulator is charged
Image:
1 6 Charges 020 (image/gif)
|
Rubbing the insulator caused friction which transfers electrons onto, or from, the object. |
| State the charge on an object that has gained electrons |
Negative
Image:
Negative (image/png)
|
| State the charge on an object that has lost electrons | Positive |

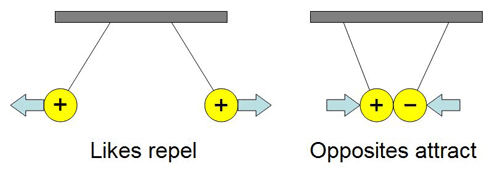

| Describe the interaction between like charges e.g. positive - positive or negative - negative | Repel |
| Describe the interaction between unlike charges e.g. positive - negative | Attract |
|

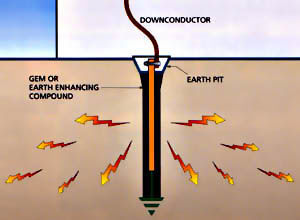

Explain the process of earthing
Image:
Point 3 Gem (image/jpeg)
|
Earthing removes excess charge by allowing electrons to flow onto or from an object |

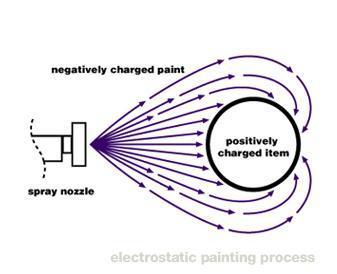

| Explain the advantages of electrostatic paint sprays and insecticide sprays | The droplets have like charges so they repel and spread out. It will also be attracted to uncharged objects. |
| Describe the dangers of electrostatic charges when refuelling a vehicle | A spark can ignite the fuel causing an explosion |

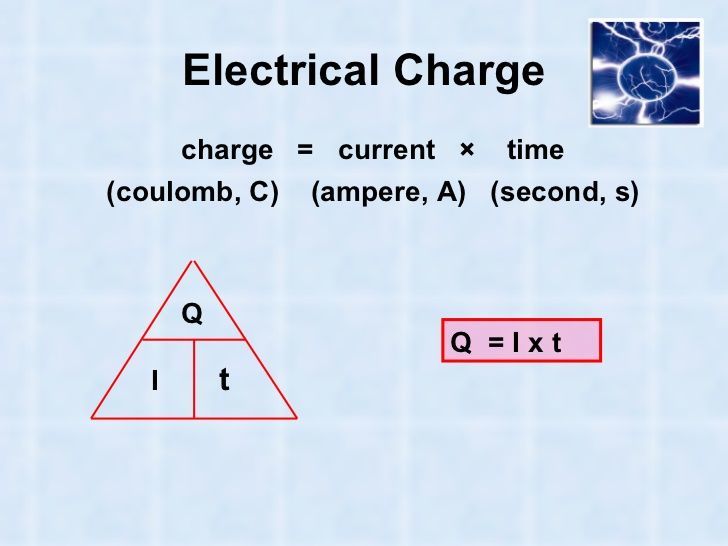

| Identify the units of charge | |

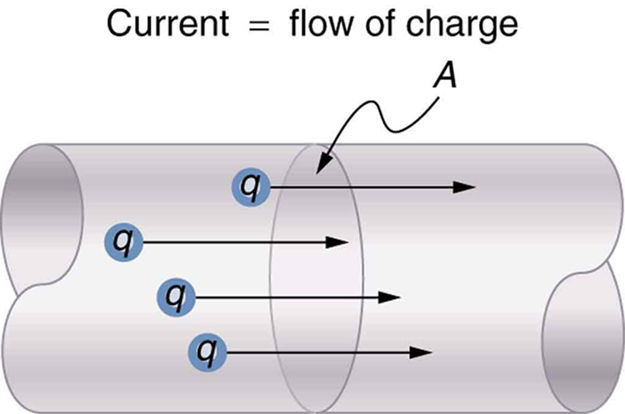

| Define electric current | The rate of flow of charge or The flow of electrons |
|

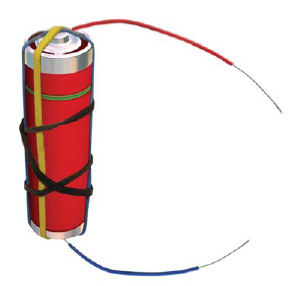

Identify the type of current supplied by cells and batteries
Image:
4 (image/png)
|

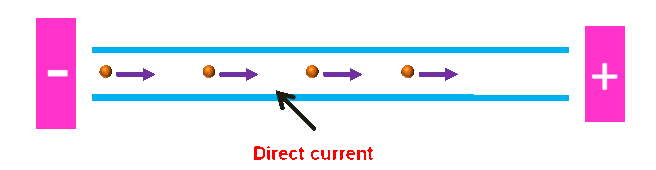

Direct current
Image:
Dc Current (image/jpeg)
|
| Define the term direct current | The movement of charge in one direction only |
