Angle Rules and deffinitions

Description

Flashcards on Angle Rules and deffinitions, created by navnand on 18/05/2016.
navnand
Flashcards by navnand, updated more than 1 year ago
navnand
Created by navnand about 9 years ago
7
0
1 2 3 4 5 (0)

Resource summary

Question Answer

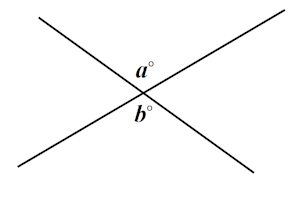

a = b Vertically opposite angels are equal. vert. opp. <'s
a + b = 180 Adjacent angels on a straight line add to 180. adj. <'s on st. line
a + b + c = 360 Angles at a point add to 360. <'s at pt.
(transversal) a = b Corresponding angels on parallel lines are equal. corresp. <'s, // lines.
a = b Alternate angels on parallel line are equal. alt.<'s, // line.

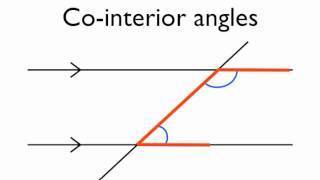

a + b = 180 Co-interior angles on parallel lines add to 180. co-int. <'s, // lines
Angels in a triangle add to 180. < sum of ^
a = b The base angles of an isosceles triangle are equal. base <'s isos. ^
Each angle in an equilateral triangle is 60. < in equailat. ^
a + b = c The exterior angle of a triangle equals the sum of the two interior opposite angles. ext. < of ^

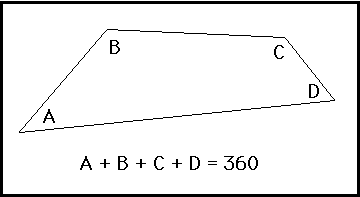

Interior angles in a quadrilateral add up to 360. < sum of quad.
Sum= 180 x (5-2) = 180 x 3 = 540 The interior angles of a polygon: Sum= 180 (n-2)*, where n is the number of sides. int. < sum of polygon
a + b + c + d = 360 The exterior angles of a polygon add to 360 ext. < sum of polygon
Show full summary Hide full summary
