Question Answer
UNIDADE IV Álgebra Booleana e Simplificação de Circuitos

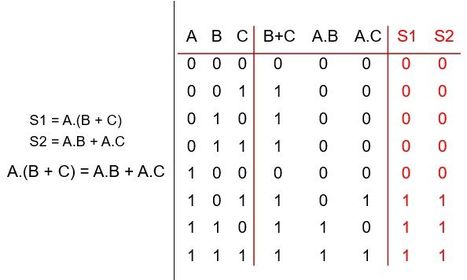

Equivalência de Expressões Lógicas
Image: ad38b191-4f9b-41c1-810e-1a7a95901dac (image/jpg)

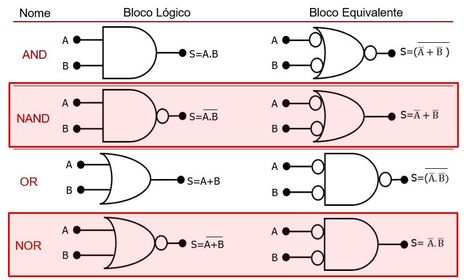

Equivalência de Blocos Lógicos
Image: b8a2bf59-af17-452b-b626-4068f9533962 (image/jpg)

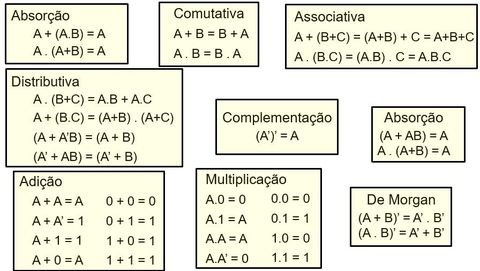

Propriedades da Álgebra de Boole
Image: ab6b73fb-cf16-4af3-b463-06dc64b6c327 (image/jpg)

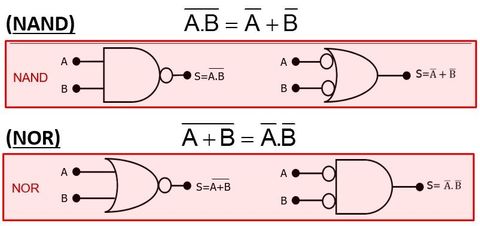

Teorema de De Morgan (NAND e NOR)
Image: 85cbd686-1371-47bf-91fd-0c5b03f423c6 (image/jpg)

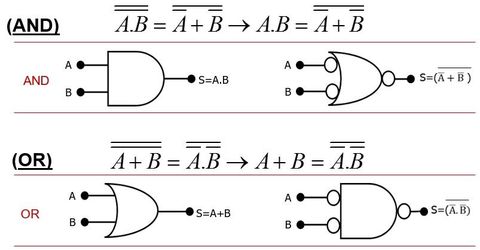

Teorema de De Morgan (AND e OR)
Image: 2fcf84c9-b319-4b1b-a876-5ba5b3eef8da (image/jpg)

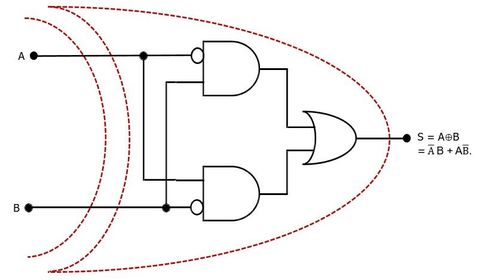

Ou Exclusivo (XOR)
Image: 164caa35-5e95-40dd-995b-b6b5de921797 (image/jpg)

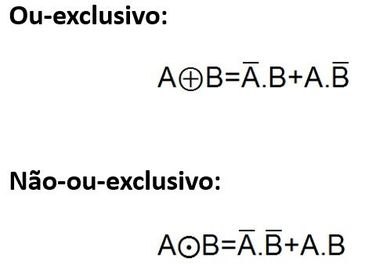

Propriedades da XOR e da XNOR
Image: d4037760-f312-4c6c-87f9-c89fc73a7452 (image/jpg)

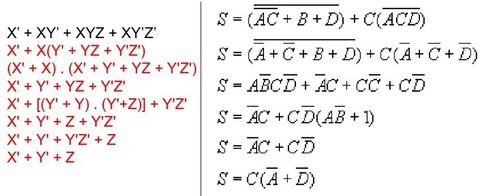

Simplificação Algébrica de Expressões Booleanas
Image: 30bca25a-2e46-4e1a-aa8a-1e38e21a3fe7 (image/jpg)
