Logic Gates

Question	Answer
Logic Gates	Logic gates are digital switches
0 and 1	The zero and ones make up the inputs and outputs. One is true and zero is false.

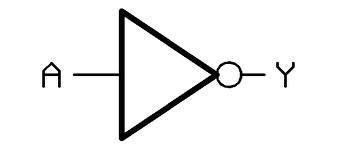

Not Logic Gate	Image: 439a3044-feef-48a8-81f9-2a49ee31fcb7 (image/jpg)

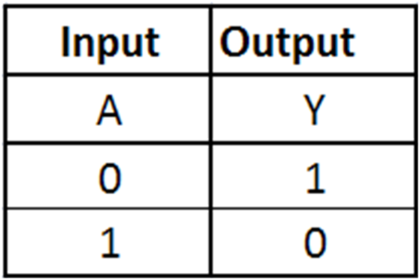

Not Truth Table	The output is the opposite of the input. Image: a7398920-1584-4a3b-b20e-0eebcaa81908 (image/png)

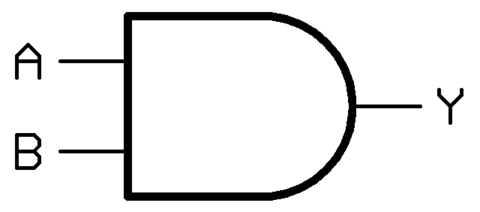

And Logic Gate	Image: 39834fd8-1755-47d7-a5c1-6439c9c45be2 (image/png)
And Truth Table	The output is 1 when both are 1. Image: cafca825-7f8d-40b3-9baa-cd01c9d6bbf0 (image/jpg)

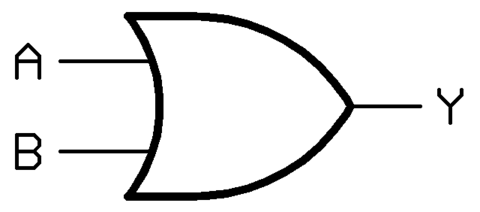

Or Logic Gate	Image: abbce8d9-472f-44d4-af16-071b1744e193 (image/png)

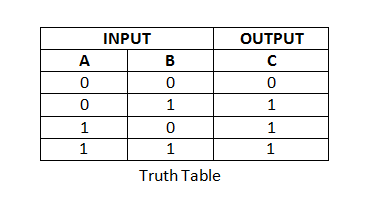

Or Truth Table	Input has to include a 1to produce a 1. Image: 32e9399d-aeea-4f6b-a824-fd057ac8a4a4 (image/png)
Nand Logic Gate	Image: f3075096-0376-4337-854c-a5d17497ad5e (image/png)
Nand Truth Table	Output is 1 if there is at least one 0. (Opposite of And) Image: 25579b4a-e813-474e-b2e2-3efde28dee9a (image/png)

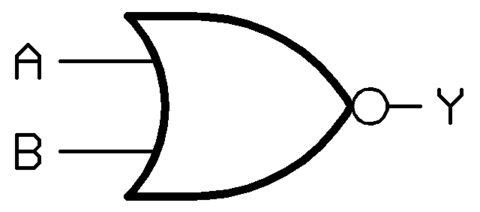

Nor Logic Gate	Image: 9e74c769-5872-435c-9711-e9a68972120a (image/png)
Nor Truth Table	Output is 0 when there is at least one 0. (Opposite of Or) Image: 9b405d6a-ec6f-48e3-833d-284aed768c84 (image/png)

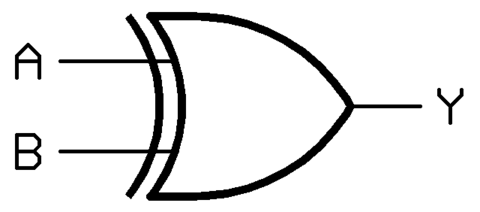

Xor/Eor Logic Gate	Image: ea77aad8-f030-483d-a849-9573d75afe46 (image/png)
Xor/Eor Truth Table	Output is 1 when both numbers are different. Image: e0c0d0f0-d9c9-4953-932f-6b2ad91771c5 (image/png)
