What is the symbol for an ammeter? Yeah this is the thing.
Image: 6763f8c4-b6c1-4f31-9e0b-8c0fc0f9e114 (image/png)
What is the symbol for a resistor? Yeah this is the thing.
Image: 9306bebf-39ec-46d7-b5cb-a411bfd422c5 (image/png)
What is the circuit symbol for a LED? Yeah this is the thing.
Image: ee0a1475-6c4f-4c2a-bae9-6123410f8ed4 (image/png)

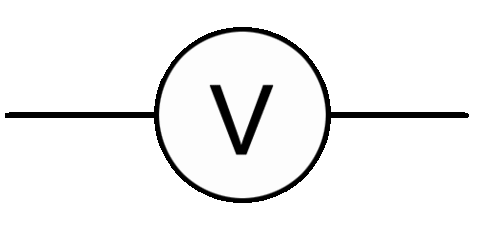

What is the circuit symbol for a voltmeter? Yeah this is the thing.
Image: 83938cc6-846d-4675-b28c-75e278bb5ffa.gif (image/gif)
What is the circuit symbol for a lamp/bulb? Yeah this is the thing.
Image: a0906751-672b-4b48-837c-33eb3c29c35f (image/png)
What is the circuit symbol for a battery? Yeah this is the thing.
Image: 3dcaf123-25c3-4c18-98ee-dd37d4a81ea8 (image/png)

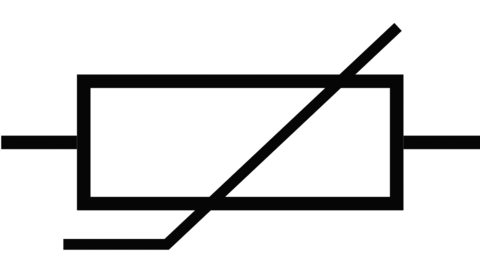

What is the circuit symbol for a thermistor? Yeah this is the thing.
Image: ffe9c2ef-af09-4f06-8ee0-f84ffbdde603 (image/png)
