Resistencia Electronica

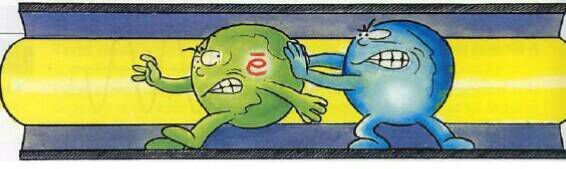

¿QUE ES? Es la oposición al paso de la corriente
Annotations:
Es una oposición al paso de la corriente
Tipos
FIJAS Tienen un valor establecido
VARIABLES Varían a voluntad o por efecto de un fenomeno fisico
PTC
Annotations:
Esta resistencia aumenta al elevarse la temperatura
LDR
Annotations:
ES UNA RESITENCIA QUE VARIA SU VALOR OHMICO AL SER IMPACTADA POR UNA LUZ.
NTC
Annotations:
Su valor de resistencia disminuye si, aumenta la temperatura, este dispositivo tambien es llamado coloquialmente como termistor, al igual que el PTC

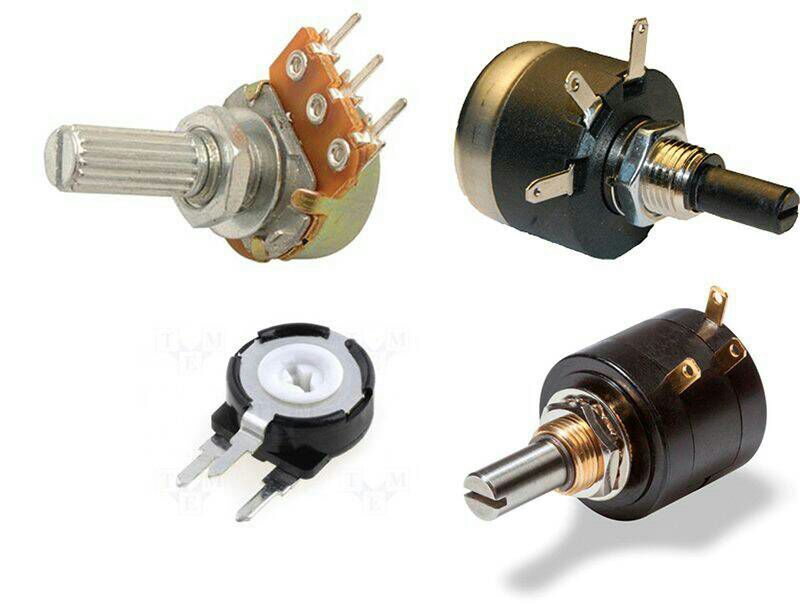

Potenciometros, trimmers
