REAÇÕES DE ELIMINAÇÃO
ÁLCOOL
Annotations:
FUNÇÃO ORGÂNICA OXIGENADA, NA QUAL O GRUPO HIDROXILA(OXIDRILA) ENCONTRA-SE LIGADO A CARBONO SATURADO

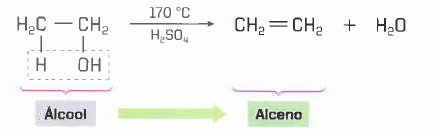

DESIDRATAÇÃO INTRAMOLECULAR
Annotations:
O produto é obtido de uma única molécula.
PRODUZ "ALCENO" (LIGAÇÃO DUPLA ENTRE ÁTOMOS DE CARBONO).
Annotations:
ELIMINAÇÃO DE GRUPOS VIZINHOS DA MOLÉCULA: H e OH

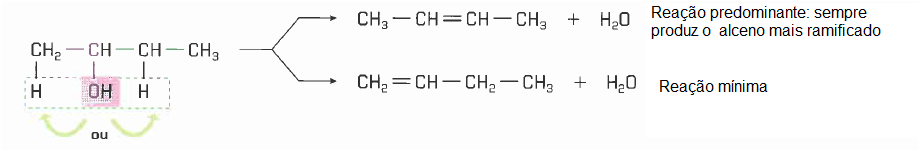

REGRA DE SAYTZEF
"TIRA DE QUEM NÃO TEM"
Annotations:
O hidrogênio que é eliminado com o grupo OH vem do átomo de carbono vizinho e menos hidrogenado.

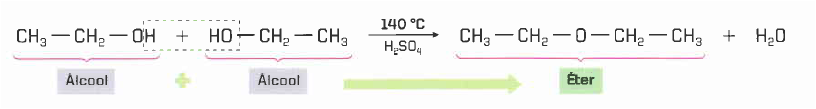

DESIDRATAÇÃO INTERMOLECULAR
Annotations:
O produto é obtido de duas moléculas.
PRODUZ ÉTER
Annotations:
COMPOSTO ORGÂNICO QUE APRESENTA OXIGÊNIO ENTRE CADEIAS CARBÔNICAS (IGUAIS OU DIFERENTES).
SE DÁ ENTRE DUAS MOLÉCULAS DE ÁLCOOL
HALETO ORGÂNICO
Annotations:
COMPOSTOS ORGÂNICOS QUE APRESENTAM UM OU MAIS HALOGÊNIOS (F, Cl, Br OU I) LIGADO(S) A CARBONO.

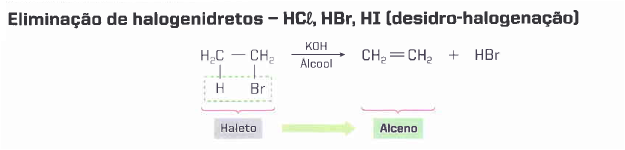

ELIMINAÇÃO DE HALOGENIDRETO (HX): HCl, HBr, HF, HI
Annotations:
O hidrogênio eliminado vem do átomo de carbono menos hidrogenado e vizinho ao carbono que contém o halogênio.
PRODUZ "ALCENO" (LIGAÇÃO DUPLA ENTRE CARBONOS

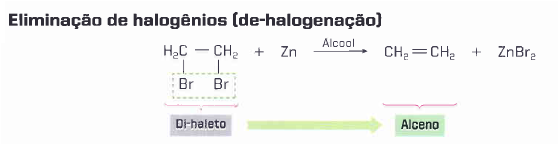

ELIMINAÇÃO DE HALOGÊNIOS
QUANDO OS ÁTOMOS OU GRUPOS DE ÁTOMOS ESTÃO AFASTADOS
Annotations:
FORMAÇÃO DE COMPOSTO CÍCLICO. É MAIS FÁCIL A FORMAÇÃO DE ANÉIS COM CINCO OU SEIS ÁTOMOS DE CARBONO.

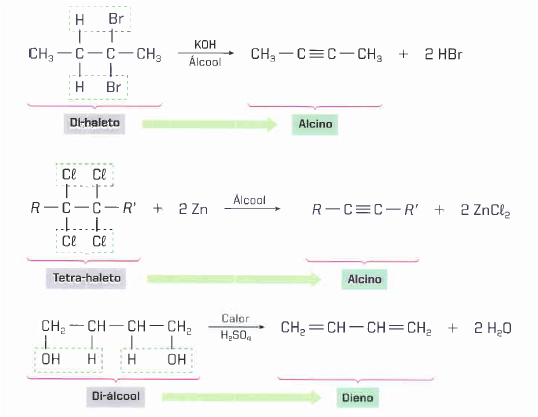

MÚLTIPLAS A ELIMINAÇÃO (OCORRE DUAS VEZES NA MESMA MOLÉCULA)
Media attachments
34601ff0-b932-448d-811e-df1d40641163 (image/png)
c8a36dc1-5252-4cc9-96a8-d6e7123355da (image/png)
442d5da2-1f57-4a45-8527-c5fd8fe422ed (image/png)
5902983a-3e3b-4408-8f8b-3f718c6401b2 (image/png)
b11558fa-b970-482e-8d05-e703392f8866 (image/png)
801922c0-99aa-47f0-b6e4-e2bd9635c12d (image/png)
e2f56eeb-1c71-4aa7-8fdf-fbb9a62c07d3 (image/png)
