CIRCUITOS COMBINACIONALES

Formado por
1. Compuertas logicas
  1. AND
  2. OR
  3. NOT
  4. NAND
  5. NOR
  6. Con determinado número de entradas y salidas
Clasificados en
1. LOGICOS
  1. Conversor de código
  2. Generador/ Detector de paridad
  3. Mutiplexor y Demultiplexor
  4. Codificador y Decodificador
  5. Comparador
2. ARITMETICOS
  1. Sumador
3. LOGICOS ARITMETICOS
  1. Unidad aritmético lógica

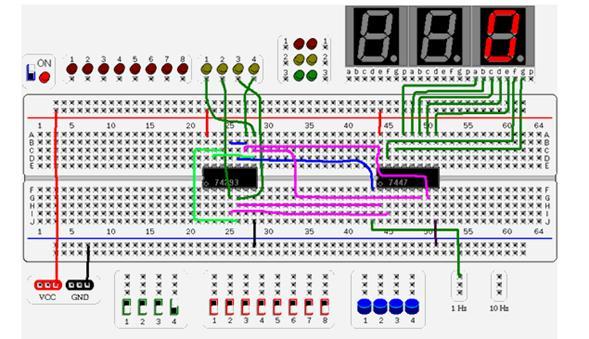

Hechos desde el protoboard
Hechos manualmente
