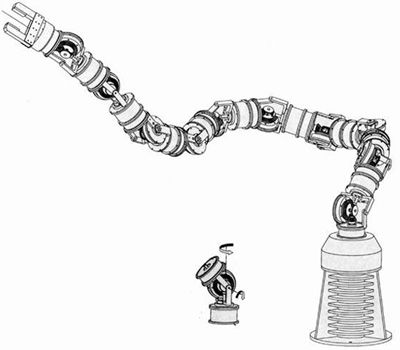

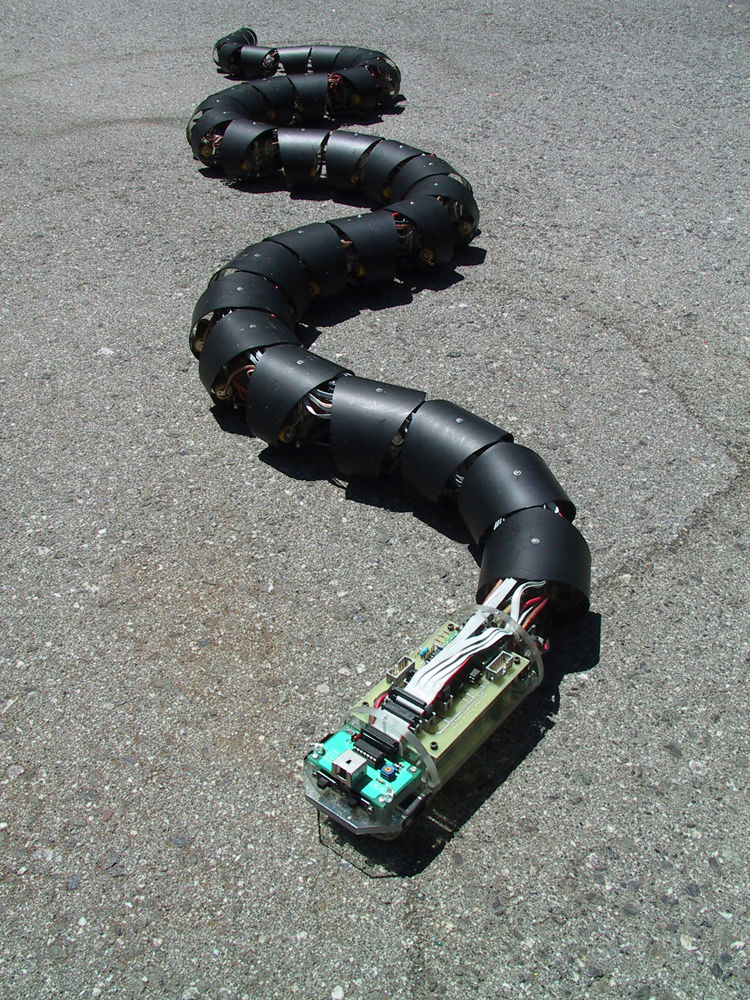

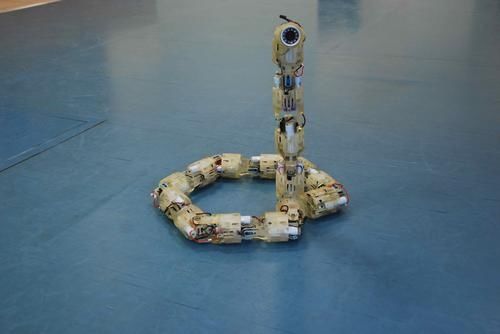

HYPER-REDUNDANT ROBOT
Description
Mapa mental sobre robot hyper redundante de 30 grados de libertad
No tags specified
róbotica industrial
robot hyper-redundante
universidad manuela beltrán
Mind Map by
Johann Andrés Argüello CRUZ
, updated more than 1 year ago
More
Less
Created by
Johann Andrés Argüello CRUZ
over 8 years ago
23
0
0
Resource summary
HYPER-REDUNDANT ROBOT
CHARACTERISTICS
Are not anthropomorphic
Highly linkage structure
Maneuvering in confined spaces
Peristaltic waves generated
Grasp Objects in a Tentacle-Like Fashion
IMPLEMENTATION
30 DOF Robot VGT
10 Identical 3 DOF Truss Modules
3 Prismatic Joints
D.C. Servo Motors and Lead Screw Drives
Linear Potentiometer
Casters Attached to the Fixed Elements of the Modules
can be separated into two robot manipulators 15 DOF
System is Controlled by an a Multiprocessing Computer
Heurikon 68030
mechanical advantage properties
Gregory S. Chirikjian Joel W. Burdick
APPLICATIONS
Medical Endoscopy
Capturing and Despinning Free Floating Satellites
Complex Whole Arm Manipulation Experiments
Emergency Response Vehicles in Collapsed Buildings
Sensor Placement in Complicated Geological Formations
DISADVANTAGES
Precise Positioning Tasks
Not Provide Backbone Torque
MORPHOLOGY
Continuous Morphology
Deformable Continuous
Discrete Morphology
Rigid Links
Cascades of Parallel Platform Modules
Variable Geometry Trusses (VGT)
UNIVERSIDAD MANUELA BELTRÁN ING. ELECTRÓNICA
JOHANN ANDRÉS ARGÜELLO CRUZ ROBÓTICA INDUSTRIAL
