MEDIOS DE TRANSMISIÓN ALÁMBRICOS
Lineas de par trenzado
Tipos

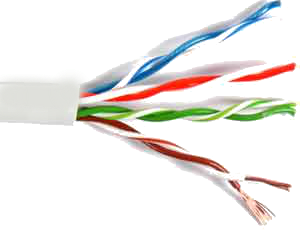

UTP
Características: - Fácil Instalación - Ancho de Banda 10 Mbps - Uso restringido a 100m
STP
Características: - Conectores especiales - Ancho de banda 500 Mbps - Calibre 1.5 pulgadas

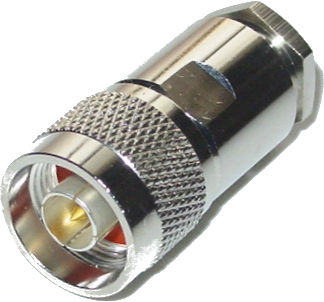

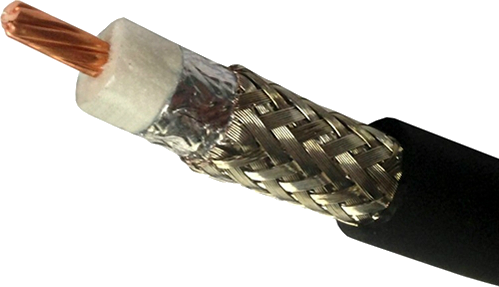

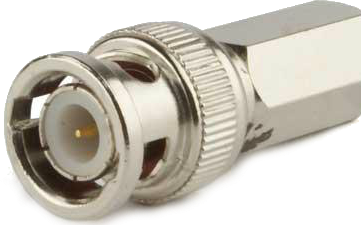

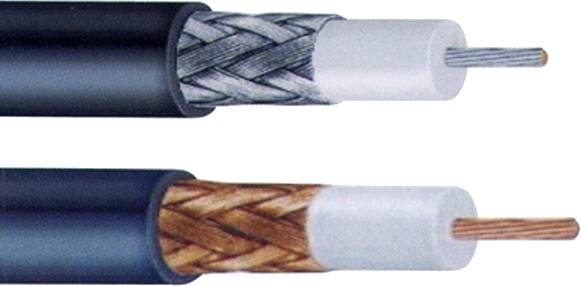

Cable Coaxial
Clases
50 ohmios (RG-58)
75 ohmios (RG-8)
Tipos
PVC
Es el mas común, fiable y se puede instalar facilmente en cualquier lugar
PLENUM
Estos materiales son resistentes al fuego. Es más caro y menos Flexible que el PVC.
Fibra óptica
Tipos
Multimodo
Conjunto de leds los cuales envían varios haces de luz
Monomodo
Envía un solo frente de onda de Luz
