antenas y propagaciòn_1

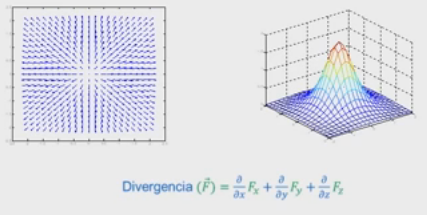

Divergencia
se aplica a Vectorial
Indica salida =+
Indica entrada= -
Producto escalar entre op. nabla y campo vectorial

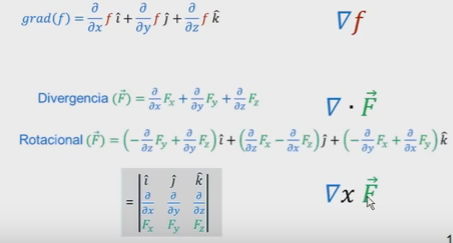

Gradiente
Aplica a campo escalar
bidimensional
Tridimensional
Resultado es campo vectorial
Dirección = aumento
magnitud=valor del aumento
Multiplicaciòn entre Op. Nabla x Funciòn escalar

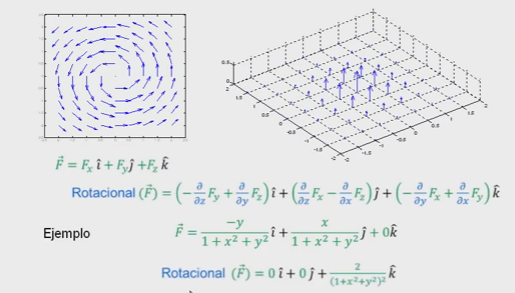

Rotacional
Indica sentido del giro
Producto escalar entre Op. Nabla y campo vectorial
Teorema de Poynting
Velocidad de Transferencia de energia
Disipación de potencia en Calor
Conservaciòn de Energía Electromágnetica
Amplitudes de los campos E y H
Flujo hacia exterior del Vector de Poynting
energía electromagnètica
Trabajo Electrico
energía Ciética

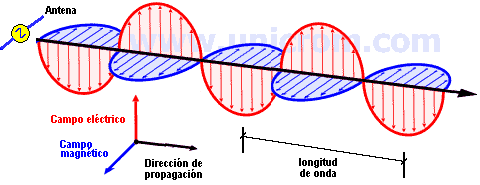

Transporte de energia
Vector Poynting
No Paralelo a la superficie
Indica Sentido de Propagaciòn
Potencia
Emitida y Discipada
