MECHANISMS

Output force and motion
Input of force and motion
Classification
1. Transmission of motion
  1. Rotary transmission
    1. Friction wheels
    2. Pulleys with belts
    3. Interlocking gears
    4. Sprockets with chains
  2. Linear transmission

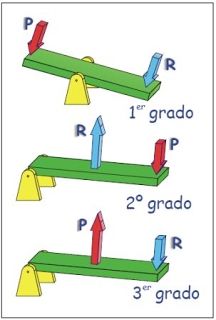

    1. Lever
      1. Class 1: The fulcrum is between the force and the resistante
      2. Class 2: The resistence is between the fulcrum and the force
      3. Class 3: The force is between the fulcrum and the resitance
    2. Pulley

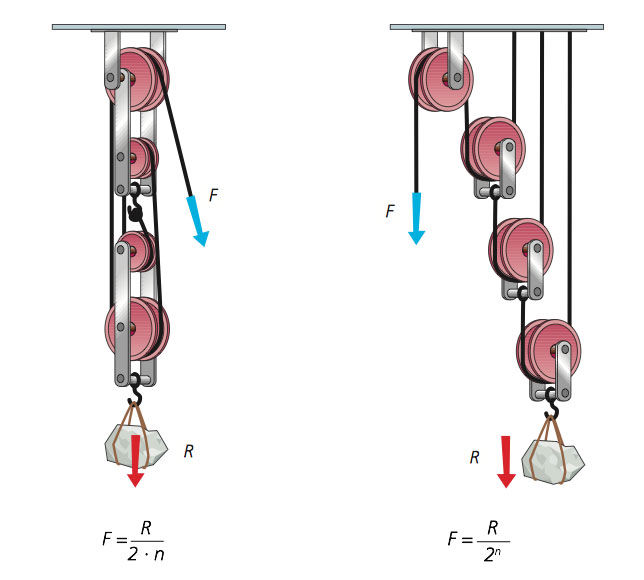

      1. Compound pulley systems
        Vertical system
        Horizontal system
        Exponential system
      2. Fixed pulley

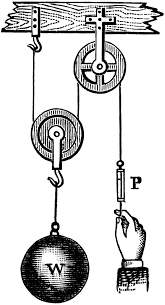

      3. Movable pulley
    3. Block and tackle
2. Motion control
  1. Direction control

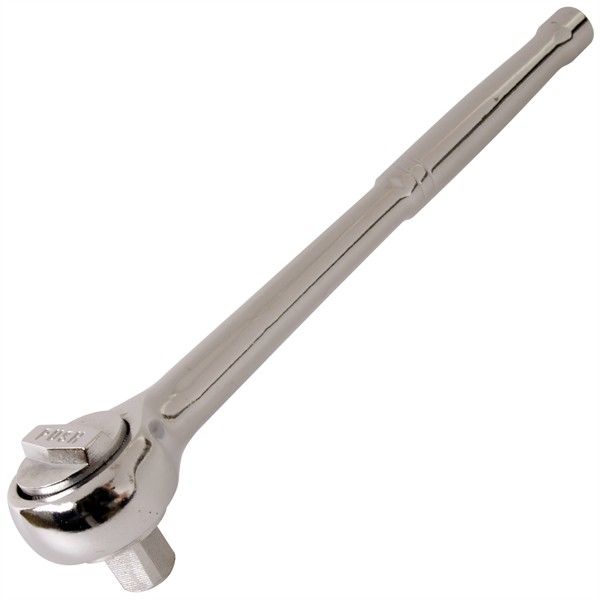

    1. Ratchet
    2. Reversible ratchet
  2. Speed reduction

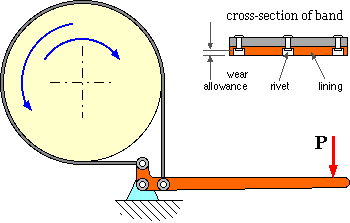

    1. Brake
    2. Bicycle brake system
3. Connection
  1. Linkage

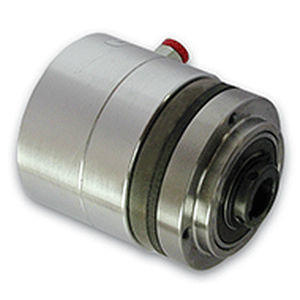

    1. Friction clutch
    2. Jaw clutch
  2. Support
    1. Plain bearing
4. Energy accumulation
  1. Absortion / Dissipation
    1. Spring
5. Transformation of motion
  1. Rotary-linear
    1. Wheel
    2. Rack and pinion
    3. Nut and bolt
  2. Reciprocating rotary-linear

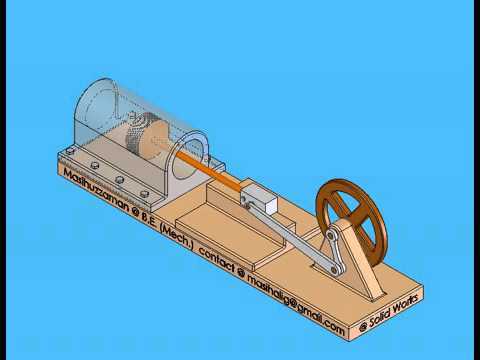

    1. Crank and rod
    2. Crankshaft
    3. Cam
    4. Eccentric cam
