RNA synthesis
RNA types
3 main types of RNAs:
mRNA: messenger RNA, codes for proteins.
3-5% total RNA.
tRNA: transfer RNA, participates to translation.
rRNA: ribosomal RNA, major constituent of ribosomes.
There are 4 main rRNAs.
Noncoding RNAs serve structural and enzymatic functions

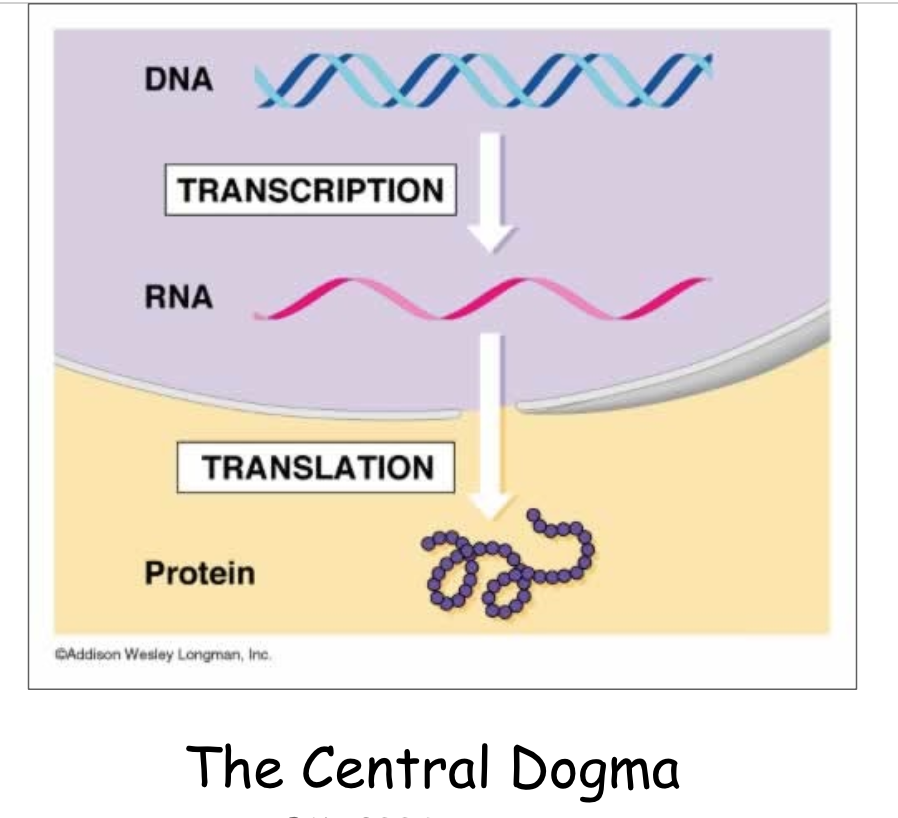

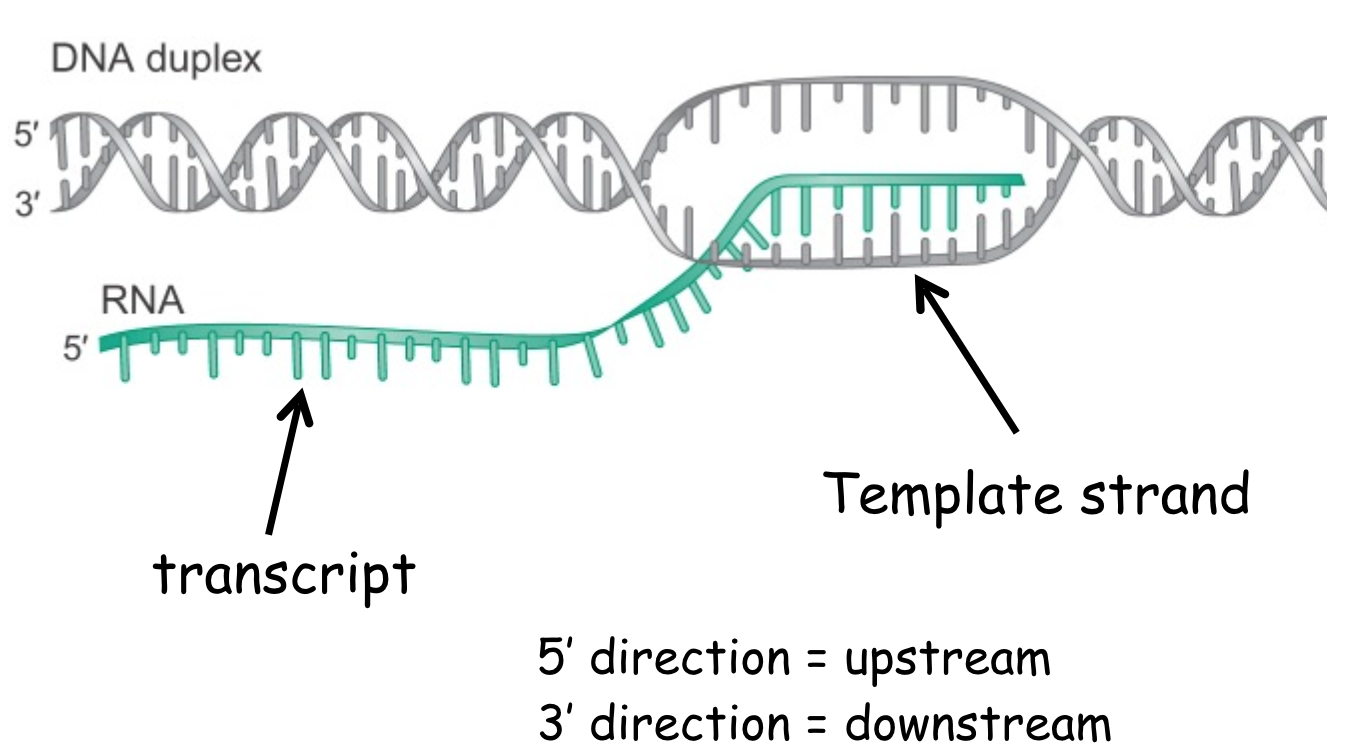

Transcription
the process of RNA synthesis from a DNA template.

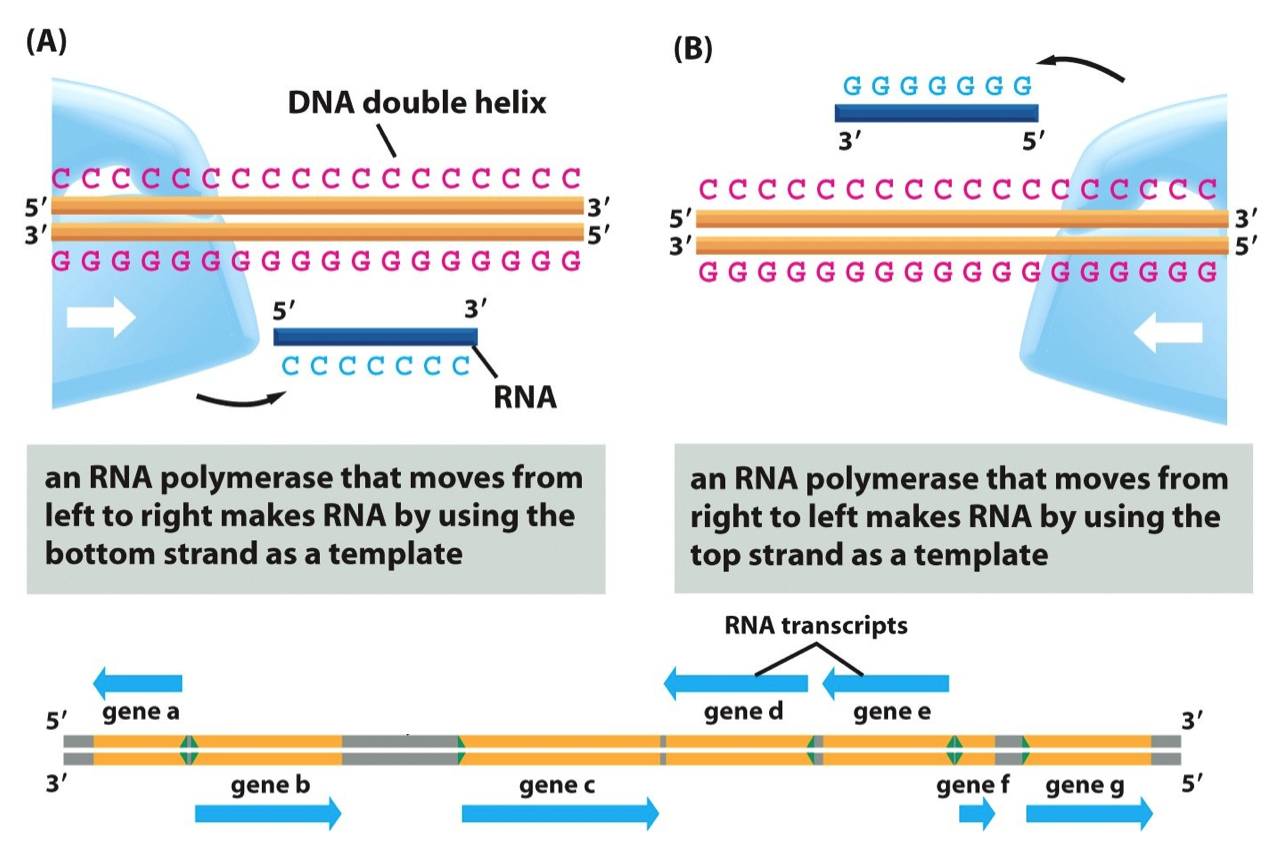

Genes can be on either strand of the DNA
But rarely overlap

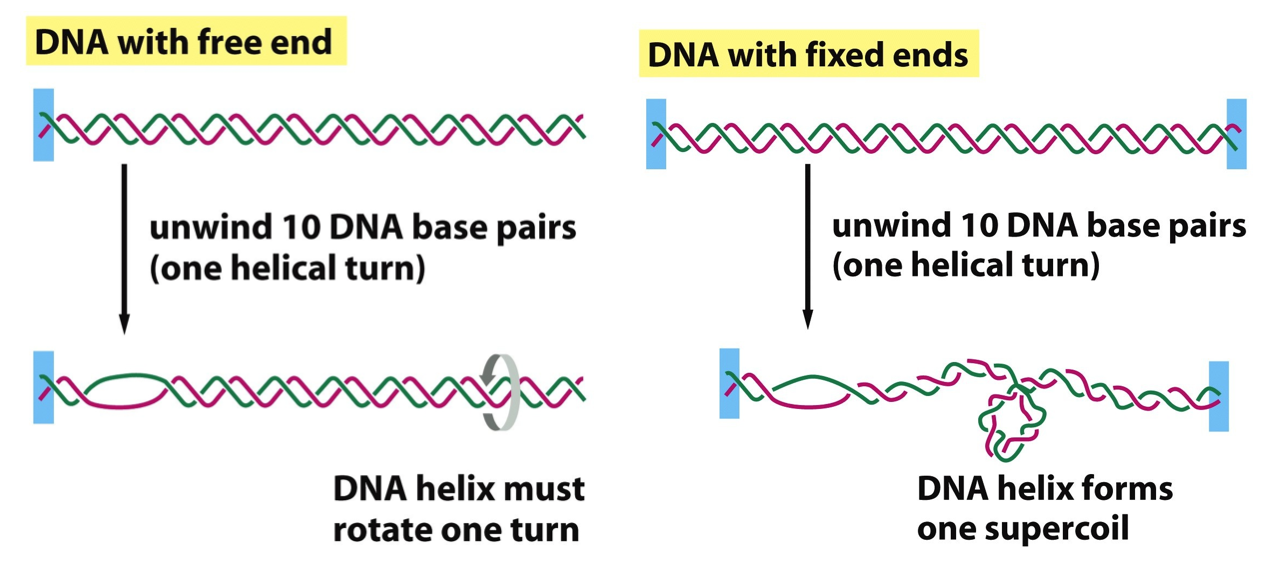

Transcription creates supercoiling
Topoisomerases release supercoils to allow progression

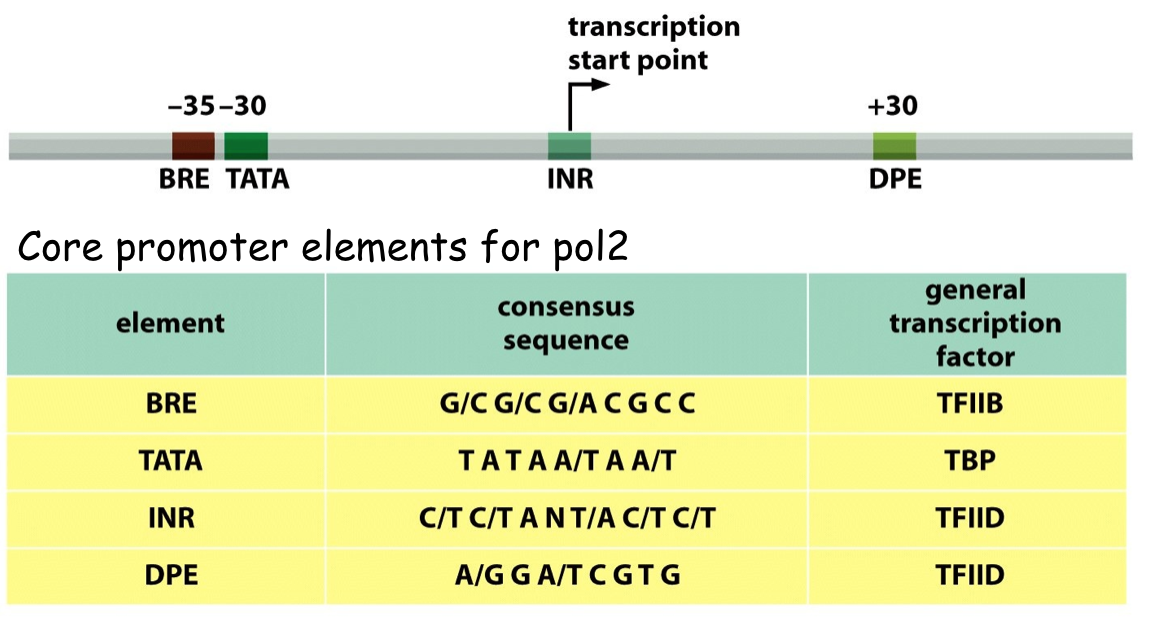

Transcription for a gene starts at its promoter

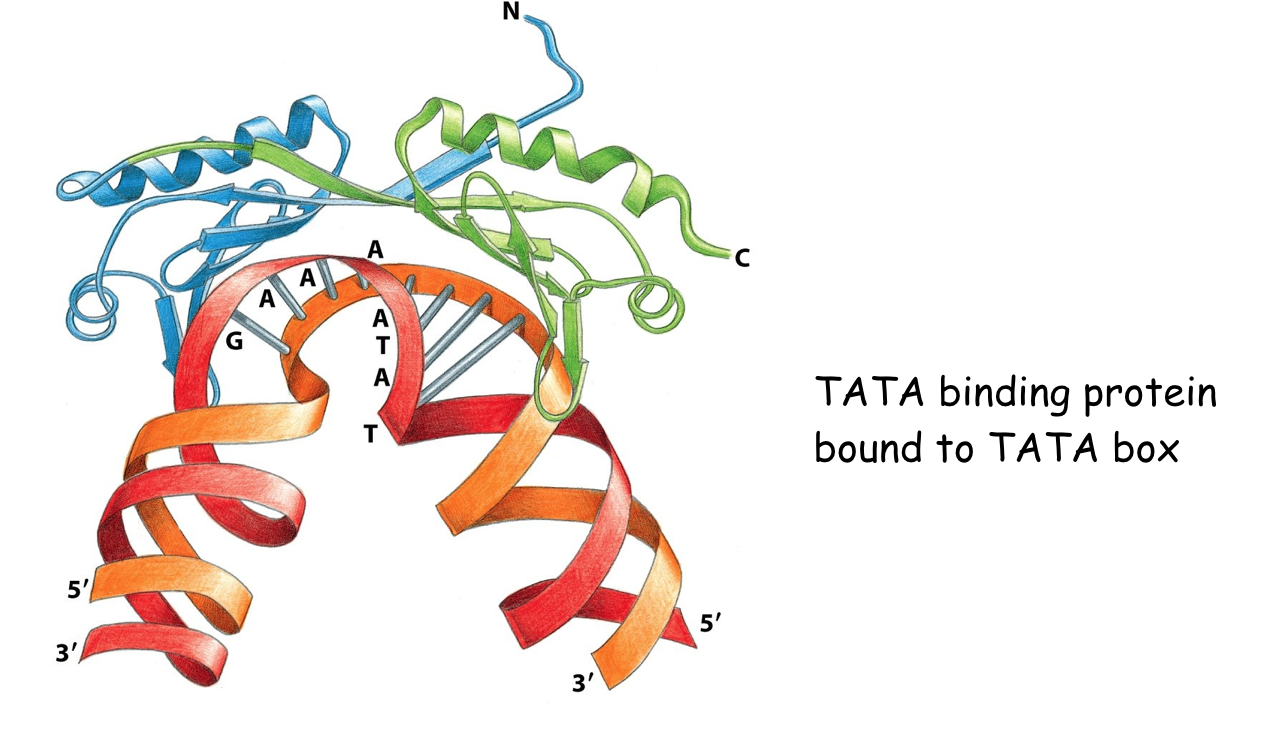

Sequences in the DNA tell RNA polymerases where to start

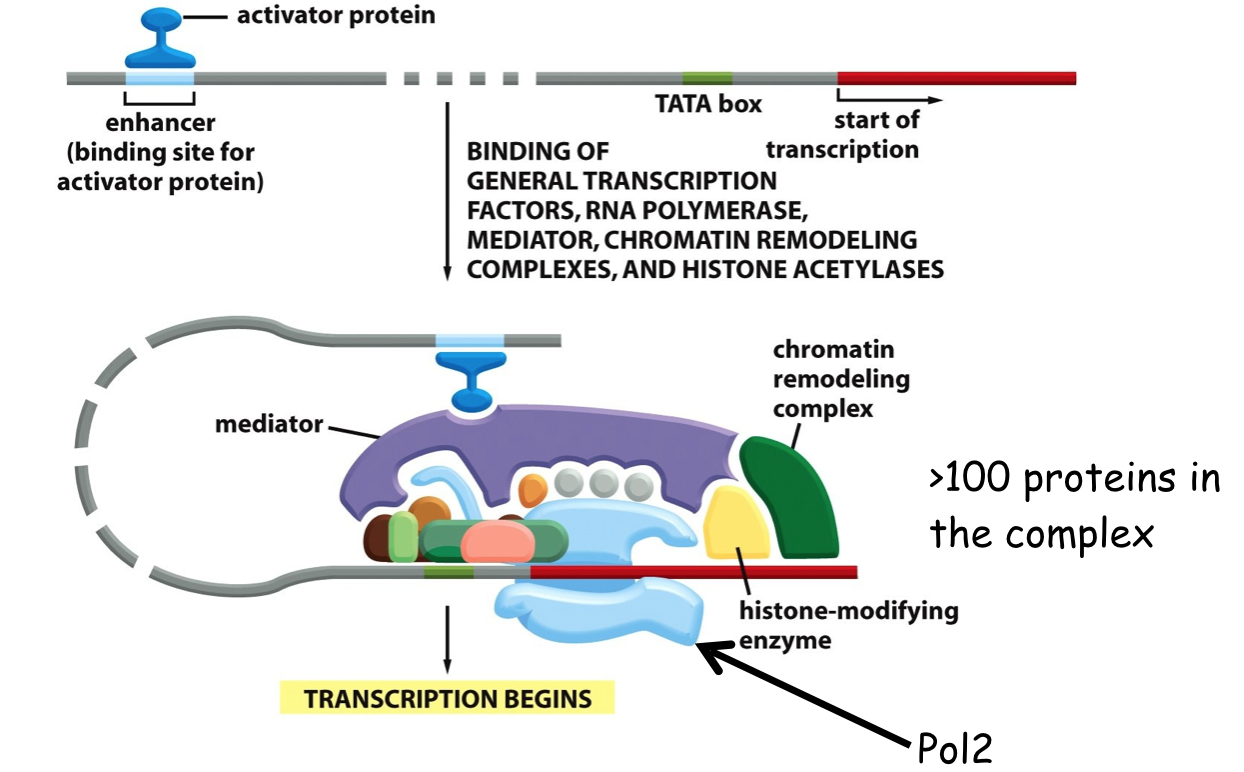

Activators are also required to initiate transcription
General transcription factors versus regulatory transcription factors
Many of these proteins bind directly to the DNA
RNA structure

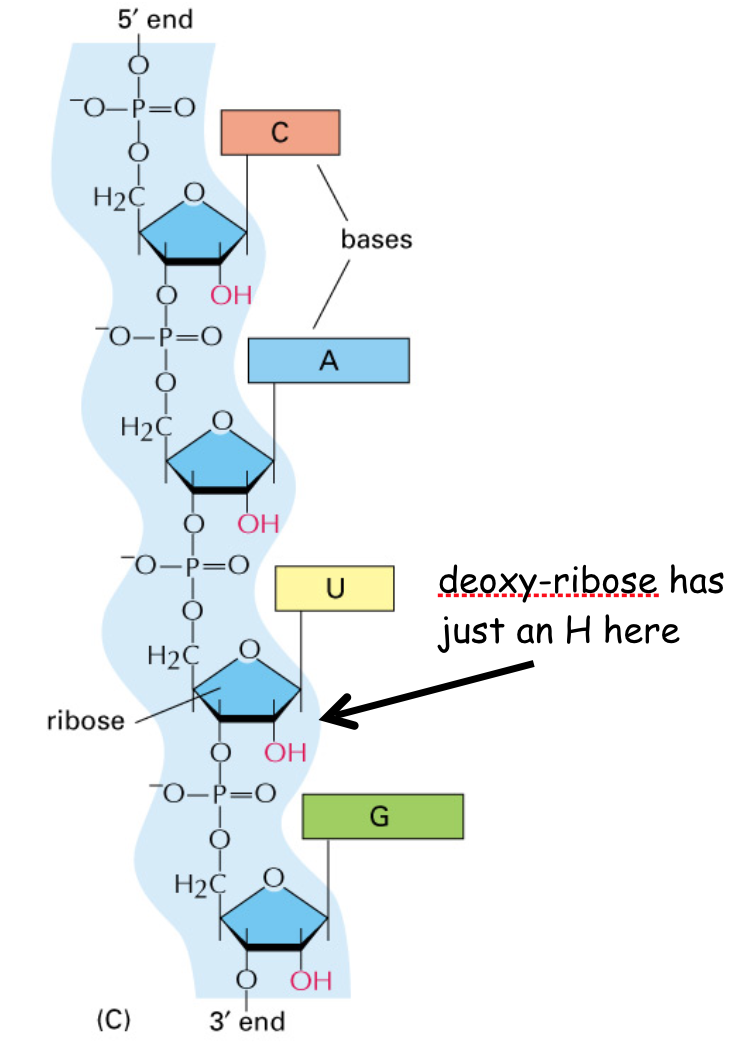

Primary structure of RNA
RNA = Ribonucleic Acid
4 major differences between DNA and RNA:
Contains ribose (instead of deoxy-ribose)
Contains U instead of T
RNA is unstable
Synthesized as a single strand
Secondary structure of RNA
Pairing between bases: A = U, G = C
Also can rarely have non Watson-Crick pairing, such as G = U.

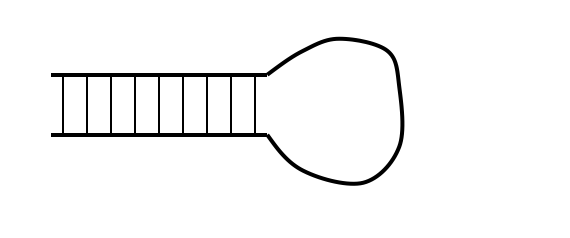

Formation of stem-loop secondary structures by intramolecular base pairing

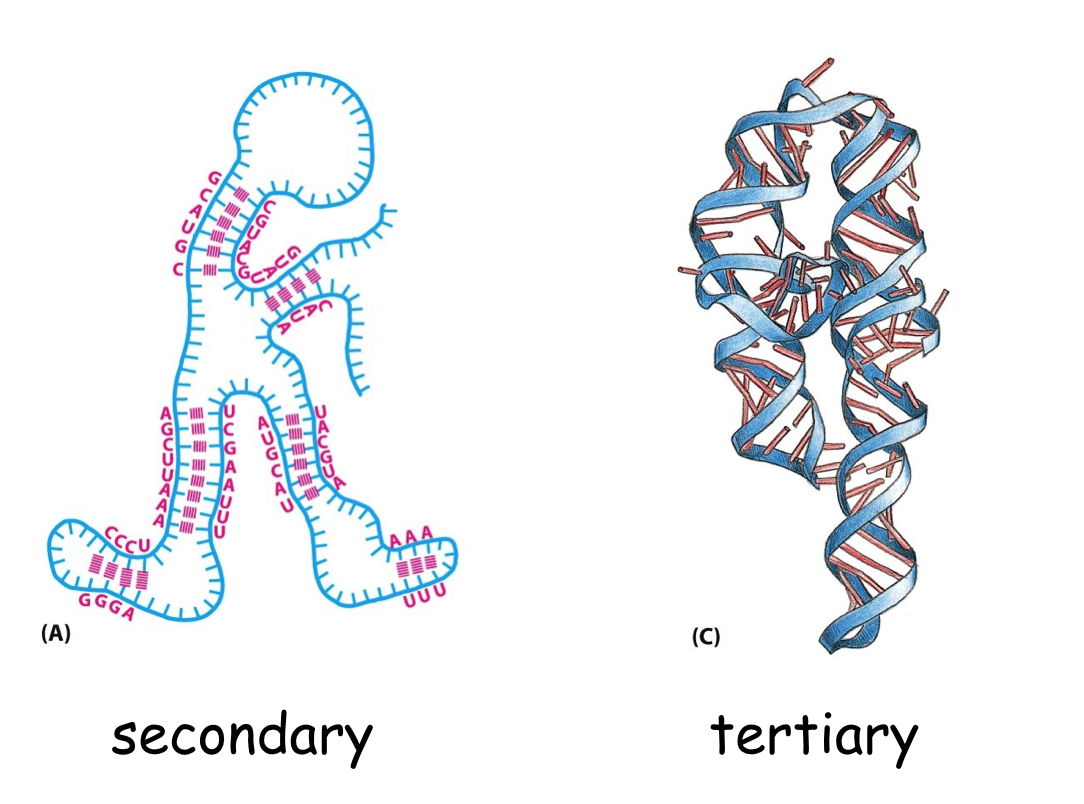

Secondary and tertiary structure of RNA
Tertiary structure is the folding of a molecule in three dimensions.
Transcription enzymes:RNA polymerases
RNA polymerases are enzymes performing RNA synthesis. There are 3 types of RNA polymerases in eukaryotes:
RNA polymerase I
ribosomal RNA
RNA polymerase II
protein-encoding genes
RNA polymerase III
tRNA, small nuclear RNA, and 5S rRNA

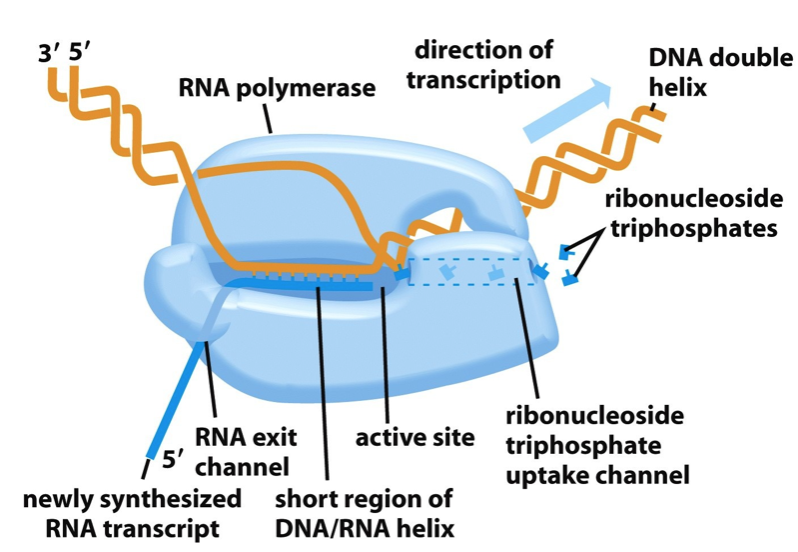

Transcription requires RNA polymerase
Different from DNA synthesis:
No primer needed to get started
Only one strand of DNA is used as the template
Transcript does not remain bound to template
Higher error rate
Multiple RNA Pol bind on the same gene

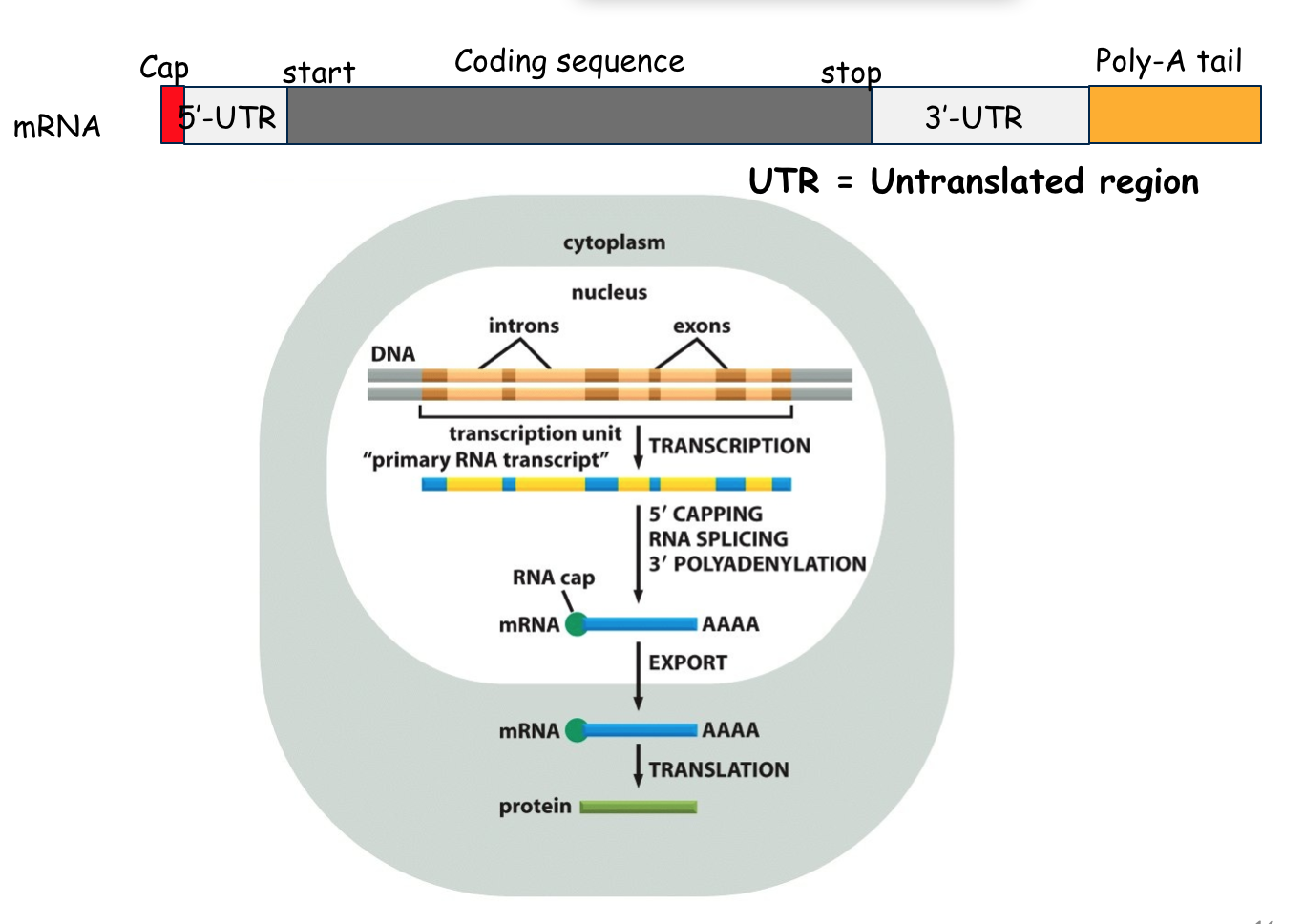

RNA processing
splicing of introns
eliminates non coding regions of mRNAs to generate mature mRNA for protein synthesis.
capping of 5’ end
necessary for stability, binding of mRNA to ribosomes and initiation of translation.
polyadenylation of 3’ end
part of the termination process (addition of poly-A tail). Determine mRNA stability, helps mRNA nuclear export and translation.

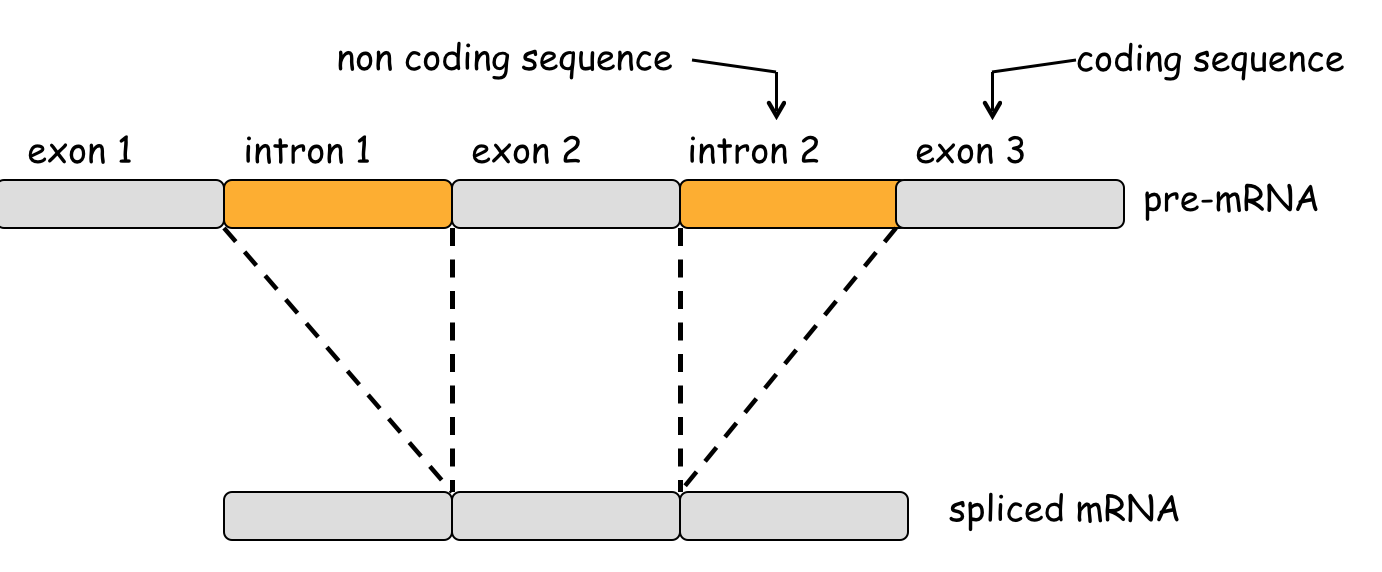

Splicing
Specific to eukaryotes transcription.
Introns are present in the DNA and pre-mRNA, not in mRNA
Some mRNA can be spliced in more than one way
alternative splicing

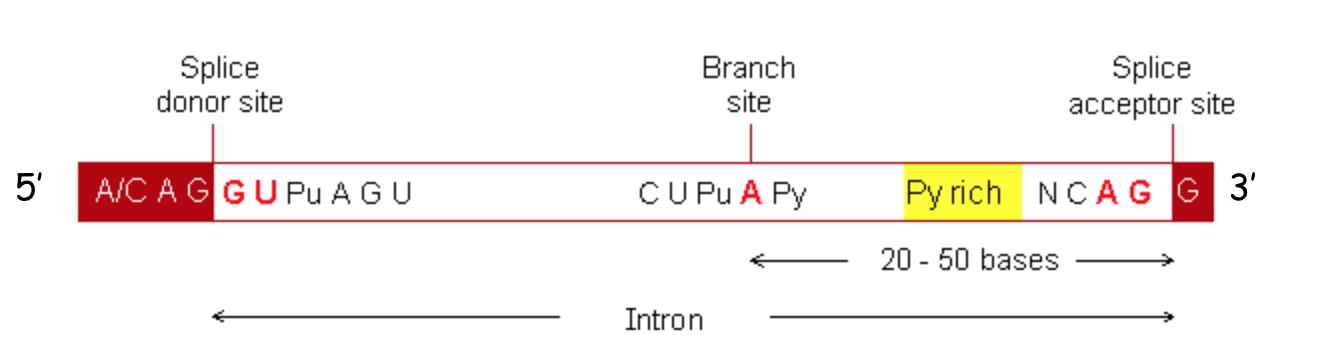

Splice donor and acceptor sites
2’ OH of branch site A attacks phosphodiester bond on donor site G.
Cleavage at the donor site. Formation of lariat.
3’ OH of donor site G attacks phosphodiester bond on acceptor site G freeing the lariat.
Lariat is degraded

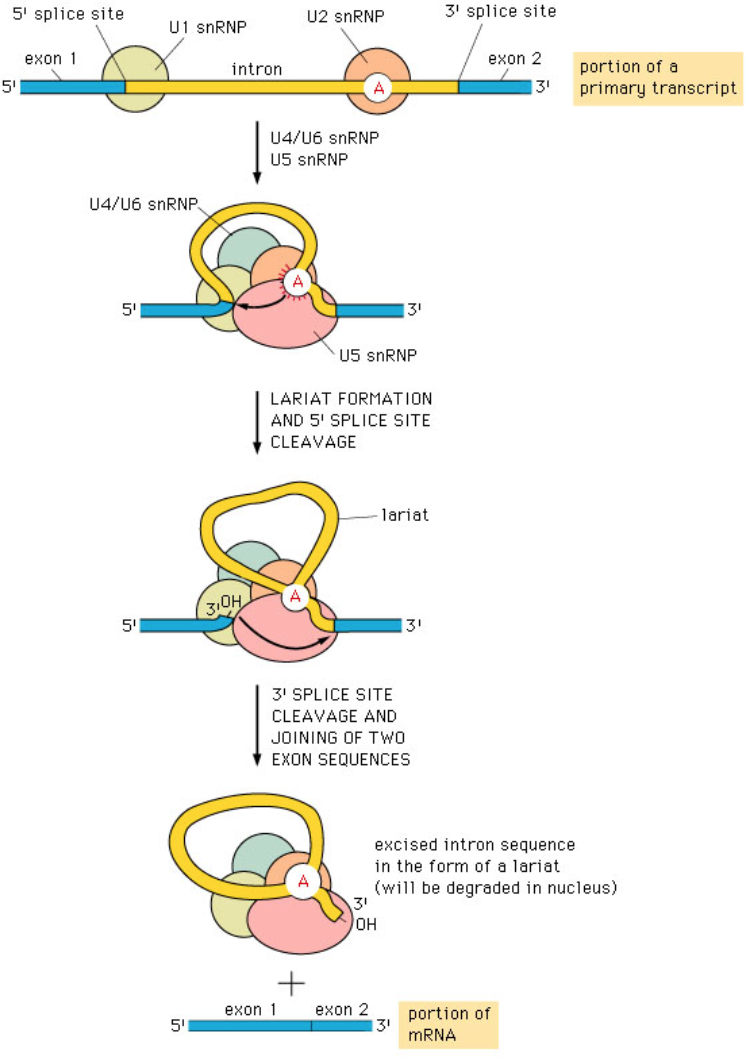

mRNA splicing is performed by the spliceosome
Spliceosome: nuclear complex made of about 150 proteins + 5 RNAs.
Three functions
recognize 5’ donor and branch sites
bring sites together
catalyzes RNA cleavage
SnRNP = SnRNA + proteins
snRNAs are small nuclear RNA: U1, U2, U4, U5 and U6.

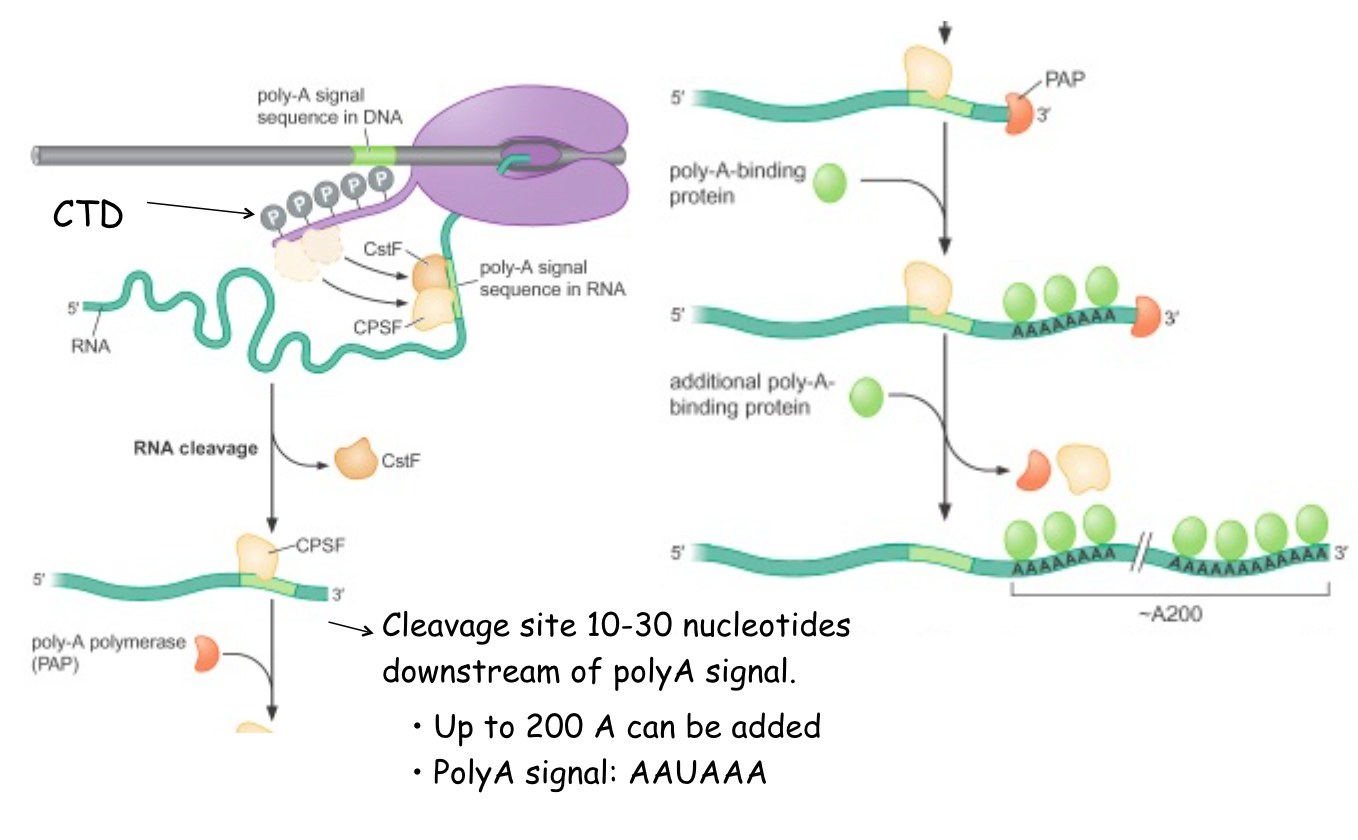

Polyadenylation
CstF: Cleavage stimulating factor
CTD: Pol II C-terminal domain
CPSF: Cleavage and Polyadenylation specific factor
PAP: polyadenylate polymerase
