GCSE PHYSICS- ELECTRISITY
Description
Mind Map on GCSE PHYSICS- ELECTRISITY, created by elliot.pillin on 28/12/2014.
No tags specified
gcse physics electrisity
Mind Map by
elliot.pillin
, updated more than 1 year ago
More
Less
Created by
elliot.pillin
over 9 years ago
70
0
0
Resource summary
GCSE PHYSICS- ELECTRISITY
Series
Current is the same across all of the components
Voltage is shared across all of the components
Parallel
Current is shared between all of the components
Voltage is the same across all of the components
Measuring Voltage and current
Measuring Voltage
A voltmeter is used to measure Voltage
A voltmeter has to be set up in parallel to measure the Potential difference of a bulb
Measuring Current
A ammeter is used to measure current
An ammeter has to be connected in series to measure the Amps of a bulb or other electrical components
Components
Bulb (lamp)

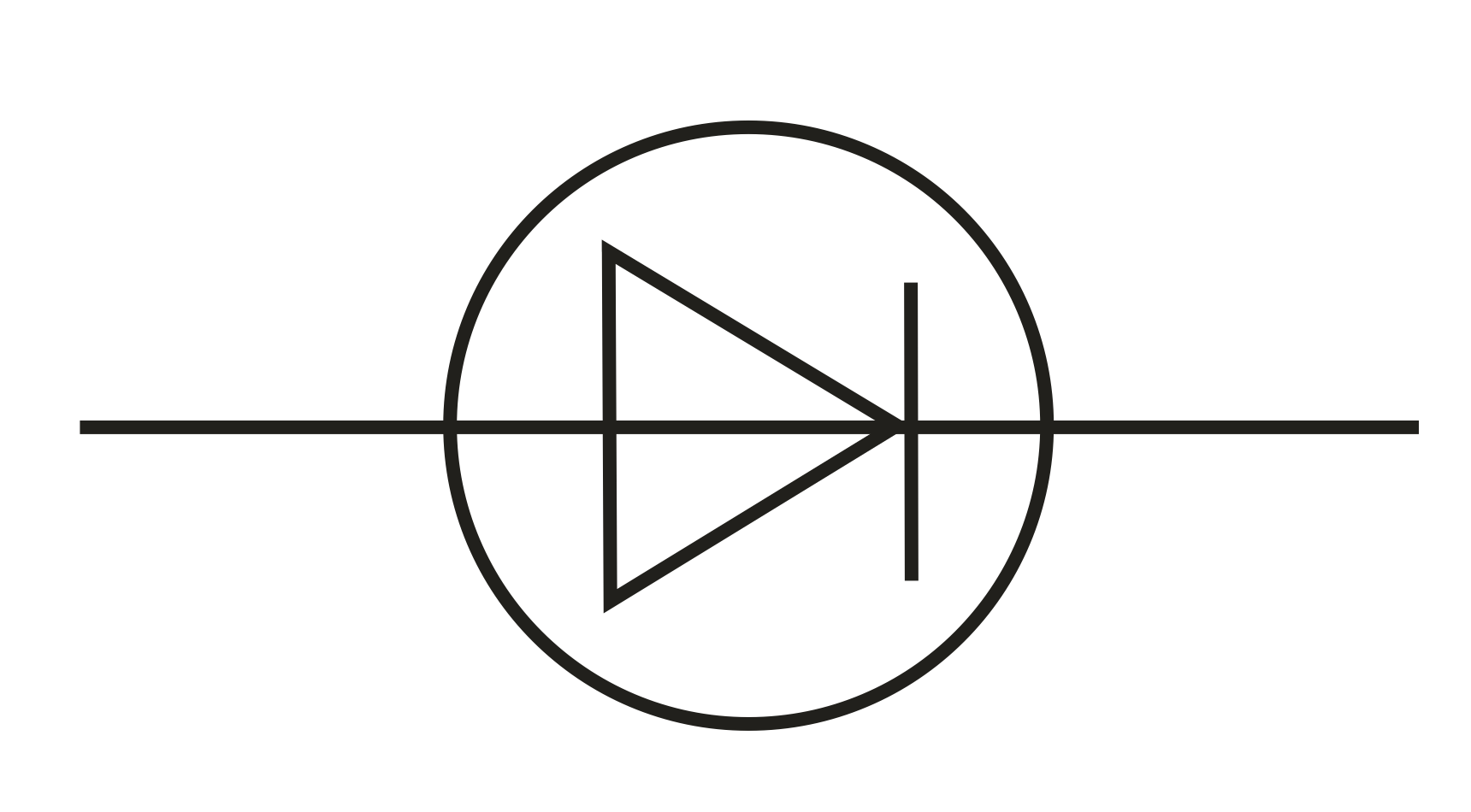

Diode

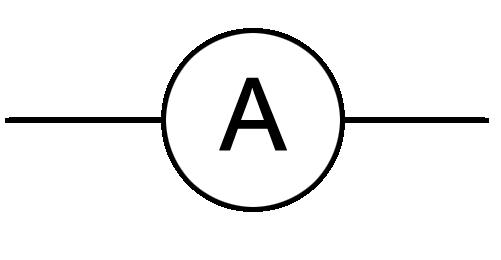

Ammeter
Resistor

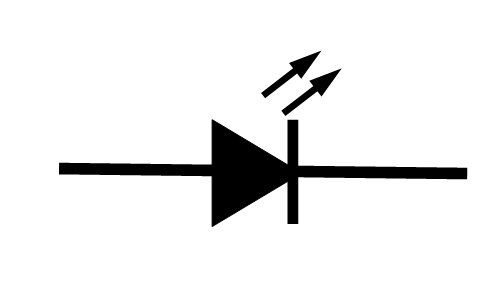

LED (Light emitting diode)

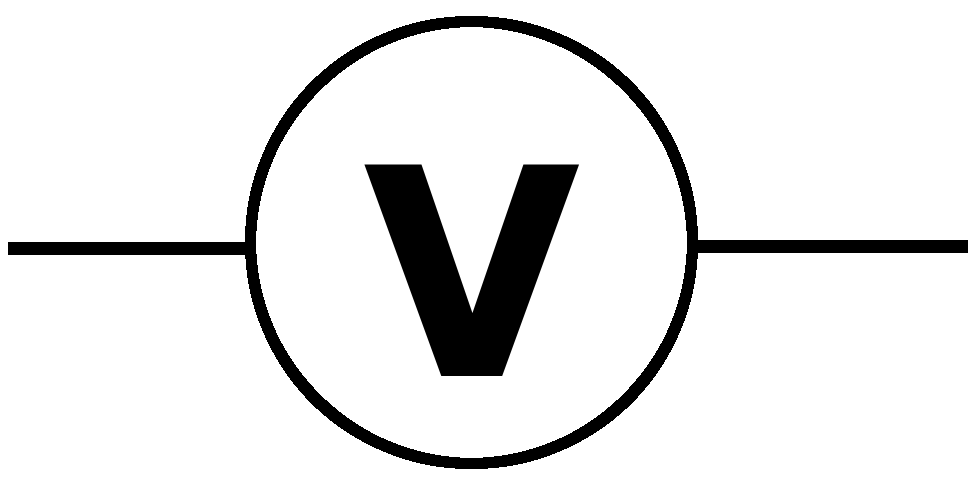

Voltmeter
Cell
Battery
Variable resistor

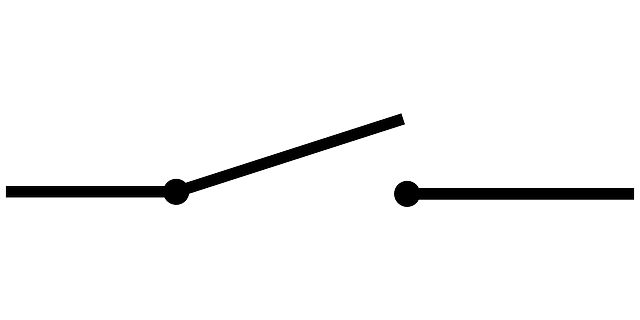

Switch

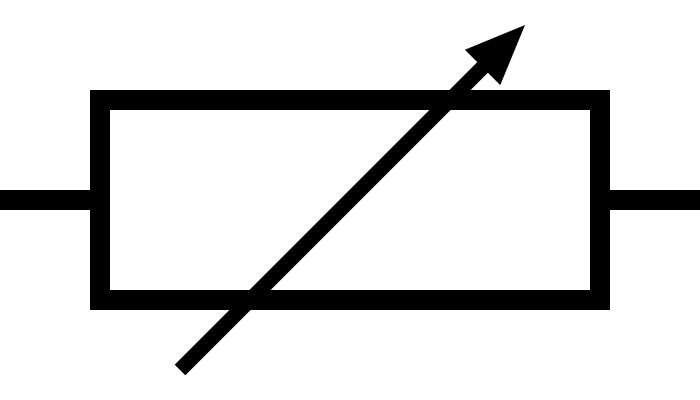

Fuze
Media attachments
d95f1a37-ab8e-4396-8be9-b8b144144e7e (image/png)
4a088da2-e176-4009-9ff5-413cb5855df8 (image/jpg)
71020bbb-ba3c-4e1f-8e3f-5826b288b7ce (image/png)
40c04dd6-6175-47a3-98d5-abc392fd99b3 (image/png)
7de7c614-0af2-4952-8a8f-c539d962fbb1 (image/jpeg)
6dc16982-e80f-41ed-b28e-43aa9c896165 (image/png)
18a8eeff-af0c-410d-b7e2-703c2ebcceda (image/png)
ae2339f7-dded-41e2-aac2-7d98490a9fda (image/png)
8d4ac2d8-dde6-42ab-91ea-62be47642bdd (image/png)
107194bb-2a75-47ae-8ee0-dc78dcf9ee3d (image/png)
