Mind map of the entire FP1 module including equations and diagrams

Resource summary

FP1
  1. Complex Numbers
    1. i= √(-1)
      1. i^2= -1
        1. i^odd= ± i
          1. i^even= ± 1
          2. Dividing
            1. "realise" the denominator
              1. if you have x/(a+bi)
                1. times by (a-bi)/(a-bi)
                  1. sames as x1
                    1. complex conjugate
                      1. if z = a+ib
                        1. z*=a-ib
                          1. zz*= real no.
                            1. difference of 2 squares
                  2. make bottom a real no.
                2. modulus and argument
                  1. argand diagram
                    1. vectors
                      1. magnitude
                        1. modulus, r or |z|
                          1. length
                            1. pythag
                        2. direction

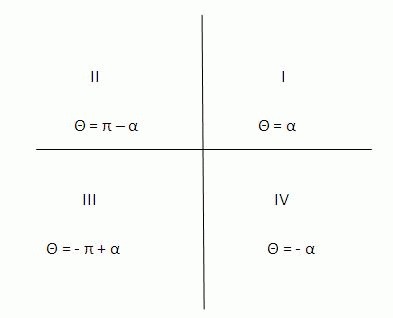

                          1. argument, Arg(z)
                            1. angle between vector and x-axis
                              1. tanθ= y/x
                      2. modulus-argument form
                        1. if z=x+iy
                          1. by trig
                            1. x=rcosθ
                              1. y=rsinθ
                              2. z=r(cosθ+i sinθ)
                          2. in equations

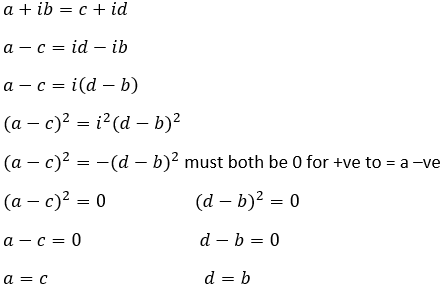

                            1. equating real and imaginary
                              1. if a+ib=c+id
                                1. a=c and b=c
                                2. find √(15+8i)
                                  1. let √(15+8i)= a+ib
                                    1. 15+8i=(a+ib)^2
                                      1. etc.
                                3. quadratic roots
                                  1. if z is a root
                                    1. so is z*
                              2. Co-ordinate Systems

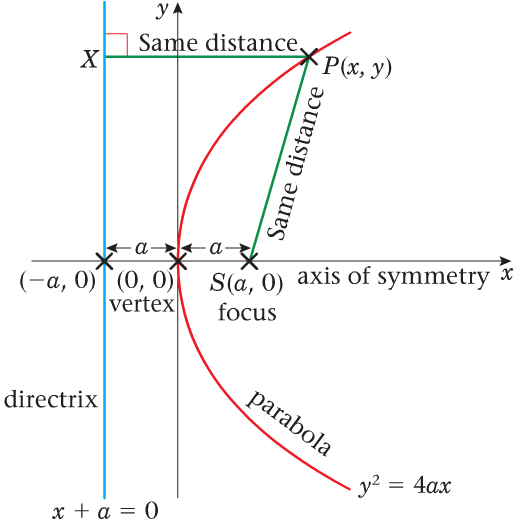

                                1. Parabola
                                  1. equation
                                    1. cartesian
                                      1. y^2=4ax
                                      2. parametric
                                        1. x=at^2
                                          1. y=2at
                                    2. Rectangular Hyperbola
                                      1. equations
                                        1. cartesian
                                          1. xy=c^2
                                          2. Parametric
                                            1. x=ct
                                              1. y=c/t

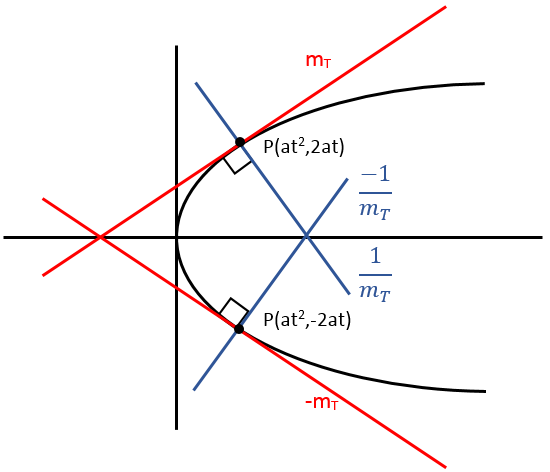

                                        2. tangents and normals
                                          1. m(t)=dy/dx
                                            1. m(n)=-1/m(t)
                                              1. m(n)x m(t)=-1
                                            2. y-y1=m(x-x1)
                                          2. Proof by Induction
                                            1. method
                                              1. prove true for n=1
                                                1. assume true for n=k
                                                  1. show true for n=k+1
                                                    1. state true for all n≥1 where nϵ Ζ+
                                              2. types
                                                1. series
                                                  1. swap k for n
                                                    1. NOT r
                                                  2. divisibility
                                                    1. consider f(k+1)-mf(k)
                                                      1. show difference is divisible by a
                                                        1. therefore f(k+1) is also divisible by a
                                                          1. remember rules of indicies
                                                            1. a^n x a^m= a^n+m
                                                              1. (a^n)^m= a^nm
                                                      2. Matrices
                                                        1. Sub step 2 into step 3
                                                          1. M^k+1
                                                            1. same as M(M^k)
                                                        2. recurrence relationships
                                                          1. show true for
                                                            1. n=1 AND n=2
                                                              1. for step 3
                                                                1. use recurrence formula for U k+1
                                                                  1. sub U k in
                                                        3. write your target!
                                                        4. Series
                                                          1. General formulae
                                                            1. r

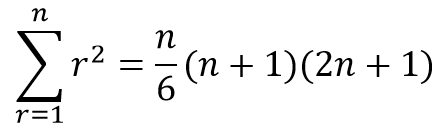

                                                              1. r^2

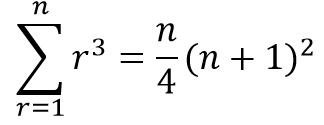

                                                                1. r^3
                                                                  1. 1

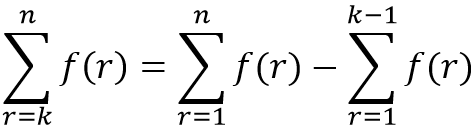

                                                                  2. sum between 2 limits
                                                                    1. sum up to top limit
                                                                      1. minus sum up to bottom limit -1
                                                                    2. to show a summation formula = ....
                                                                      1. take out common factors
                                                                    3. Numerical Methods
                                                                      1. show root in interval [a,b]
                                                                        1. find f(a) and f(b)
                                                                          1. change in sign
                                                                            1. root between a and b

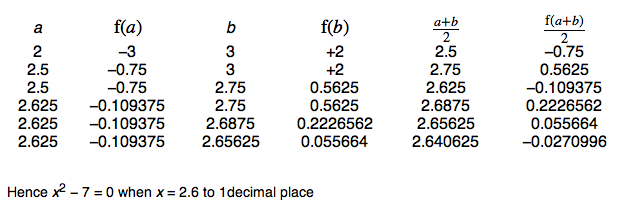

                                                                        2. Interval bisection
                                                                          1. next estimate
                                                                            1. midpoint
                                                                              1. (a+b)/2
                                                                                1. between a and b
                                                                                  1. where f(a) -ve and f(b) +ve

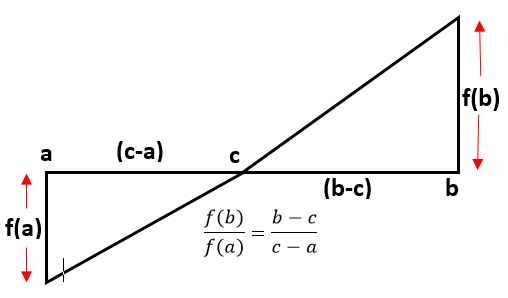

                                                                            2. linear interpolation
                                                                              1. if root lies in [a,b]
                                                                                1. use similar triangles
                                                                                  1. or formula
                                                                                    1. not in data book

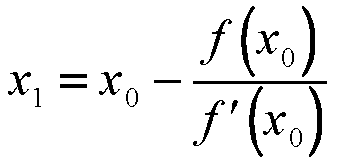

                                                                                2. Newton Raphson
                                                                                  1. find f'(x)
                                                                                    1. write out f(a) and f'(a)
                                                                                    2. in formula book
                                                                                      1. doesn't work @ turning point
                                                                                        1. f'(x)=0
                                                                                  2. Matrices
                                                                                    1. multiplying

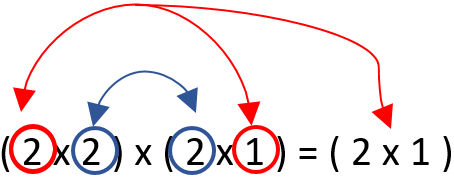

                                                                                      1. only multiply if
                                                                                        1. no. of columns of 1st matrix
                                                                                          1. same as no. of rows of 2nd
                                                                                            1. product dimensions
                                                                                              1. same no. rows as 1st matrix
                                                                                                1. Same no. of columns as 2nd
                                                                                          2. not comutative
                                                                                            1. AB≠BA
                                                                                          3. dimensions
                                                                                            1. (nxm)
                                                                                              1. n= rows
                                                                                                1. m=columns

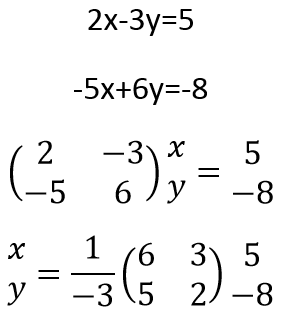

                                                                                                  1. simultaneous equations
                                                                                            2. Transformations
                                                                                              1. vectors
                                                                                                1. position vector
                                                                                                  1. from origin
                                                                                                    1. can be written (x,y)
                                                                                                      1. translation vector
                                                                                                        1. from given point
                                                                                                2. linear
                                                                                                  1. linear expressions
                                                                                                    1. point (0,0) unchanged
                                                                                                      1. reflections
                                                                                                        1. y-axis
                                                                                                          1. x-axis
                                                                                                          2. y=x
                                                                                                            1. y=-x
                                                                                                          3. enlargement
                                                                                                            1. scale factor a
                                                                                                            2. rotation
                                                                                                              1. 180°
                                                                                                                1. 90°
                                                                                                                  1. clockwise
                                                                                                                    1. anticlockwise
                                                                                                                    2. 45°
                                                                                                                      1. clockwise
                                                                                                                        1. anticlockwise
                                                                                                                2. inverse matrix
                                                                                                                  1. transforms back to original

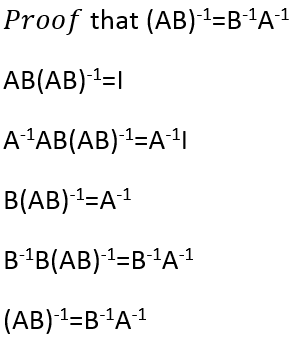

                                                                                                                3. Inverse
                                                                                                                  1. A^-1
                                                                                                                    1. AA^-1=I
                                                                                                                      1. I= identity matrix
                                                                                                                        1. determinant
                                                                                                                          1. ad-bc
                                                                                                                            1. singular if =0
                                                                                                                              1. transform shape
                                                                                                                                1. straight line
                                                                                                                                  1. 0 area
