Joining Woods

Description

Summary of the different ways in which woods can be joined
Niamh Walsh
Mind Map by Niamh Walsh, updated more than 1 year ago
Niamh Walsh
Created by Niamh Walsh almost 9 years ago
18
0
0

Resource summary

Joining Woods
  1. Traditional wood joints
    1. Finger

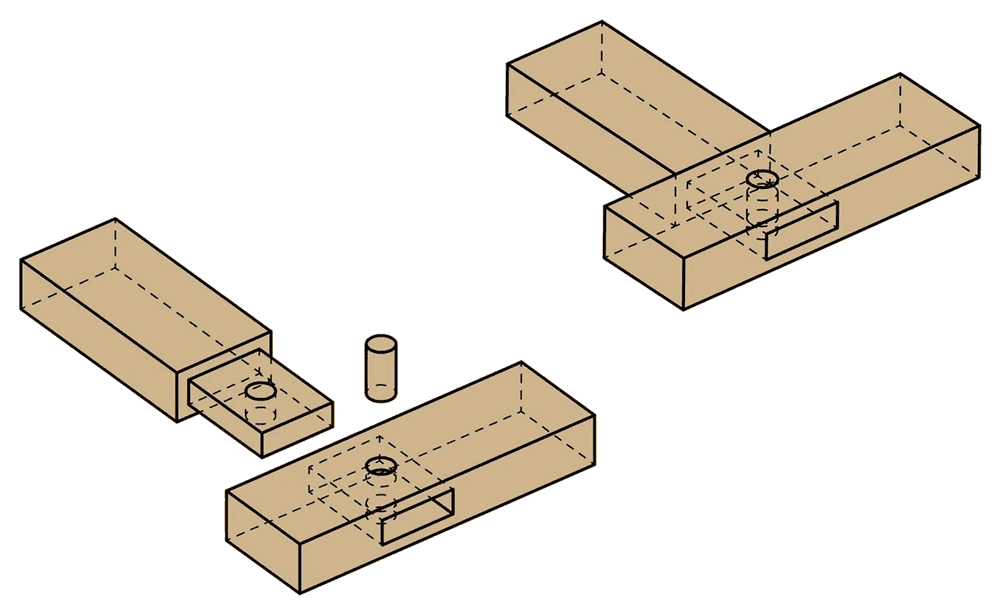

      1. Mortice and tenon

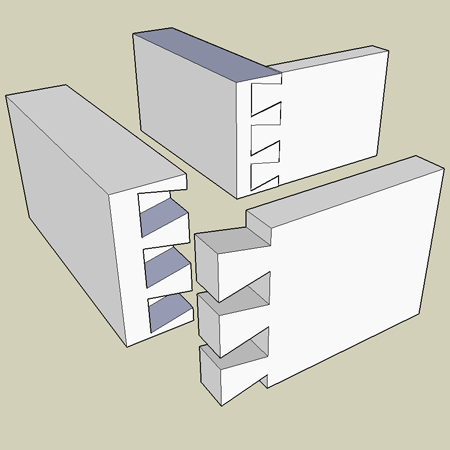

        1. Through dovetail

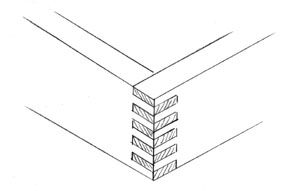

          1. Lapped dovetail

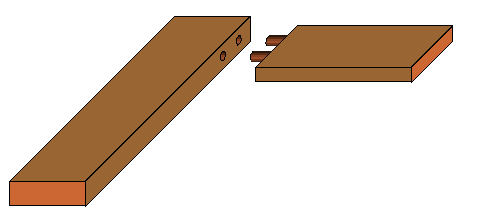

            1. Dowel joint

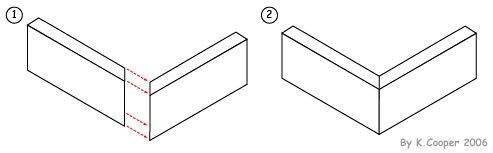

              1. Mitre
              2. Flat pack/self assembly
                1. Knock-down fittings
                  1. Barrel nut and bolt
                    1. Cam fitting
                      1. T-nut and bolt
                        1. Corner plate
                          1. Screw socket
                            1. Chipboard fastener
                              1. Block connector
                              2. Hinges
                                1. Screws
                                2. Adhesive - generally PVA
