Visual Problems: Problems with Structures of the Eye

Description

(The Human Eye) Mind Map on Visual Problems: Problems with Structures of the Eye, created by Veronica_88 on 20/10/2013.
Veronica_88
Mind Map by Veronica_88, updated more than 1 year ago
Veronica_88
Created by Veronica_88 over 10 years ago
16
0

Resource summary

Visual Problems: Problems with Structures of the Eye

Annotations:

  • Should talk about focusing light on the retina before mentioning the visual problems
  • Refraction: necessary to focus light rays
  1. Cornea
    1. Astigmatism
      1. Define: A visual defect caused by the unequal curving of the cornea (it is not spherical)

        Annotations:

        • It can be one or more of the refractive surfaces of the eye  - But it's usually the cornea
        1. Test: Fan chart for astigmatism
          1. Some lines [horizontal or vertical] might appear sharp, while others appear out of focus
            1. Solution: lenses that have different amounts of focusing power (focal points) in the horizontal and vertical planes
        2. Highly curved
          1. Powerful refractive surface in the eye

            Annotations:

            • Has a higher refractive index than air
        3. Aqueous Humor
          1. Glaucoma
            1. Lose your peripheral vision
              1. Caused by high pressure of the watery fluid
              2. Help refract light
              3. Crystalline Lens

                Annotations:

                • Create a table between myopia and hyperopia
                1. Emmetropia
                  1. The condition of having no refractive error

                    Annotations:

                    • In other words, the refractive power of the eye is perfectly matched to the length of the eyeball
                  2. Presbyopia
                    1. A condition where you have a decreased ability to focus on near objects
                      1. Aka. loss of near vision due to insufficient accommodation
                      2. Means "old sight"
                        1. it's inevitable

                          Annotations:

                          • Because lens become sclerotic (harder) & the capsule that encircles the lens (enabling it to change shape) loses its elasticity.
                      3. Myopia
                        1. Short-sighted or nearsightedness

                          Annotations:

                          • Remember the Imperssionist painter (Cezanne) - the image from far away looks blurry.
                          1. When light entering the eye is focused in front of the retina; and when the eyeball is too long for the optics
                            1. Therefore distant objects cannot be seen sharply
                            2. Solution: Negative (minus) lenses

                              Annotations:

                              • They diverse the light rays before they enter the eye
                            3. Hyperopia

                              Annotations:

                              • Where accommodation is needed to see near objects clearly,
                              1. Long-sighted or farsightedness
                                1. When light entering the eye is focused BEHIND the retina; and the eyeball is too short for the optics
                                  1. Solution: Positive (plus) lenses

                                    Annotations:

                                    • They converge the light rays before they enter the eye
                                  2. Cataracts
                                    1. An opacity (loss of transparency) of the crystalline lens.
                                      1. Caused by the irregularity (unevenness) of the crystallins

                                        Annotations:

                                        • Crystallins: are a class of proteins that make up the lens
                                      2. Consequence: interferes with vision

                                        Annotations:

                                        • by absorbing and scattering more light than the normal lens does
                                        1. Forms of cataracts
                                          1. Congenital cataracts

                                            Annotations:

                                            • cataracts present at birth
                                            1. Through old age

                                              Annotations:

                                              • Most are discovered after the age of 50.
                                              1. The prevalence of cataracts increases with age

                                                Annotations:

                                                • By age 70 almost everyone has some loss of transparency
                                          2. Alter the refractive power by changing its shape
                                            1. Accommodation
                                              1. The process by which the eye changes its focus

                                                Annotations:

                                                • Therefore altering its refractive power
                                                • The fatter the lens is, the more power it has.
                                                1. Because the lens changes shape

                                                  Annotations:

                                                  • [There's a table on pg 3 of my notes] When the lens becomes fatter -> focus on near objects
                                                  1. Accomplished through contraction of the cilliary msucle

                                                    Annotations:

                                                    • Lens are attached to the ciliary muscle through tiny fibres (“zonules of Zinn”)
                                                    1. Goal: to bring objects into focus
                                              2. Retina

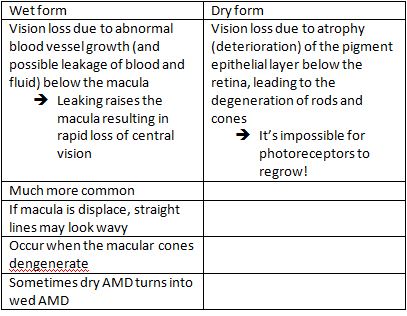

                                                1. Age-Related Macular Degeneration
                                                  1. There are two forms of it
                                                    1. Wet Form

                                                      Annotations:

                                                      • One that involves blood
                                                      1. Dry form

                                                        Annotations:

                                                        • One that involves rods and cones; not blood vessels
                                                      2. A disease associated with aging that affects the macula
                                                        1. "age-related"
                                                          1. usually occurs in older adults, starting at the age of 50
                                                          2. Macula
                                                            1. is the central part of the retina;
                                                              1. That includes the fovea
                                                                1. Fovea
                                                                  1. Contains the highest concentration of cones
                                                                    1. Has no rods
                                                                    2. Is the portion of the retina that
                                                                      1. Produces the highest visual acuity; and
                                                                        1. Therefore "sees" the world most clearly
                                                                          1. E.g. Able to identify objects, read and to inspect fine detail
                                                                        2. Serves as the point of fixation
                                                                        3. A dented region in the retina; behind the pupil
                                                                          1. a small pit near the centre of the macula
                                                                      2. That has a high concentration of CONES
                                                                  2. Consequence: A blind spot in the visual field (due to a loss of cones in the macula

                                                                    Annotations:

                                                                    • Called a scotoma
                                                                    1. Therefore, AMD destroys sharp central vision

                                                                      Annotations:

                                                                      • Thus, making it difficult to read, drive and recognise faces.
                                                                  3. Retinitis pigmentosa
                                                                    1. A hereditary disease

                                                                      Annotations:

                                                                      • Commonly runs in families
                                                                      1. can be caused by defects in a number of different genes
                                                                      2. A progressive degeneration of the retina

                                                                        Annotations:

                                                                        • Specifically the photoreceptors and the pigment epithelium
                                                                        1. Consequence: on night and peripheral vision
                                                                          1. Common form: Rods get affected before cones
                                                                            1. Affecting peripheral: shrinks the visual field
                                                                              1. Therefore, many people may not notice the onset of RP at first
