Mind map

Immunology I

fatema Al-Sabahi English

Immunology I

Map content

Immunology I

  1. the study of the body's defence mechanisms

  2. immune responses

    • Specific
      • required several days
      • daptive
      • Cell-mediated
      • involve lymphocytes
        • Cell-Mediated immunity
          • T-lymphocytes
            • originally from red bone marrow
              • perinatal migration & stop off in thymus gland
                • of or relating to the time, usually a number of weeks, immediately before and after birth.
                • confers immunological competence on T-cells
                • most stored in inactive state
                  • as small lymphocytes
            • less than 10% of cells r selected
            • the only with receptors
              • bind to specific antigen
            • activation
              • 1 in 10000 T-cells may respond
                • become activated/sensitized cells
                  • 1. increase size
                    • 2. divides mitotically
                      • 3. form clone of cells

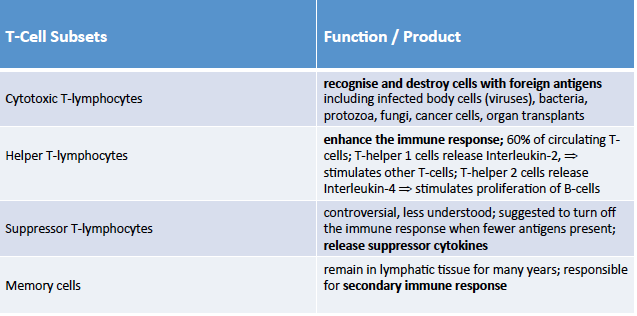

                        • 4. produce variety of specialised cells (T-cell subsets)
                          • Cytotoxic T-cells
                            • combine with surface antigens releasing Cytokines
                              • e.g. perforine-1
                                • membrane pores
                                  • i.e destroy infected cells
                          • Helper T-cells
                            • release interleukins --> infection site
                              • attract macrophages
                              • make other lymphocytes competent to help
                          • memory cells
                            • cause rapid second response
                              • the first response take from 3-14 days
                            • bearing receptors to the antigen
                              • pathogens destroyed before it can get established
                                • e.g. Measles & chickenpox
                              • cold/influenza viruses change their surface antigens
                          • suppressor T-cells
                          • 5. T-cells leave lymph nodes to infection site
              • helper T-cells secret cytokines
                • help activate T-cells
          • antigen-presenting cells (APCs)
            • dendritic cells
            • engulf foreign antigen
            • macrophages
              • phagocytoses pathogen
                • break down surface antigens
              • e.g antigen-MHC complex
          • competent lymphocytes;
        • Antibody-Mediated immunity
    • non-specific
      • innate
      • types
        • 1. physical barrier
          • the skin
            • sweat and sebum
              • destroy some bacteria
                • defensins
                • mucin
                • lysosome
          • the stomach
            • acid secretions
              • destroy microorganisms
          • the lungs
            • sticky mucous
              • lining in Bronchi andbronchioles
        • 2. Cytokines (soluble molecules)
          • the special proteins that are secreted collectively when pathogens enter tissues
          • interferons
            • inhibit viral macromolecule production
            • stimulate other immune responses
            • release in viral infections
          • Interleukins
            • secreted by macrophages and lymphocytes
            • regulate interaction between various parts of the immune system
            • Functions with Tumor Necrosis Factor TNF in mediating inflammation
          • some of them stimulate NK cell activation
            • Natural Killer Cells (NK)
              • large granular lymphocytes from the bone marrow
              • 15% of the circulating lymphocytes
              • release cytokines e.g perforine
                • cause pores in PM of target cells
                  • PM= Plasma Membrane
                • Granzymes then activate a cascade of reactions
                  • cause apoptosis

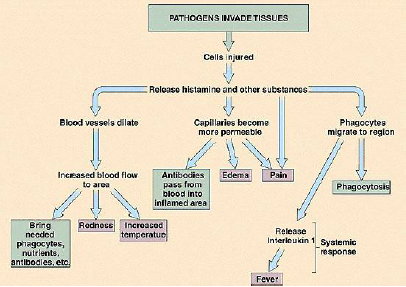

        • 3. inflammation
          • cells release histamine & serotonine
            • dilate blood vessels in the infected area
              • increase capillary wall permeability
                • cause Oedema
              • brings monocytes + neutrophils+ plasma protein gamma globulins (antibodies)
                • releasing endogenous pyrogens
                  • interleukin-1
                  • prostaglandins
                  • reset body's thermostat in the hypothalamus to higher (T)
                    • produce fever or pyrexia
                      • effects directly bacterial metabolism
        • phagocytosis
          • major function of inflammation
          • they're leucocytes
            • Monocytes
              • 1. leave the circulation
                • 2. transform into macrophages
                  • phagocytose 〰100 bacteria before dying!
            • Neutrophils
              • phagocytose 〰 20 bacteria before dying
                • dead neutrophils formed pus
              • smaller
          • some bacteria resist it
            • e.g. tuberculosis bacilli
          • distributed widley
            • particularly in the gut wall & lungs
          • release interleukin-1
            • as inflammatory process
      • prevent the spread of infection
        • until specific come into play

Images and files in the map

  • Immunology I
  • Immunology I
  • Immunology I
  • Immunology I

Information

Description
this mind map covers the concepts of self and non-self antigens. it also illustrates the specific and non-specific immune responses and much more ...
