SEÑALES ELÉCTRICAS.
MEDIOS

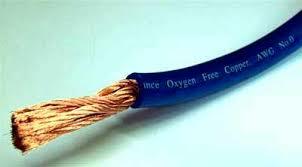

cable de cobre
guiado
AL GENERARSE TRENZADOS DEL CABLE,DAÑAN EL EQUILIBRIO A LOS ELECTRONES QUE FLUYEN POR EL COBRE
pulsos electricos
no guiado
cable UTP
guiado
cable coaxial
guiado
TIPOS
CONSTANTES Y VARIABLES
Son aquellas que no varían en el tiempo.
CONTINUAS Y ALTERNAS
son aquellas que siempre tienen el mismo signo
PERIODICAS
Son las cuales se les puede encontrar un patrón de repetición
SENOIDAL
SON SENSIBLES A
CONEXIONES INCORRECTAS
EXPOSICION A CAMPOS ELECTROMAGENTICOS
DIMINUTAS IMPERFECCIONES EN LOS CABLES
PRODUCE
ATENUACION
RUIDO
DIAFONIA
EMI Y RFI
¿QUÉ ES?
MAGNITUD ELECTRICA
PULSOS ELECTRICOS EN CABLE DE COBRE
