RESTful Web Services with Express Framework and mongoose.

Description

Webservice with RESTful, nodejs, mongoose and express framework.
Angel Martínez Rodriguez
Slide Set by Angel Martínez Rodriguez, updated more than 1 year ago
Angel Martínez Rodriguez
Created by Angel Martínez Rodriguez over 7 years ago
192
2

Resource summary

Slide 1

    RESTful Webservices - Express Framework
    Web ApplicationsExpress is a minimal and flexible Node.js web application framework that provides a robust set of features for web and mobile applications. APIsWith a myriad of HTTP utility methods and middleware at your disposal, creating a robust API is quick and easy. PerformanceExpress provides a thin layer of fundamental web application features, without obscuring Node.js features that you know and love. Hello world example (app.js):var express = require('express')var app = express()app.get('/', function (req, res) {  res.send('Hello World!') })app.listen(3000, function () { console.log('Example app listening on port 3000!') })Run:$ node app.js http://expressjs.com/

Slide 2

    Express - Routing
    Routing refers to the definition of application end points (URIs) and how they respond to client requests.Route methodsA route method is derived from one of the HTTP methods, and is attached to an instance of the express class.The following code is an example of routes that are defined for the GET and the POST methods to the root of the app.There is a special routing method, app.all(), which is not derived from any HTTP method. This method is used for loading middleware functions at a path for all request methods.
    // GET method route app.get('/', function (req, res) { res.send('GET request to the homepage') }) // POST method route app.post('/', function (req, res) { res.send('POST request to the homepage') })-------------------------------------------------------------- app.all('/secret', function (req, res, next) { console.log('Accessing the secret section ...') next() // pass control to the next handler })

Slide 3

    Express - Route paths
    Route paths, in combination with a request method, define the endpoints at which requests can be made. Route paths can be strings, string patterns, or regular expressions. The characters ?, +, *, and () are subsets of their regular expression counterparts. The hyphen (-) and the dot (.) are interpreted literally by string-based paths.// It will match requests to the root route, /.app.get('/', function (req, res) { res.send('root') }) // It will match requests to /about.app.get('/about', function (req, res) { res.send('about') }) // It will match /abe and /abcdeapp.get('/ab(cd)?e', function (req, res) { res.send('ab(cd)?e') })
    Route parameters are named URL segments that are used to capture the values specified at their position in the URL. The captured values are populated in the req.params object, with the name of the route parameter specified in the path as their respective keys. Route path: /users/:userId/books/:bookId Request URL: http://localhost:3000/users/34/books/8989 req.params: { "userId": "34", "bookId": "8989" } // Specify the route parameters ... app.get('/users/:userId/books/:bookId', function (req, res) { res.send(req.params) })

Slide 4

    Express - Route handlers
    You can provide multiple callback functions that behave like middleware to handle a request. The only exception is that these callbacks might invoke next('route') to bypass the remaining route callbacks. You can use this mechanism to impose pre-conditions on a route, then pass control to subsequent routes if there’s no reason to proceed with the current route. Route handlers can be in the form of a function, an array of functions, or combinations of both, as shown in the following examples. A single callback function can handle a route. For example:app.get('/example/a', function (req, res) {    res.send('Hello from A!') })
    More than one callback function can handle a route (make sure you specify the next object). For example: app.get('/example/b', function (req, res, next) { console.log('the response will be sent by the next function ...') next() },  function (req, res) { res.send('Hello from B!') }) An array of callback functions can handle a route. A combination of independent functions and arrays of functions can handle a route. (http://expressjs.com/en/guide/routing.html)

Slide 5

    Express - Response methods
    The methods on the response object (res) in the following table can send a response to the client, and terminate the request-response cycle. If none of these methods are called from a route handler, the client request will be left hanging.MethodDescriptionres.download()Prompt a file to be downloaded.res.end()End the response process.res.json()Send a JSON response.res.jsonp()Send a JSON response with JSONP support.res.redirect()Redirect a request.res.render()Render a view template.res.send()Send a response of various types.res.sendFile()Send a file as an octet stream.res.sendStatus()Set the response status code and send its string representation as the response body.
    You can create chainable route handlers for a route path by using app.route(). Because the path is specified at a single location, creating modular routes is helpful, as is reducing redundancy and typos. app.route('/book') .get(function (req, res) { res.send('Get a random book') }) .post(function (req, res) { res.send('Add a book') }) .put(function (req, res) { res.send('Update the book') })

Slide 6

    Express - express.Router
    Use the express.Router class to create modular, mountable route handlers. A Router instance is a complete middleware and routing system; for this reason, it is often referred to as a “mini-app”. The following example creates a router as a module, loads a middleware function in it, defines some routes, and mounts the router module on a path in the main app. Create a router file named birds.js in the app directory, with the following content:var express = require('express')var router = express.Router() // middleware that is specific to this router router.use(function timeLog (req, res, next) { console.log('Time: ', Date.now()) next() })
    // define the home page route router.get('/', function (req, res) { res.send('Birds home page') })// define the about route router.get('/about', function (req, res) { res.send('About birds') }) module.exports = router Then, load the router module in the app: var birds = require('./birds') // ... app.use('/birds', birds)

Slide 7

    Express - Middleware
    Middleware functions are functions that have access to the request object (req), the response object (res), and the next middleware function in the application’s request-response cycle. The next middleware function is commonly denoted by a variable named next. Middleware functions can perform the following tasks: Execute any code. Make changes to the request and the response objects. End the request-response cycle. Call the next middleware in the stack. If the current middleware function does not end the request-response cycle, it must call next() to pass control to the next middleware function. Otherwise, the request will be left hanging. The following figure shows the elements of a middleware function call:http://expressjs.com/en/guide/writing-middleware.html

Slide 8

    Express - Middleware - Example

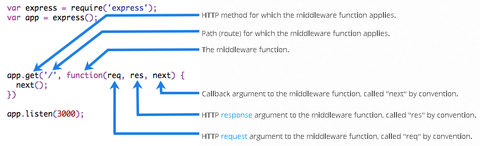

    Caption: : Elements of a middleware function call.
    Here is an example of a simple “Hello World” Express application. var express = require('express') var app = express() app.get('/', function (req, res) { res.send('Hello World!') }) app.listen(3000)The following code loads the myLogger middle-ware function before the route to the root path(/).var express = require('express') var app = express() var myLogger = function (req, res, next) { console.log('LOGGED') next() } app.use(myLogger) app.get('/', function (req, res) { res.send('Hello World!') }) app.listen(3000)

Slide 9

    I.RESTful webservice - Express framework

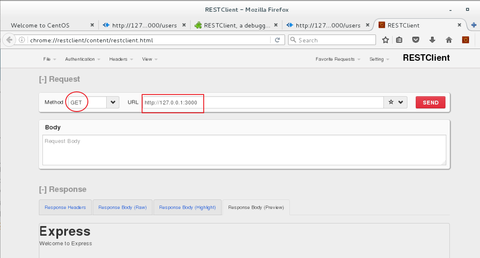

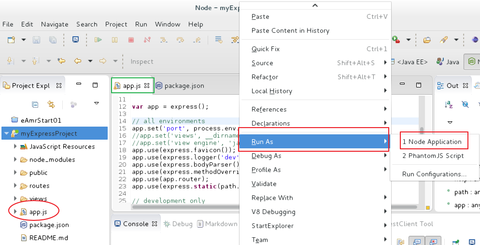

    1. Open Eclipse Enide. 2. Select: File > New > Node.js Express Project.3. Type Project Name and click finish.4. Open app.js file and "Run As.." > Node Application.5. Open firefox REST plugin and send GET method to http://127.0.0.1:3000

Slide 10

Slide 11

Slide 12

Slide 13

    II. Express - Hello route

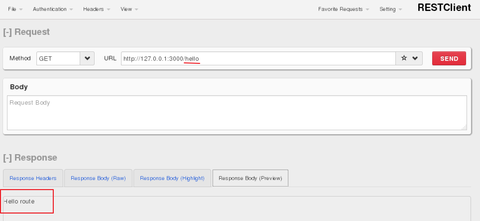

    Create a new node.js file:1. File > New > helloRoute.js > Finish.2. Type the following code.var express = require('express');var app = express();app.get('/hello',function(request, response) {  response.send('Hello route');});app.listen(3000);3. Run as Node application.4. Test as:Method: GETURL: http://127.0.0.1:3000/hello

Slide 14

Slide 15

    III. Express - Hello route with parameter
    Create a new node.js file:1. File > New > helloRouteParam.js > Finish.2. Type the following code.var express = require('express');var app = express();app.get('/hello/:name',function(request, response) {  response.send('Hello ' + request.params.name);});app.listen(3000);3. Run as Node application.4. Test as:Method: GETURL: http://127.0.0.1:3000/hello/Peter

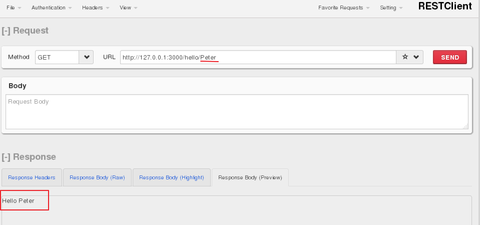

    Caption: : Request by adding Peter as parameter.

Slide 16

    IV. Express - Hello route with URL param.
    Create a new node.js file:1. File > New > helloRouteUrlParam.js > Finish.2. Type the following code.var express = require('express');var app = express();var url = require('url');app.get('/hello',function(request, response) {  var get_params = url.parse(request.url, true).query;    if (Object.keys(get_params).length == 0)   {    response.send('Hello everybody!');  }  else  {     response.end('Hello ' + get_params.name); }});app.listen(3000);3. Run as Node application.4. Test as:Method: GETURL: http://127.0.0.1:3000/hello?name=Peter

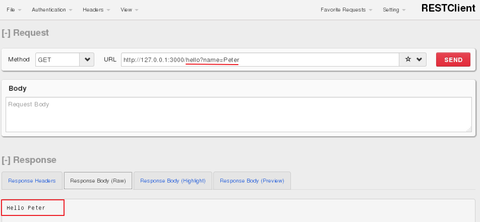

    Caption: : Hello Peter using url parameter.

Slide 17

    V.1 Express - Add contacts

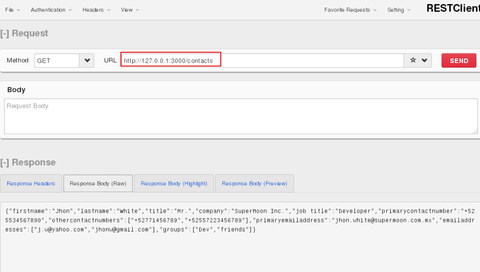

    Create new Express project, then edit app.js, copy and replace existing code by the following:var express = require('express')  , routes = require('./routes')  , http = require('http') , path = require('path')  , contacts = require('./modules/contacts');var url = require('url');var app = express();app.set('port', process.env.PORT || 3000);app.use(express.favicon());app.use(express.logger('dev'));app.use(express.bodyParser());app.use(express.methodOverride());app.use(app.router);
    app.get('/contacts',function(request,response) {   var get_params = url.parse(request.url, true).query;        if (Object.keys(get_params).length === 0) {       response.setHeader('content-type','application/jason');       response.end(JSON.stringify(contacts.list()));    } else { response.setHeader('content-type','application/jason'); response.end(JSON.stringify(contacts.query_by_arg(get_params.arg, get_params.value))); }});http.createServer(app).listen(app.get('port'), function(){  console.log('Express server listening on port ' + app.get('port'));} );

Slide 18

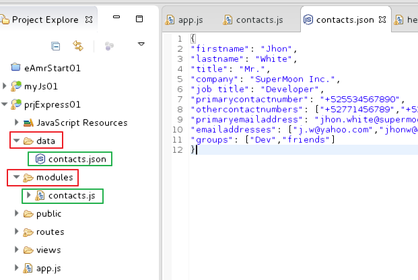

    1. Make new folder: data.2. Inside data folder created in step 1, create new file: contacts.json, then paste the following code:{"firstname": "Jhon","lastname": "White","title": "Mr.","company": "SuperMoon Inc.","job title": "Developer","primarycontactnumber": "+525534567890","othercontactnumbers": ["+52771456789","+52557223456789"],"primaryemailaddress": "jhon.white@supermoon.com.mx","emailaddresses": ["j.w@yahoo.com","jhonw@gmail.com"],"groups": ["Dev","friends"]}
    V.2 Express - Add contacts
    4. Create new folder modules and add file contacts.js inside it.var fs = require('fs');function read_json_file(){   var file = './data/contacts.json';   return fs.readFileSync(file);}exports.list = function(){   console.log('list>ok');   return JSON.parse(read_json_file());};5. Run app.js as node application.6. Test with GET request as:http://127.0.0.1:3000/contacts

Slide 19

Slide 20

    VI.1 RESTful WS - Express and Moongose
    RESTful intregration with Express framework and Moongose (MongoDB support). To test route (/) , do the following:1. Open Eclipse Enide and Create New Express Project.2. Edit package.json and replace contents with the following code:{  "name": "prjExpressMongo",  "version": "0.0.1",  "private": true,  "scripts": {    "start": "node app.js"  },  "dependencies": {    "express": "3.2.6",    "jade": "*",    "mongoose": "latest",    "body-parser": "latest"  }}3. Select package.json and Run As npm install.

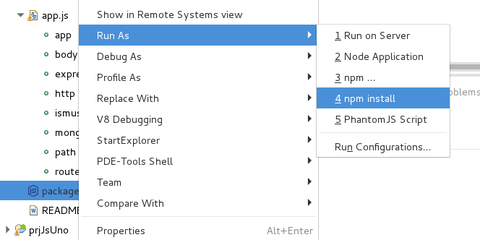

    Caption: : Run npm install to download required modules.

Slide 21

    VI.2 RESTful WS - Express and Moongose
    5. Replace app.js code with:var express = require('express')  , routes = require('./routes')  , http = require('http')  , path = require('path');var mongoose = require('mongoose'); //MongoDB supportvar app = express();// all environmentsapp.set('port', process.env.PORT || 3000);app.use(express.favicon());app.use(express.logger('dev'));app.use(express.bodyParser());app.use(express.methodOverride());app.use(app.router);// development onlyif ('development' == app.get('env')) {         app.use(express.errorHandler()); }
    app.get('/', routes.index); // Handle Route(File: routes/index.js)http.createServer(app).listen(app.get('port'), function(){  console.log('Express server listening on port ' + app.get('port'));});6. Replace code in routes/index.js with:exports.index = function(req, res) {  res.send('Hello MonDB world with Express!'); };7. Run app.js as nodejs application.8.Test with RESTclient (firefox plugin).Method: GETURL: http://127.0.0.1:3000Response Body:Hello MonDB world with Express!

Slide 22

    VI.3 RESTful WS - Express and Moongose
    1. Make new folder: models.2. Define a new model schema to handle data. Inside models folder, create new file: ismuser.js, then paste the following code:var mongoose = require('mongoose'),      Schema   = mongoose.Schema;var ismuserSchema = new Schema({    name:    { type: String },  age:     { type: Number },  role:    { type: String, enum:  ['Administrator', 'Teacher', 'Student', 'Coordinator']} });// Export ismUser model to use later in ismusers.js file.module.exports = mongoose.model('ismUser', ismuserSchema);3. Add connection to mongodb in app.js.var express = require('express')  , routes = require('./routes')  , http = require('http')  , path = require('path');var mongoose = require('mongoose'); //MongoDB supportvar app = express();app.set('port', process.env.PORT || 3000);app.use(express.favicon());app.use(express.logger('dev'));
    app.use(express.bodyParser());app.use(express.methodOverride());app.use(app.router);if ('development' == app.get('env')) {  app.use(express.errorHandler()); }app.get('/', routes.index);mongoose.connect('mongodb://localhost/ismusers', function(err, res) {if(err) { console.log('ERROR: connecting to Database. ' + err); }else { console.log('MongoDB connected!')}});http.createServer(app).listen(app.get('port'), function(){  console.log('Express server listening on port ' + app.get('port')); });4. Open a Linux console to run mongo server:$ mongod5. Run app.js as nodejs application.6. Check in Eclipse Console window, message:Express server listening on port 3000MongoDB connected!

Slide 23

    VI.4 RESTful WS - Express and Moongose
    3. Create new route to handle requests (GET, POST, PUT and DELETE). Create new File: ismusers.js inside routes folder and paste the following code:
    // Import model scheme defined in /models/ismuser.js filevar ismUser = require('../models/ismuser');//GET - Return all ismusers in the DB// Export findAllsmUsers method to use in app.jsexports.findAllismUsers = function(req, res){   // Call find to get all data in DataBase.   ismUser.find(      function(err, ismusers) {        if(err) { res.send(500, err.message); }       // Type message in console.        console.log('GET /ismusers');        res.status(200).jsonp(ismusers);    });};

Slide 24

    VI.5 RESTful WS - Express and Moongose
    //POST - Insert a new ismuser in the DBexports.addIsmUser = function(req, res) {      console.log('POST /ismusers');    console.log(req.body);    var ismuser = new ismUser({        name:    req.body.name,        age:     req.body.age,        role:    req.body.role      });    ismuser.save(function(err, ismuser) {       if(err){ return res.status(500).send(err.message); }       res.status(200).jsonp(ismuser);    });};
    //GET - Return a ismuser with specified IDexports.findById = function(req, res) {      ismUser.findById(req.params.id, function(err, ismuser) {    if(err) { return res.status(500).send(err.message); }    console.log('GET /ismuser/' + req.params.id);        res.status(200).jsonp(ismuser);    }); };//PUT - Update a register already existsexports.updateIsmUser = function(req, res) {      ismUser.findById(req.params.id, function(err, ismuser) {      ismuser.name   = req.body.name;      ismuser.age    = req.body.age;      ismuser.role = req.body.role;      ismuser.save(function(err) {         if(err) { return res.status(500).send(err.message); }         res.status(200).jsonp(ismuser); });    }); };

Slide 25

    VI.6 RESTful WS - Express and Moongose
    //DELETE - Delete a ismuser with specified IDexports.deleteIsmUser = function(req, res) {     ismUser.findById(req.params.id, function(err, ismuser) {      ismuser.remove(function(err) {         if(err) { return res.status(500).send(err.message); }      res.status(200).send();      });  }); }4. Add routes to exported functions in app.js. Open app.js and replace contents with the following code: var express = require('express')  , bodyParser  = require('body-parser')  , routes = require('./routes')  , ismusers = require('./routes/ismusers')  , http = require('http')  , path = require('path');var mongoose = require('mongoose'); //MongoDB supportvar app = express();
    // all environmentsapp.set('port', process.env.PORT || 3000);app.use(express.favicon());app.use(express.logger('dev'));// Import modules.app.use(bodyParser.urlencoded({ extended: false }));app.use(bodyParser.json());app.use(express.methodOverride());app.use(app.router);// Connect to DataBasemongoose.connect('mongodb://localhost/ismusers', function(err, res) {if(err) { console.log('ERROR: connecting to Database. ' + err); }else { console.log('MongoDB connected!'); }});// development onlyif ('development' == app.get('env')) {  app.use(express.errorHandler());  }

Slide 26

    // Add root route. GET call: http://127.0.0.1:3000// index will handle request.app.get('/', routes.index);// Add /ismusers route. GET call: http://127.0.0.1:3000/ismusers// findAllsimUsers will handle request.app.get('/ismusers', ismusers.findAllismUsers);// Add /ismusers/:id route. POST call: http://127.0.0.1:3000/ismusers/:id// addIsmUser will handle request.app.post('/ismusers', ismusers.addIsmUser);// Add /ismusers/:id route. GET call: http://127.0.0.1:3000/ismusers/:id// findById will handle request.app.get('/ismusers/:id', ismusers.findById);
    VI.7 RESTful WS - Express and Moongose
    // Add /ismusers/:id route. PUT call: http://127.0.0.1:3000/ismusers/:id// updateIsmUser will handle request.app.put('/ismusers/:id', ismusers.updateIsmUser);app.delete('/ismusers/:id', ismusers.deleteIsmUser);http.createServer(app).listen(app.get('port'), function(){  console.log('Express server listening on port ' + app.get('port'));});Test the following scenarios:4. Run as nodejs application.5. Configure RESTclient plugin for Request Header: Content-Type, application/json6. Add new ismuser.7. List ismusers.8. Search ismuser by id.9. Update existing ismuser.10. Delete existing ismuser.

Slide 27

Slide 28

    VI.9 RESTful WS - Express and Moongose

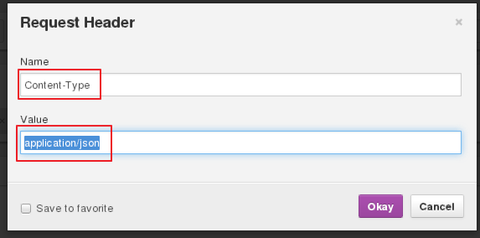

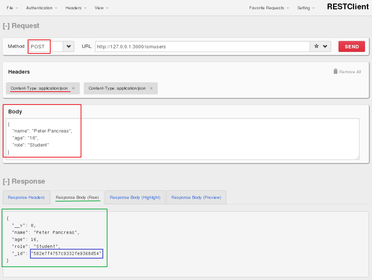

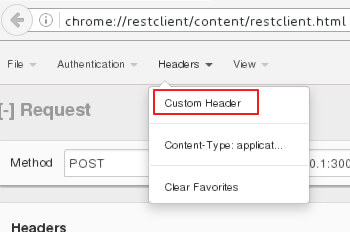

    Add new ismuser: URL: http://127.0.0.1:3000/ismusersMethod: POSTRequest Header: Content-Type, application/jsonBody:{   "name": "Peter Pan",   "age": "15",   "role": "Student"}Note _id filed assigned to the new ismuser register, this id field could be used later to update or delete the register.
    Caption: : Register added.

Slide 29

Slide 30

    VI.11 RESTful WS - Express and Moongose

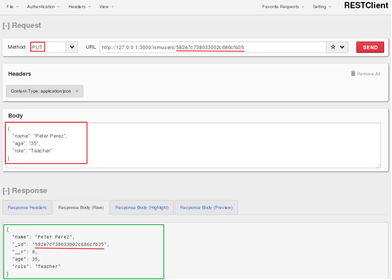

    Update ismusers: URL: http://127.0.0.1:3000/ismusers/582e7c738033002c686cfb35Method: PUTRequest Header: Content-Type, application/jsonBody:{   "name": "Peter Perez",   "age": "35",   "role": "Teacher"}
    Caption: : Updated user.

Slide 31

    VI.12 RESTful WS - Express and Moongose

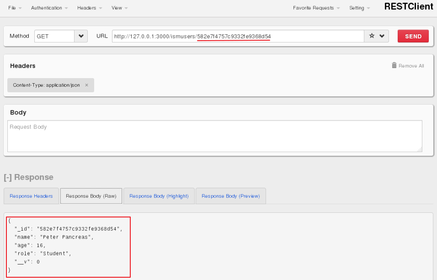

    Search ismuser by id: URL: http://127.0.0.1:3000/ismusers/<id>Method: GETRequest Header: Content-Type, application/jsonBody:Note:Change <id> for existing id ismuser.
    Caption: : ismuser found.

Slide 32

    VI.13 RESTful WS - Express and Moongose

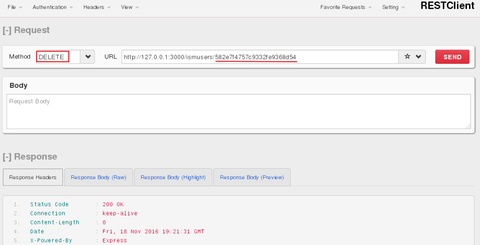

    Delete ismuser by id: URL: http://127.0.0.1:3000/ismusers/<id>Method: DELETERequest Header: Content-Type, application/jsonBody:Note:Change <id> for existing id ismuser.
    Caption: : Deletedismuser.
