Logic Gates

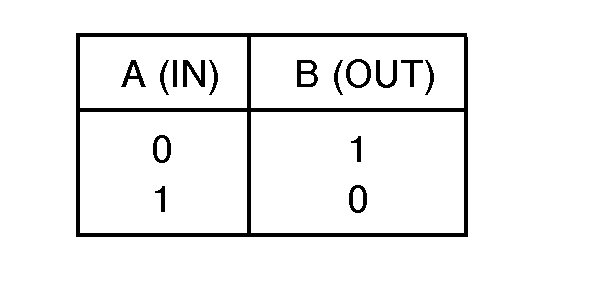

NOT Gate, Inverts signal, Changes all 0's to 1's and all 1's to 0's
AND Gate, requires at least 2 of the same in order to give an output of the same, 2 1's = 1 2 0's = 0
OR gates, require at least 1 of the inputs to be 1 in order to give an output.
