3D Models

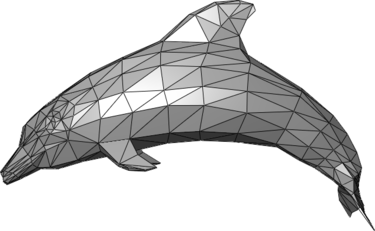

1 Polygon Mesh
1.1 Collection of vetices, edges and faces (usually triangles)
1.1.1 Triangle Mesh
1.1.1.1 Combination of triangles and vertices
1.2 They define the shape of a 3D object
1.3 Simplify rendering process

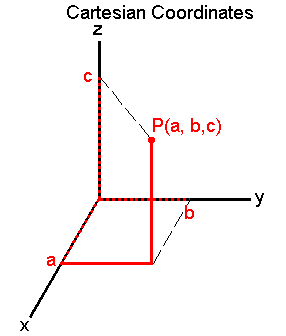

2 3D Cartesian Plane
2.1 X, Y, Z Axis
2.1.1 Point P is conformed by the coordinates X,Y,Z
2.1.1.1 In 3D modeling you create shapes through naming vertices:
2.1.1.1.1 Vertex (0,-1,0
2.1.1.1.2 Vertex (4,-1,2)
