Science Test Mind Map


Science Test is 22nd October 2015. This is revision for it
Hishaam Khan
Mind Map by Hishaam Khan, updated more than 1 year ago
Hishaam Khan
Created by Hishaam Khan over 6 years ago

Resource summary

Science Test Mind Map
  1. Photosynthesis
    1. Animals need to eat food to get their energy. But green plants and algae do not. Instead they make their own food in a process called photosynthesis. Almost all life on Earth depends upon this process. Photosynthesis is also important in maintaining the levels of oxygen and carbon dioxide in the atmosphere.
        1. These are the things that plants need for photosynthesis: carbon dioxide, water, light (a source of energy)
          1. These are the things that plants make by photosynthesis: glucose oxygen
        2. Disease & Immunity

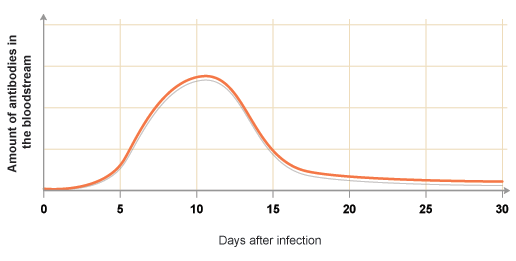

          1. When you are infected by a microbe, it takes time for your body to start fighting the infection. It does this by making enough white blood cells with the correct antibody. During this time, you continue to feel unwell.
            1. After a second infection by the same microbe, your body makes the correct antibodies much faster, because of the white blood cells that remain from when you had the first infection. The microbe doesn't get a chance to make you ill this time, and we say that you are immune to the microbe and the disease it causes.
            2. You begin to recover when enough antibodies have been produced. After the microbes have been killed, the amount of antibodies goes down again. But some of the white blood cells that produce the correct antibody remain in your blood.
                1. Immunisation is a process that doctors use to make people immune from certain illnesses, even before they have been infected. It involves you receiving an injection containing a vaccine.
                  1. Vaccines contain a dead or weak form of the disease-causing microbe, or some of its antigens. In response to the vaccine your immune system produces white blood cells with the correct antibody to kill the microbe, so you become immune without falling ill.
                    1. You are likely to have been immunised against several microbes, viruses and bacteria, including the ones that cause diphtheria, whooping cough, polio, tetanus, meningitis, measles, mumps and tuberculosis. Girls are also immunised against rubella.
