Mind map
Evolution

Map content
Evolution
Evidence
- Fossil Records
- Sequence of changing fossils from layers of rock strata
- Carbon dating (radioisotopes)
- Phylogenic tree can be made
- e.g. Equus
- (-) Gaps in records
- fossils only form in environments that prevent decay
- Selective Breeding
- Breed differentiation has occurred in domesticated animals
- (-) Human rather than natural selection
- Evolution in short time-period
- e.g. Dogs
- Breed differentiation has occurred in domesticated animals
- Structures
- Homologous Structures (Divergent Evolution)
- Similar structure, different function
- Often formed similarly in embryo

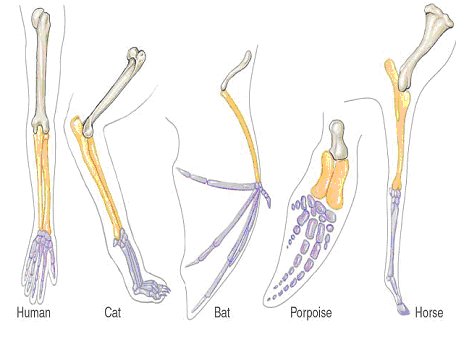

- e.g. Pentadactyl limb
- same bones in similar positions "unity of type" - Darwin
- i.e. radius and ulna attached to humerus
- “Adaptive radiation”
- different purposes
- swimming, running, digging, jumping
- same bones in similar positions "unity of type" - Darwin
- Rudimentary/vestigial organs
- e.g. human appendix, snake hip bones
- Analogous Structures (Convergent Evolution)
- Similar function, different origin
- e.g. fish and whale tails
- Homologous Structures (Divergent Evolution)
- Patterns of Variation
- Continuous variation
- across geographical range
- e.g. human skin colour
- across geographical range
- Discrete variation
- e.g. industrial melanism
- therefore, causes divergence
- Continuous variation
- Fossil Records
Speciation
- Divergence in the gene pool of a population
- can be confirmed if two diverged populations are merged and do not interbreed

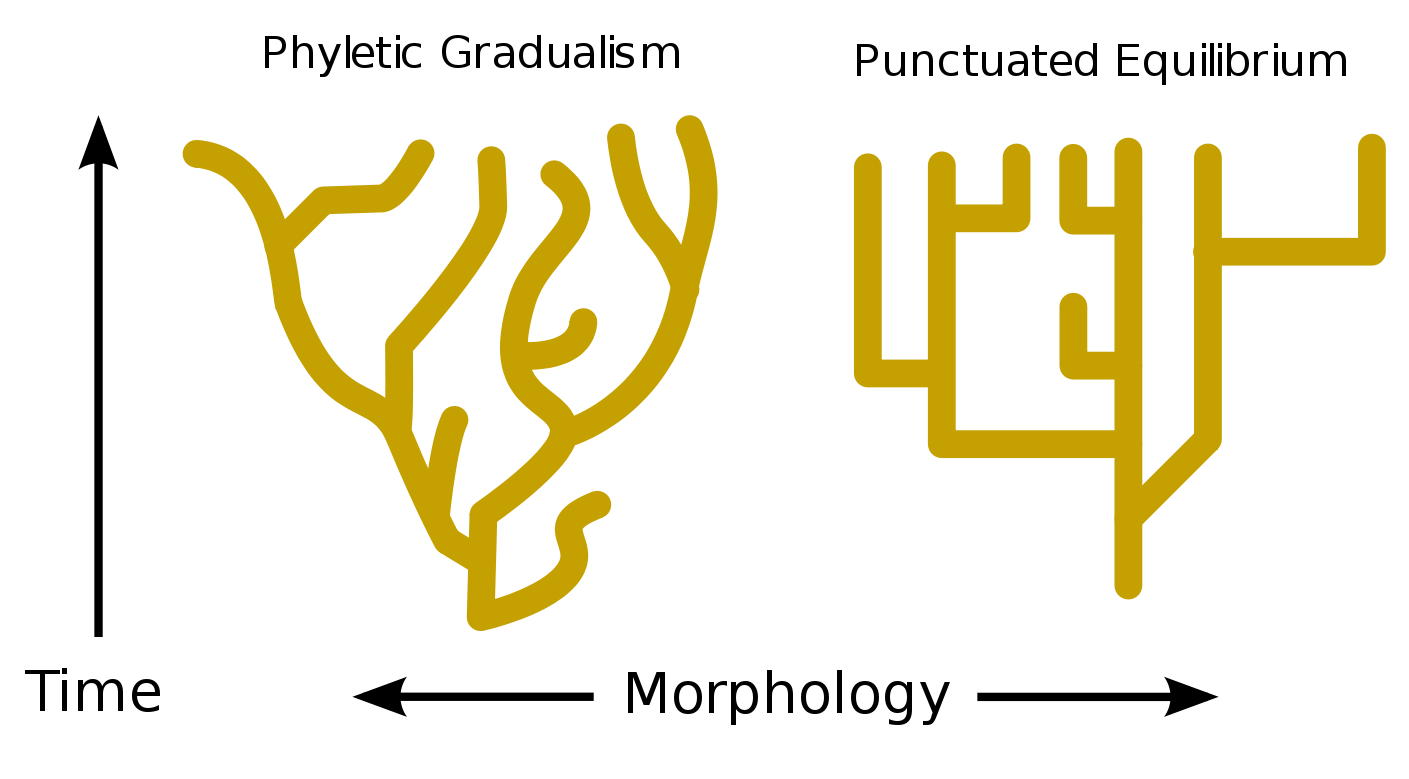

- Models
- Phyletic Gradualism
- many intermediate forms between species
- Punctuated Equilibrium
- long periods of relative stability (stasis) and then periods of rapid evolution
- Mass speciation event - natural disaster causes extinction and new species can erupt to take advantage of resources
- explains gaps in fossil records
- incited by sudden environmental changes
- long periods of relative stability (stasis) and then periods of rapid evolution
- e.g. Galapagos finches
- Gradualism: Darwin observes Adaptive radiation
- Punctuated Eq.: Peter and Rosemary Grant observed drought
- in drought, bigger beaks survived
- Directional natural selection
- in drought, bigger beaks survived
- Phyletic Gradualism
- Causes
- Change in allele frequencies in populations
- Gene pools contain all the genes and the different alleles of a population
- Theoretical: Hardy-Weinberg Equilibrium formula
- Actual: ALFreD database
- Genetic equilibrium - when all members of a population have an equal chance of contributing to the future gene pool i.e. same chance of reproduction
- Heritability is the proportion of variation that is due to genes
- Reproductive Isolation
- Sympatric
- Temporal
- e.g. flowering at different time
- Behavioral
- e.g. mating displays change
- Temporal
- Allopatric
- Geographical
- i.e. no interaction with other populations
- esp. Endemic species
- i.e. no interaction with other populations
- Geographical
- Sympatric
- Change in allele frequencies in populations

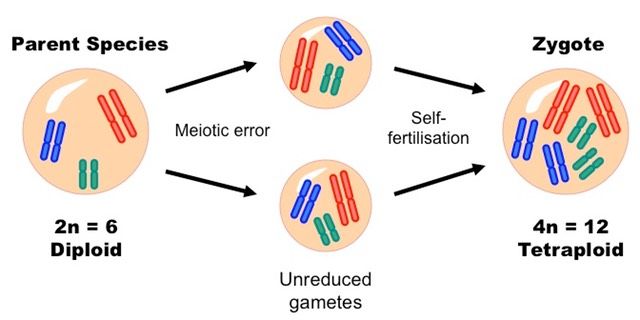

- Polyploidy
- Causes
- Autopolyploidy
- single species, problem in meiosis
- Allopolyploidy
- hybrid
- Autopolyploidy
- Organism that has more than two sets of homologous chromosomes
- diploid and haploid gamete fuse
- organism not sterile since there will always be a chromosome to pair with if it mates with another polyploid or self-pollinates
- diploid and haploid gamete fuse
- Effects
- Instant speciation when only polyploids can reproduce together
- evolution for angiosperms that clone themselves
- e.g. Allium
- desirable crops can self-pollinate
- e.g. Red viscacha has 102 chromosomes, 4n=112 then shed some
- Causes
- Divergence in the gene pool of a population
Mechanisms
- Natural Selection

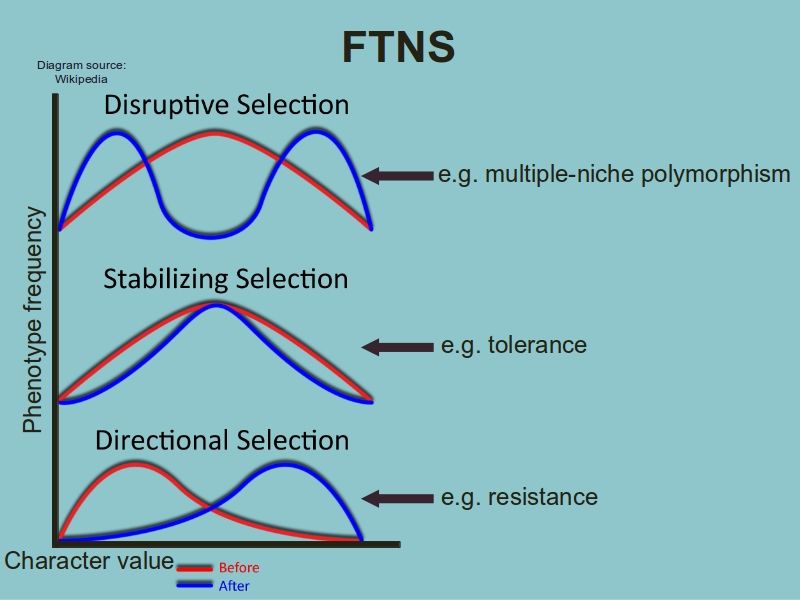

- Patterns of Natural Selection
- Stabilizing selection
- mean of the normal curve is preferred
- e.g.. birth size of humans, # of eggs hatched
- mean of the normal curve is preferred
- Directional selection
- shift to one extreme due to a selective pressure or environmental resistance
- e.g.peppered moths, beak sizes, antibiotic resistance
- mutations occur that make the bacteria resistant to antibiotics
- exchanging of plasmids
- mutations occur that make the bacteria resistant to antibiotics
- e.g.peppered moths, beak sizes, antibiotic resistance
- shift to one extreme due to a selective pressure or environmental resistance
- Disruptive selection
- the mean is undesirable
- tends to drive speciation most because offspring occupy divergent niches
- e.g. Red crossbill, small or large fish
- tends to drive speciation most because offspring occupy divergent niches
- the mean is undesirable
- Stabilizing selection
- i.e. competition
- Causes
- variation within a species
- Mutations
- meiosis (independent assortment, crossing over)
- sexual reproduction and random fertilization
- plasmid transfer
- populations produce more offspring than an environment can support
- environmental resistance
- survival of the fittest
- variation within a species
- Effects
- adaptation to make an individual more suited to its environment
- occupies a niche
- Only animals that reproduce pass on their genes to offspring
- Natural selection increases the frequencies of beneficial alleles
- "progressive change"
- Organisms that reproduce more often evolve faster
- adaptation to make an individual more suited to its environment
- Patterns of Natural Selection
- Genetic Drift
- i.e. geographical separation

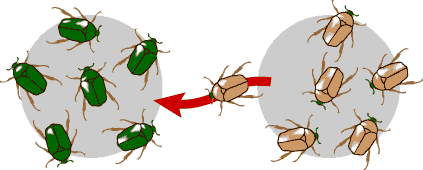

- Genetic Flow
- i.e. migration of populations
- Selective Pressures
- i.e. extenuating factors
- Natural Selection
The cumulation of changes in the heritable characteristics of a population
