  1. 1Which of the following is Ohm's Law?
    1. AV = PR
    2. BV = (q/t) R
    3. CP = IR
    4. DP = (q/t) R
  2. 2Select the correct set of rules for a series circuit.
    1. ACurrent is the same everywhere
    2. BVoltage drop is the same everywhere
    3. CCurrent is different depending on the resistor
    4. DVoltage Drop is different depending on the resistor
    5. EResistance is additive
    6. FResistance is inversely additive
  3. 3Select the correct set of rules of a parallel circuit.
    1. ACurrent is the same everywhere
    2. BVoltage Drop is the same everywhere
    3. CCurrent is different depending on the resistor
    4. DVoltage Drop is different depending on the resistor
    5. EResistance is additive
    6. FResistance is inversely additive
  4. 4Five 100 Ohm resistors are in series. What is the Equivalent Resistance?

    The first blank is for the numerical value. The second blank is for the units, written out.

    R = [blank_start]500[blank_end] [blank_start]Ohms[blank_end]
    1. A500
    2. BOhms
  5. 5Five 100 Ohm Resistors are all in parallel. What is the Equivalent Resistance?

    The first blank is for the numerical value. The second blank is for the units, written out.

    R = [blank_start]20[blank_end] [blank_start]Ohms[blank_end]
    1. A20
    2. BOhms
  6. 6Answer the following: What is the equivalent resistance of this circuit? What is the Voltage Drop at R2?

    Answers have 2 SF.

    Req = [blank_start]1.3[blank_end] Ohms

    V @ R2 = [blank_start]12[blank_end] V    Image for question 6
    1. A1.3
    2. B12
  7. 7Answer the following: What is the Voltage Drop through the resistor? What is the current in this circuit?

    Answers to 2 SF.

    V @ R = [blank_start]24[blank_end] V
    I = [blank_start]2.1[blank_end] Amps    Image for question 7
    1. A24
    2. B2.1
  8. 8What direction does current flow in a circuit?
    1. ATerminal (+) to (-)
    2. BTerminal (-) to (+)
    3. CClockwise
    4. DAnticlockwise
    5. EDepends on the individual components in a circuit

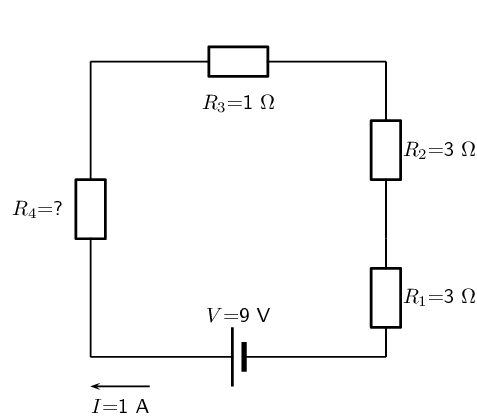

  9. 9What is the value of the missing resistor?

    R = [blank_start]2[blank_end] Ohms    Image for question 9
    1. A2
  10. 10What is the Voltage Drop through one of the 3 Ohm resistors?

    V @ 3 Ohm R = [blank_start]3[blank_end] Volts    Image for question 10
    1. A3
