DT Part 1

  1. Levers

    • Class 1 e.g SeeSaw, Trebuchet

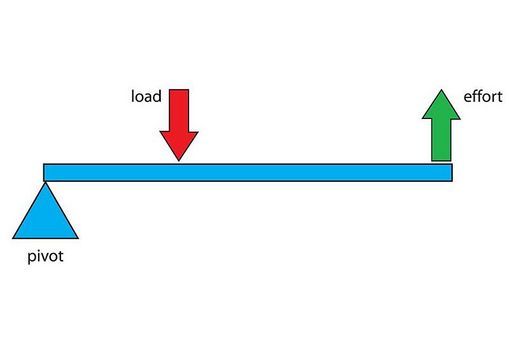

    • Class 2 e.g Wheelbarrow, Spanner
    • Class 3 e.g Crane, Digger
  2. Types of Motion

    • Linear e.g Bullets, Lazerlight
    • Oscilating e.g metronome
    • Rotary e.g Drill bit, Bike gears
    • Reciprocating e.g Jigsaw, Piston
  3. Cams

    • Encentic Cam
      • Slow rise and fall
      • Circular, pivot off centre
    • Cams convert Rotary motion to Reciprocating
    • Snail Cam
      • Slow rise rapid fall
      • Oval, with cut out section to drop
    • Random Cam
      • Rise and fall is random
      • Random Shape
    • Pear Cam
      • Stationary then rise and fall
      • Pear Shaped
