Angle Rules

Description

Flashcards on Angle Rules, created by ricsalazar on 16/05/2016.
ricsalazar
Flashcards by ricsalazar, updated more than 1 year ago
ricsalazar
Created by ricsalazar almost 8 years ago
19
0

Resource summary

Question Answer
Base angles of an isosceles triangle formed from the radii of a circle are equal. (Base <'s isos. Triangle, = radii)

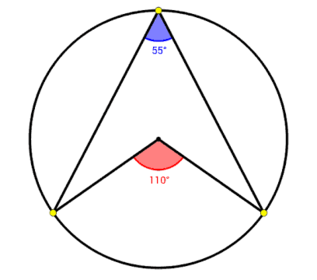

The angle at the centre is twice the angle at the circumference on the same arc. (< at centre)
The angle in a semi-circle is a right angle. (< in semi-circle)
Angles on the same arc are equal. (<'s on same arc)
Opposite angles of a cyclic quadralateral add to 180 degrees. (Opp. <'s, cyclic quad)

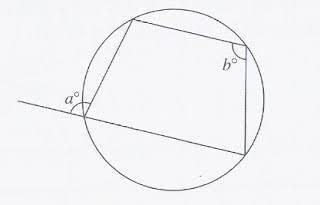

The exterior angle of a cyclic quadralateral is equal to the interior opposite angle. (Ext. <, cyclic quad)
The angle where the radius meets the tangent is 90 degrees. (Tgt. Perpendicular Rad)

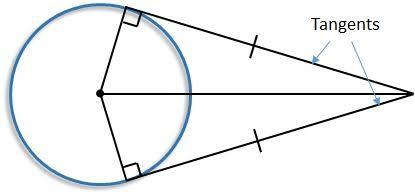

Tangents from a point to a circle are the same length. (Equal tgt)
The perpendicular from the centre to the chord bisects the chord. (Perpendicular from centre to chord)

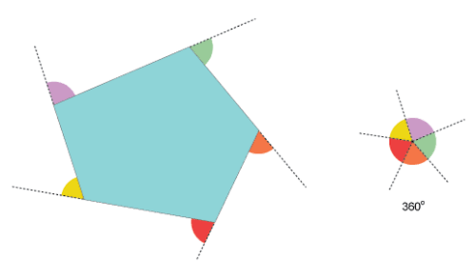

The exterior angles of a polygon add to 360. (Ext. < sum of polygon)
The interior angles of a polygon: sum= 180(n-2), Where n is the number of sides. (Int. < sum of polygon)
Each angle in an equaliteral triangle is 60 degree. (< in equailat. Triangle)

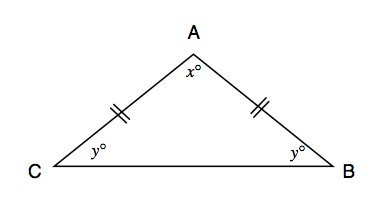

The base angles of an isosceles triangle are equal. (Base <'s isos. Triangle)

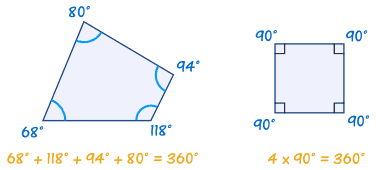

Interior angles in a quadrilateral add up to 360. (< sum of quad.)
The exterior angle of a triangle equals the sum of the two interior opposite angles. (Ext < of triangle)
