ESTRUCTURAS Y TIPOS DE ESTABILIZADORES
ESTRUCTURA
la forma de los estabilizadores es simetrica los cuentan con bordes de salida debido a la fuerza aerodinamica que se aplica
Los estabilizadores son el punto de union de los timones
TIPOS DE ESTABILIZADORES

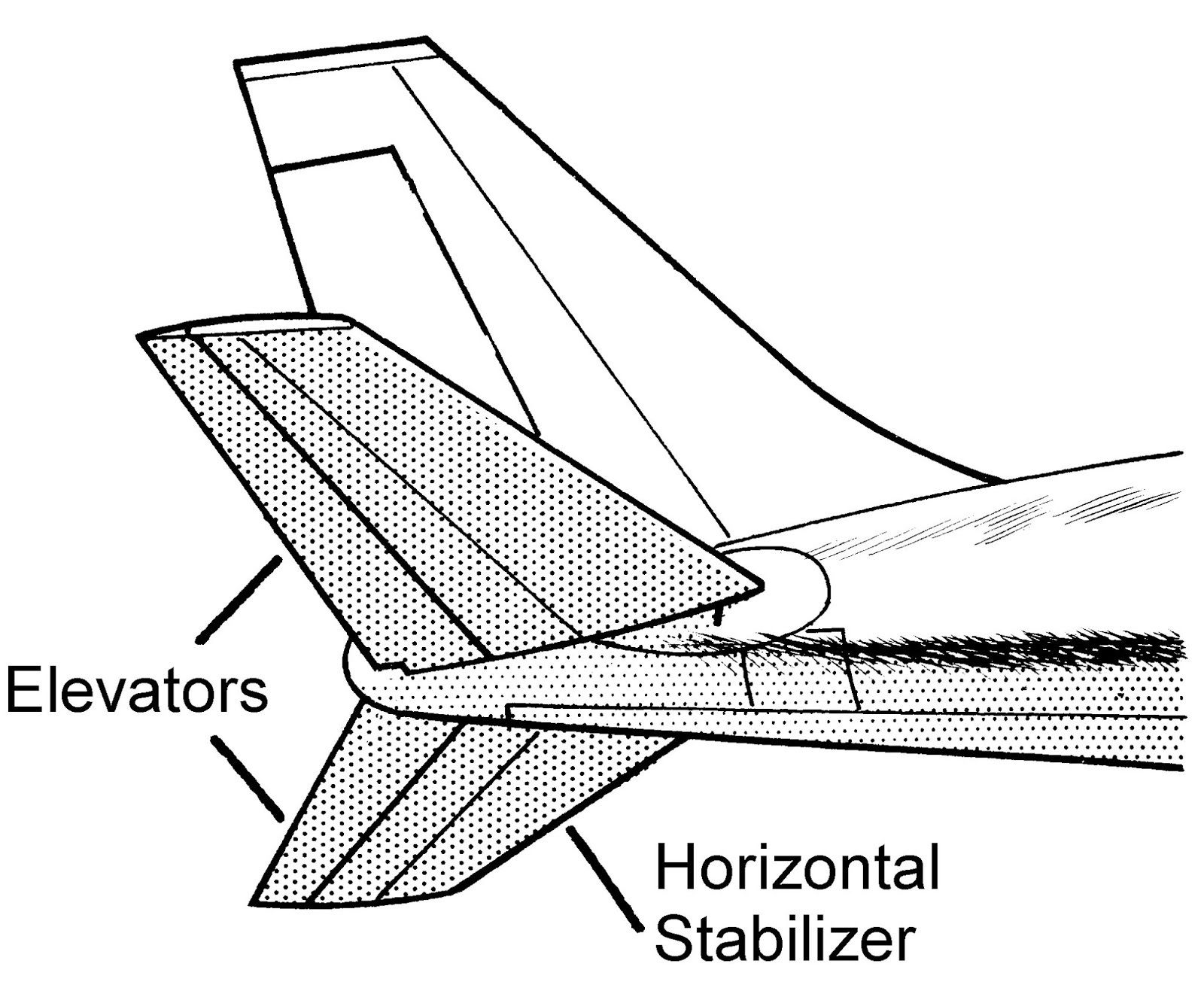

Estabilizador Horizontal
movil
el avion vuela con el morro hacia arriba , hacia abajo sin tener que actuar sobre el timon de profundidad
Estabilizador vertical
proporciona estabilidad en el movimiento de la guiñada la cual orienta al avion izquierda o derecha

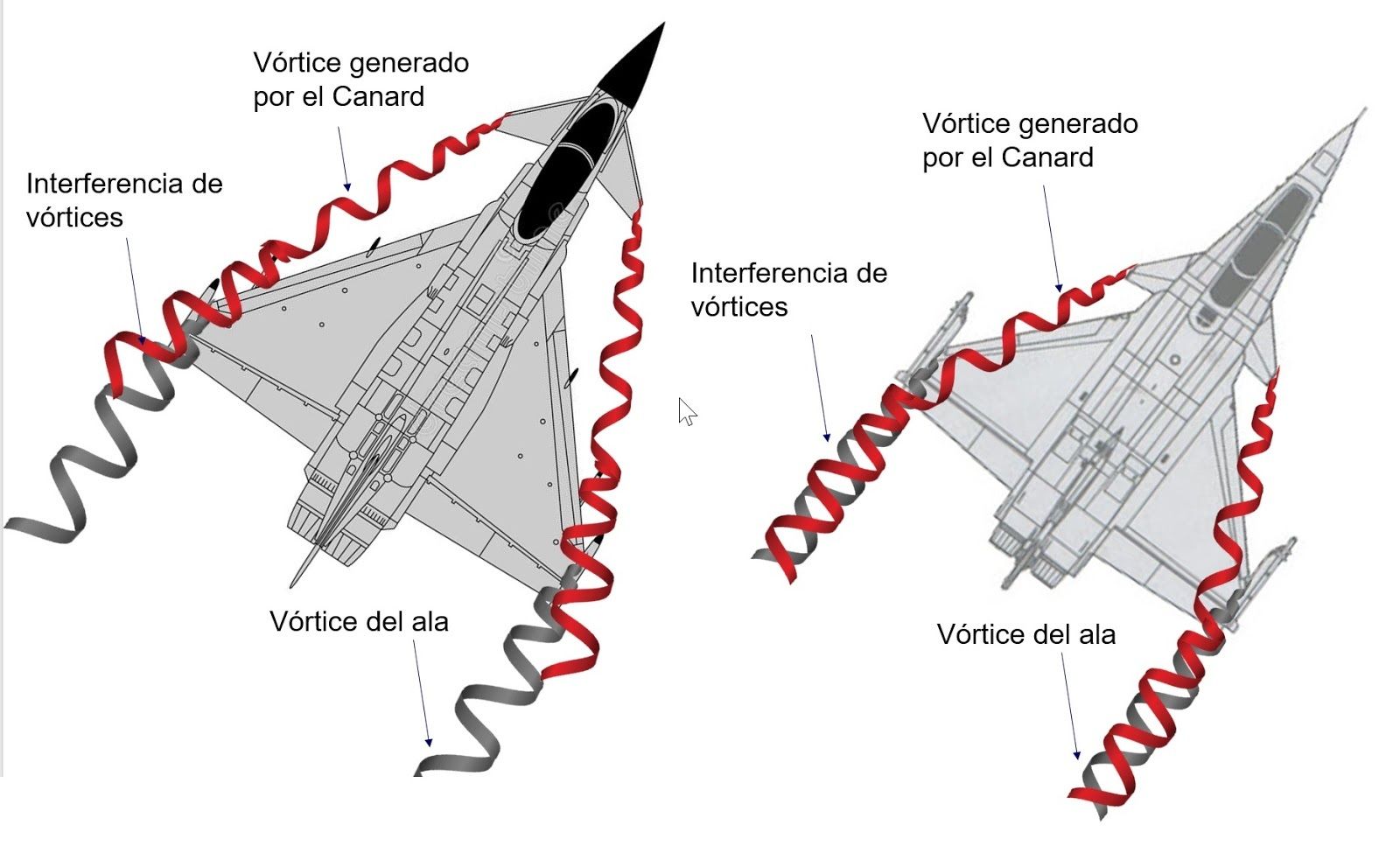

Estabilizador canard
ubicada en la parte delantera del avion
