circuit

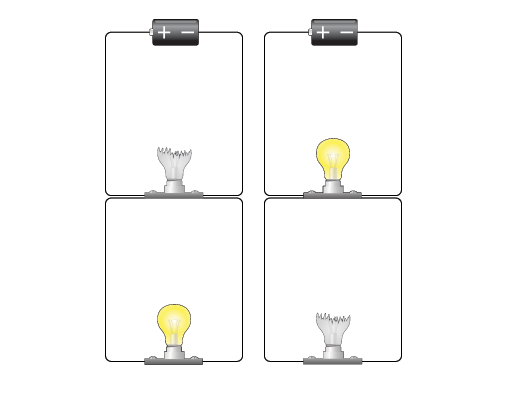

parallel
The parallel when one is burned or broken the other until works

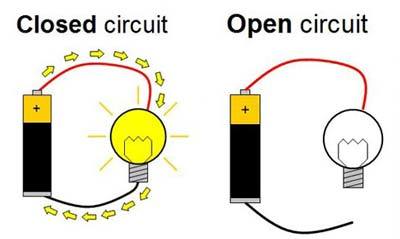

open
whwn is an open circuit is when the light is off
close
the close circuit is when the lights are on

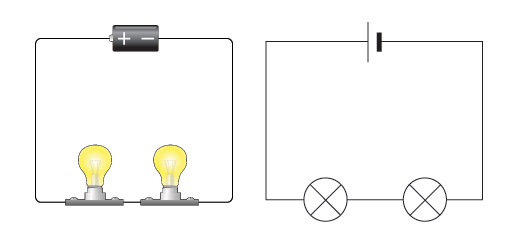

series
the circuit when one brokes or burn it not work the other
