Semiconductores

Description

Tipo de semiconductores y aplicaciones
Alejandro Chavez
Mind Map by Alejandro Chavez, updated more than 1 year ago
Alejandro Chavez
Created by Alejandro Chavez over 7 years ago
24
0

Resource summary

Semiconductores

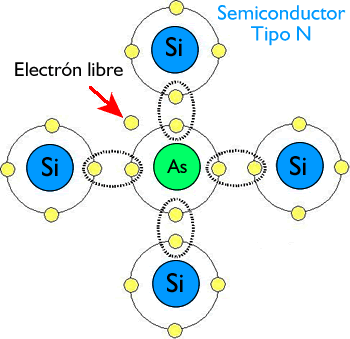

  1. Tipo N
    1. Impurezas Pentavalentes
      1. Carga Negativa

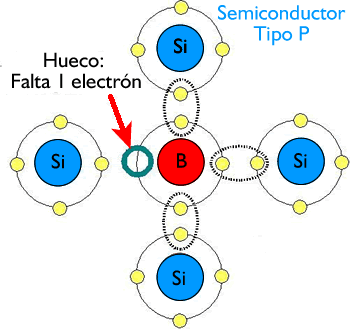

      2. Tipo P
        1. Impurezas Trivalentes
          1. Cargas Positivas

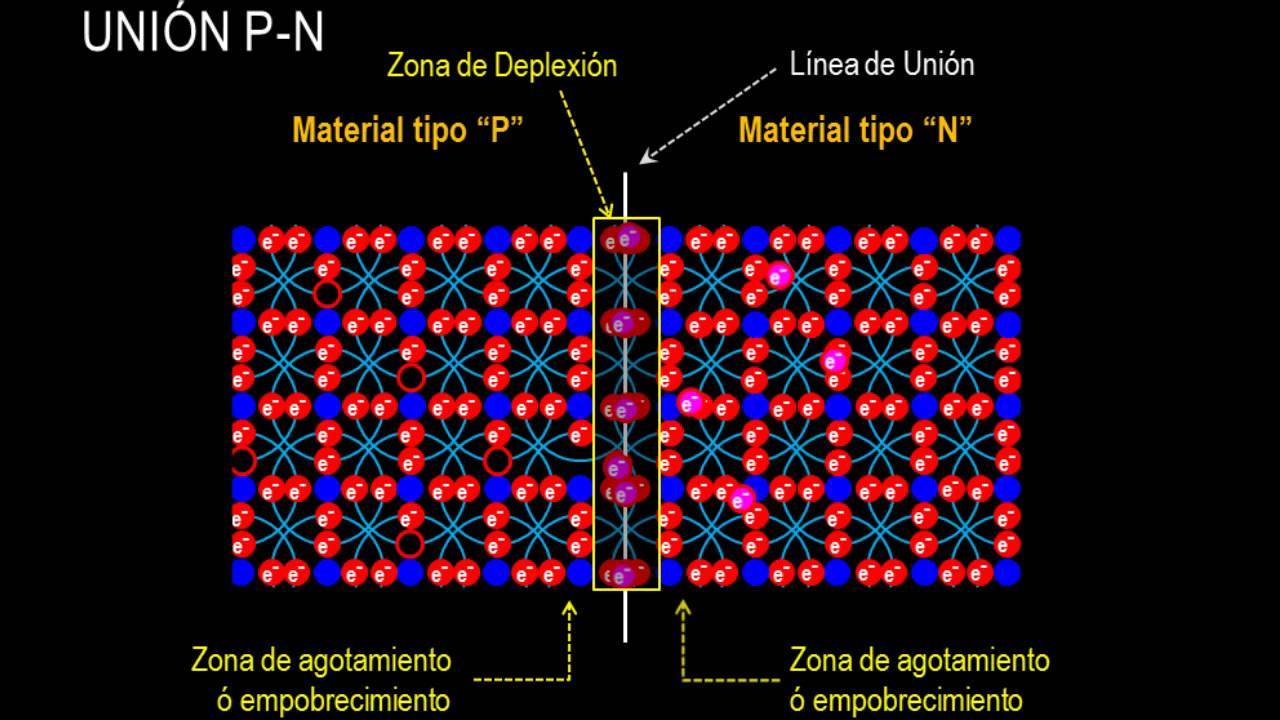

          2. Tipo P-N
            1. Impurezas P
              1. Interactuan entre si
              2. Impurezas N
                1. Carga Positiva y Negativa

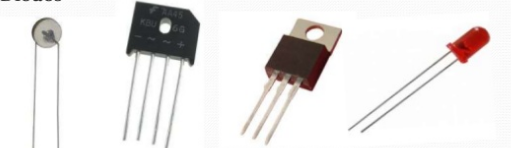

                2. Aplicaciones
                  1. Rectificadores
                    1. Transistores
                      1. Termistores
                        1. Diodos
