Each system has a virtual
"loopback" network adapter
IP range 127.x.x.x is reserved for loopback.
Default 127.0.0.1 (localhost)
TCP and UDP use 216 ≈ 65000 ports
Ports 1 – 1024 are reserved and on many
systems need admin privileges
A unique port is needed at each part of the
communication
Address 0.0.0.0 is used as any/all address
Client Networking (TCP)
The client initiates the connection by
opening a connection to server port
The client "knows" which ip address
and port to use
The TCP stack takes care of providing two
channels (sending and receiving)
Server Networking
The server binds for requests on a predefined
port on a predefined address (or 0.0.0.0 for all)
The server then waits for a connection by
calling accept to receive a new connection
Accepted connections get their own local port
so that multiple connections are possible
Server now needs to wait for
new connections as well as
handle the current one
Sockets
Abstraction for network access
Origin in Unix
Abstracts away from implementation
and networking protocol
Provides file handles that
can be read or written to
Sockets don't have a
"file" length
End of file when
connection is closed
Client Sockets
Specify address family (AF_INET,
AF_INET6, AF_UNIX), and address
(including port) of destination
Local port can be specified, but
generally isn't (OS manages this)
Connect will initiate the connection
Connection can then be
written to or read from.
Server Sockets
Specify address family (AF_INET,
AF_INET6, AF_UNIX), and port
(and address) to listen to
Accept will wait for a
connection and return a new
open socket for the connection
Connection can then be
written to or read from.
Synchronous Networking
Accept, recv, send (or read, write) are
blocking (they return only when finished)
Network operations
can be really slow
You might want to do something
while waiting (like update the GUI
and respond to user events) – so
you need threads
Asynchronous Networking
Give commands, the OS
handles them
Callbacks on completion/error
Polling to see if new
data is available
The only way to do
I/O in Javascript
No synchronization problems (race
conditions etc.), but harder
programming model.
Http Basics
<COMMAND>
<PATH>
<PROTOCOL>
eg: "GET /
HTTP/1.1"
<HEADERS> eg:
"Accept-Encoding: gzip"
Implementation of a server
Serve "basic" HTTP/1.0
Ignore most headers
Return the request in text/plain
Server Workflow
Create a new socket. Bound to 0.0.0.0:80
While not shutting down
accept a new connection
Read the first line in the connection
Read a line. If it's empty stop processing,
If not, add it to the known headers
If there is a content-length header. Read the content
Process the request based on the path
Advanced I/O
What is I/O
Computers only make sense if
they can interact
That means they need to
be able to receive inputs
And produce outputs
I/O Devices
Keyboard
Mouse
Screen
Scanner
Printer
Hard Disk
Hardware perspective
CPU
Devices live on buses (PCI, USB)
Buses are middle-men (often layered)
Devices are exposed in two ways (not
exclusive)
I/O ports (mostly used in Memory Mapped
mode)
Memory access (put video memory into cpu
address space)
I/O ports (on x86 architecture)
Maximum 32 bits
Addressed one by one
In total 65,536 available (each device
only gets a limited amount)
Ports are unique across a
computer (PnP needed to
dynamically assign ports)
Can be exposed as "plain"
memory (memory mapped I/O)
Memory based I/O
Ports are made available as
memory addresses (no longer
a big issue with large
address spaces)
Device based memory is made
available in main address space
Creates (imperfect) illusion
that everything is memory
DMA (Direct Memory Access)
I/O in many cases
is really slow
Memory mapped I/O
doesn't stop slowness
Copying I/O from
hardware to memory
is a "simple"
operation
Special purpose
helper system (DMA
engine)
Hardware needs to "cooperate"
/ be designed for it.
OS role
All these technical
details are primarily
relevant for driver / OS
writers
But there are performance
and design consequences
that leak into programs
Programming I/O
Kinds of I/O
Disk – Arbitrated through File System layer
Video – Arbitrated through windowing system
Audio – Arbitrated through audio layer
Network – Arbitrated through networking layer
Mouse, Keyboard etc. Arbitrated through
windowing system
General I/O – Arbitrated through device
drivers exposing specific or generic
interface
Common thread
There can only be one program
controlling a device
Many programs want access
The OS must arbitrate and often control
Programs receive OS
regulated access to smaller
abstractions of the device
I/O Models
Synchronous – Stop the
thread while performing an
operation
Asynchronous – Don't wait
for results (but optionally be
notified on completion)
Access Modes
Command based – Use
special commands to
access the I/O device
Memory mapped – Get access
as if it is a range in memory
(where this makes sense) – A
bit more complex, but faster,
and reuses virtual memory
techniques
Java
Did not use to
support many
advanced modes
With NIO (New IO)
supports many
more modes
I/O Buffering
Unbuffered – When
using small reads
this can be very slow
Buffered – Read in
large blocks, let users
use it as small
Unless requesting "direct
I/O" always has OS cache
between program and file
Access modes
Read – Only
read the file
Write – Remove existing
content and write
Append – Add to the
end of the file
Random Access – Be
able to move through the
file (and reading/writing)
Read+ – Read access
that does not disallow
writing
Files kinds
Binary files. Store sequences of
bytes. When storing/reading
values larger than bytes, byte
order matters (big/small endian)
Text files. Store sequences of
characters. Depends on character
encoding (mapping bytes in the file
to unicode), and line ending
Callbacks and Lambdas
Functors
Literally
function objects
Allow functionality to
be provided outside
object control
In some cases could be
replaced with inheritance
uses
Comparator<T>
OnClickListener
Runnable
Difference from function
Function only has address / name
Functor / function object may have state
Function ref
Address to a function
Type that allows for
correct calling
Since 1.7 there is a
MethodHandle in java
that “does this”
Traditional Method
objects are also
references
In C/C++ it is a pointer (32 or 64
bits) to the address where the
executable code starts

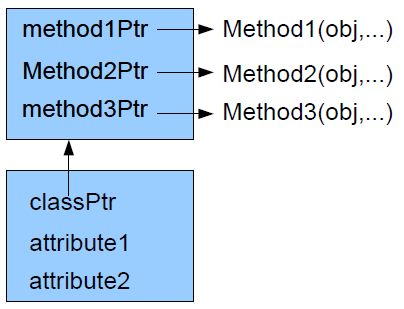

Poor man's objects
(with virtual methods)
Struct(ured) type
with method
pointers
The pointed to functions have
the object as first parameter,
and operate on it
The function pointers don't change
(or are stored in a shared “class”
object)
Example
2 kinds of data - java
Objects – Always references,
inherit from Object, all
methods are virtual
Primitives – Limited, fixed set of
stack based numbers that are
the building blocks of everything
else
Other entities
Classes/types – Have a
runtime “existence” through
Class objects
Methods – Available through reflection
You can see them, but
they are not straightforward
(or cheap) to use.
They are second class
citizens.
First class functions
When you don't have data
“like static methods”
Parameters can be functions
Functions can return functions
Other first class "things"
Primitives
can be calculated
Objects
Can be instantiated (new
Object)
Creating first class functions
Lambda (λ) (Yes the Greek letter)
Lambda calculus is a
formalisation of programming
Lambda functions are functions
that create functions.
Why lambda
Lambda calculus teaches us the
awesome power of “dynamic” function
creation
Very compact way to
specify functions in-line
Allows for easy use of very
powerful algorithms
Use new Thread(() ->
{ System.out.println();
});
Lambda usage
map(iterable, function) → new iterable storing
the results
filter(collection, function) → shortened
collection containing only some functions
Event handlers
Create a function that incorporates a link
to an object and calls a method on it as a
replacement of a functor.
Generics/Templates
Core programming concepts
Abstraction
Handling complexity
Code reuse
Using libraries
Designing your
own code
Correctness
Design for reuse
Support various uses
Accept any type
Keep code correct
Make types and other things a part
of the "parameters" to types and
functions
Introspection
Type info available at
run-time
Instantiate objects at run-time
Create method calls at run-time
Java Class objects
Code generation
Special code
Android's R.java – Link resources to java
Qt's MOC (Meta Object Compiler)
to support a library feature
Generate code from UML
(even round-tripping
Compiler (generates assembler code)
Runtime code generation
Better(reified) generics (C# style)
Just in time compilation
Various Java libraries with Classloader
Compile time code generation
Special purpose tools
One-off programs
Framework tools
Android R.java
JSP processing
Generics
Allow compiler to enforce rules on types
Language specifies
type dependencies in
classes / functions
Only work on types
Generic types are highly related
(but not actually the same type)
One body of code
Generic implementation
Type erasure (java) – At
run-time generics have
disappeared.
Reification (.net) – Remember the used type, allowing for things like
arrays of generics (up to having separate implementation for primitives)

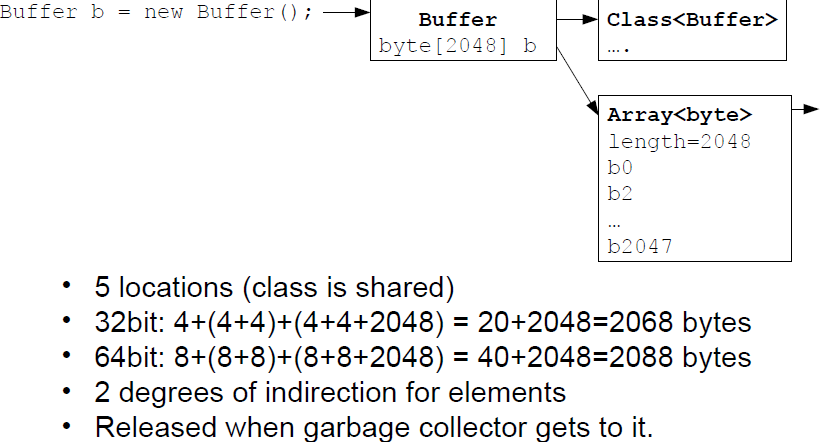

What is an
object in
Java/C#

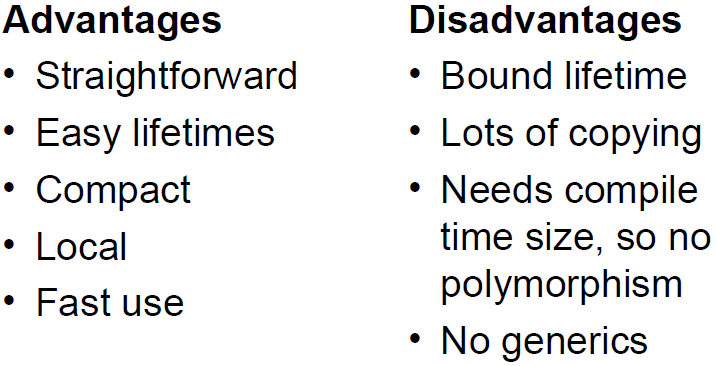

In place use of objects
Memory usage
In place - Memory is part of owner (object / stack)
Pointer/reference - Separately allocated memory,
Owner has a pointer (size does not depend on type)
Templates
C++ solution to
code reuse
(especially for
containers)
Unlike generics, is
not a type of itself
Arbitrary
specialisations
are allowed
Tells compiler how
to create function or
class based on
parameter type or
number
