Mindmap
C3 (Part 2)

Inhalt der Mindmap
C3 (Part 2)
Analysis & synthesis
- Titration Calculations
- Concentration is measured in grams per decimetre cubed (g/dm3), or moled per decimetre cubed (mol,dm3)
- If we know the mass or number of moles, in a given volume we can work out concentration
- If we know volume of a solution and concentration we can work out the mass or moles
- Chemical Analysis
- Some just looks at whether it is just in a substance e.g. the ion tests
- Others look at how much, e.g. Gas Chromatography and Mass spectometry
- Equilibrium
- equilibrium is when the rate of the forward reaction is equal to the rate of the backwards reaction
- The reaction still continues but the amount of products remains constant
- Only occurs in reversible reactions
- The amount of reactants and products in a reversible can be changed by shifting the equilibrium
- E.G. ICl +Cl2 --> ICl3
- When there is plenty of Cl2 gas, more ICl3 is made
- When there is less Cl2 gas, more ICl is made

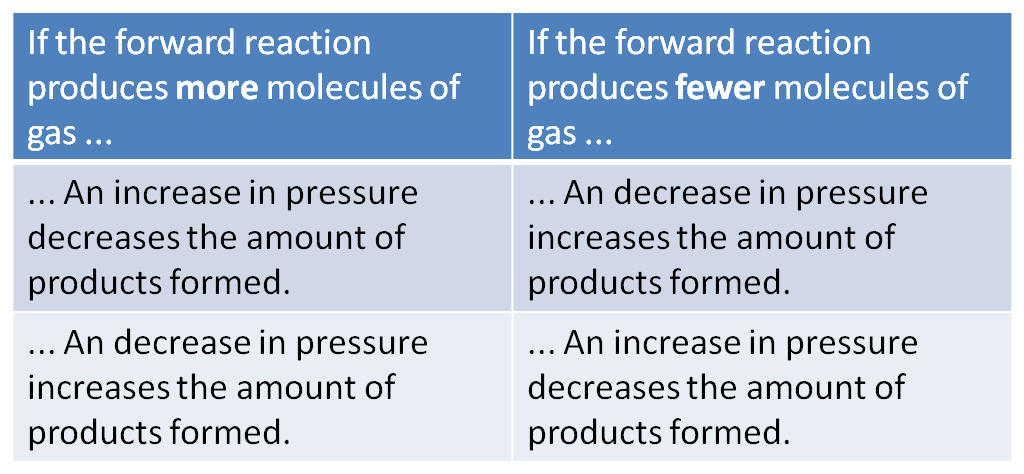

- Change in pressure

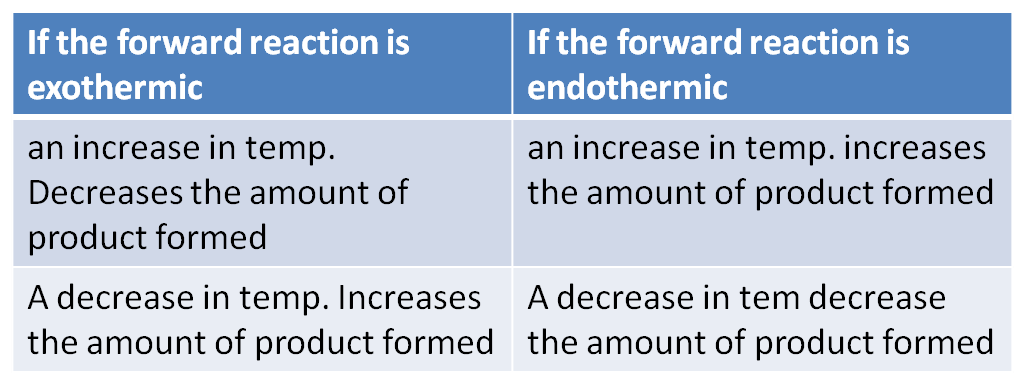

- Change in Temp.
- E.G. ICl +Cl2 --> ICl3
- equilibrium is when the rate of the forward reaction is equal to the rate of the backwards reaction

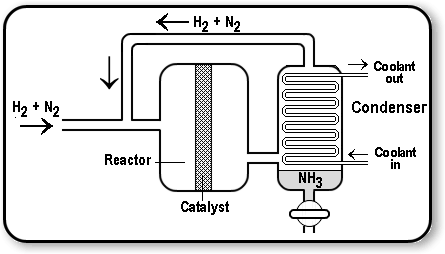

- Haber Process
- Makes ammonia that can be used as;
- fertiliser
- Explosives
- Some cleaning fluids
- Passed over an iron catalyst, at 200 Atmospheres. and 450 oC
- N2 + 3H2 --> 2NH3 <--
- The yield is only about 15% as some of the ammonia breaks back down in to N2 and 3H2
- To try and limit this (the reverse reaction) the ammonia is cooled so it condenses, it can then be extracted
- Optimum Conditions
- Pressure - As the product have fewer molecules, a high pressure will give the highest amount of product
- However a high pressure means a high cost for equipment so it can withstand the pressure, and energy to compress the gas
- 200 Atmospheres is a good medium
- However a high pressure means a high cost for equipment so it can withstand the pressure, and energy to compress the gas
- Temp - the forward reaction is exothermic and so the lower the temp the better
- However the rate of reaction decreases as temp. decreases and the iron catalyst becomes ineffective
- 450 oC is a good inbetween
- However the rate of reaction decreases as temp. decreases and the iron catalyst becomes ineffective
- Pressure - As the product have fewer molecules, a high pressure will give the highest amount of product
- Makes ammonia that can be used as;
- Titration Calculations
Organic Chemistry

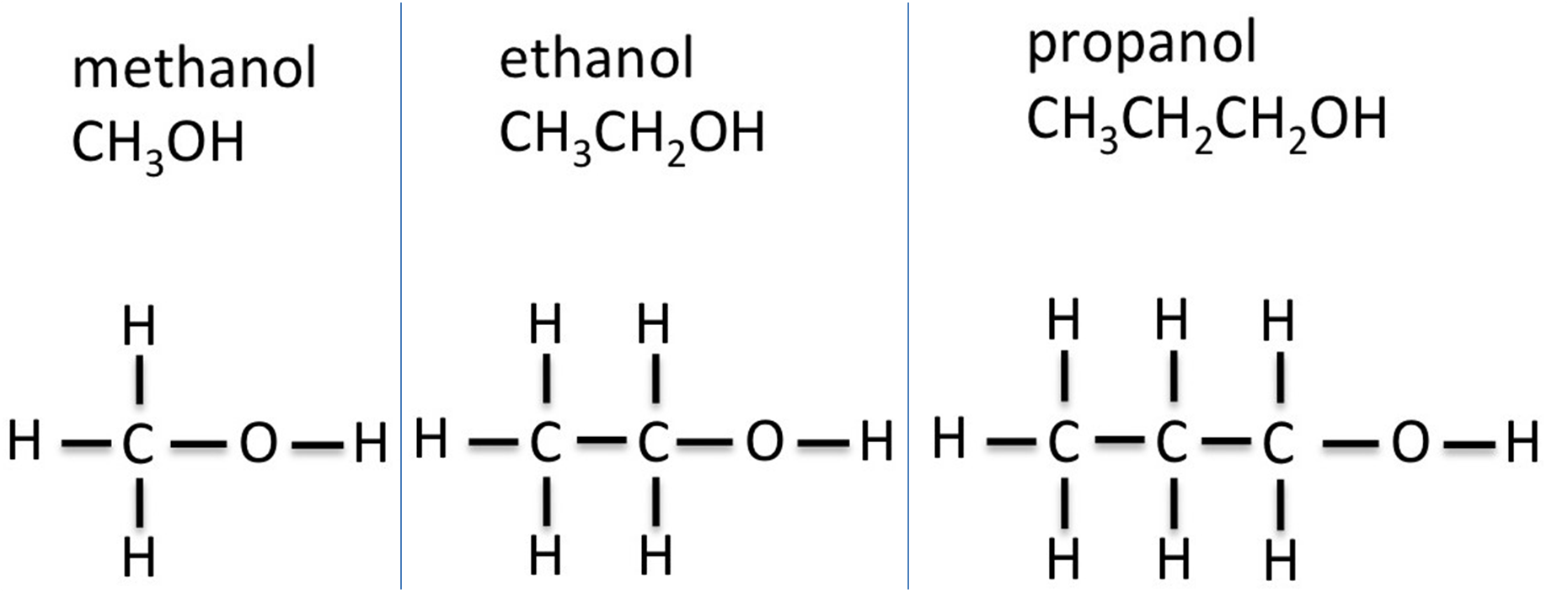

- Alcohols
- Functional group = -O-H
- Uses of alcohols
- The smaller alcohols, Meth., Eth., Prop., react well with water to form neutral solutions
- Many organic substances dissolve in them and so they are useful solvents
- Ethanol is used in Alcoholic beverages
- It reacts with sodium to form Hydrogen gas - it reacts less vigorous than Sodium in water
- Alcohols can be oxidises by agents such as Potassium Diochromate - Oxidised Ethanol produces ethanoic acid; this is the main acid in vinegar

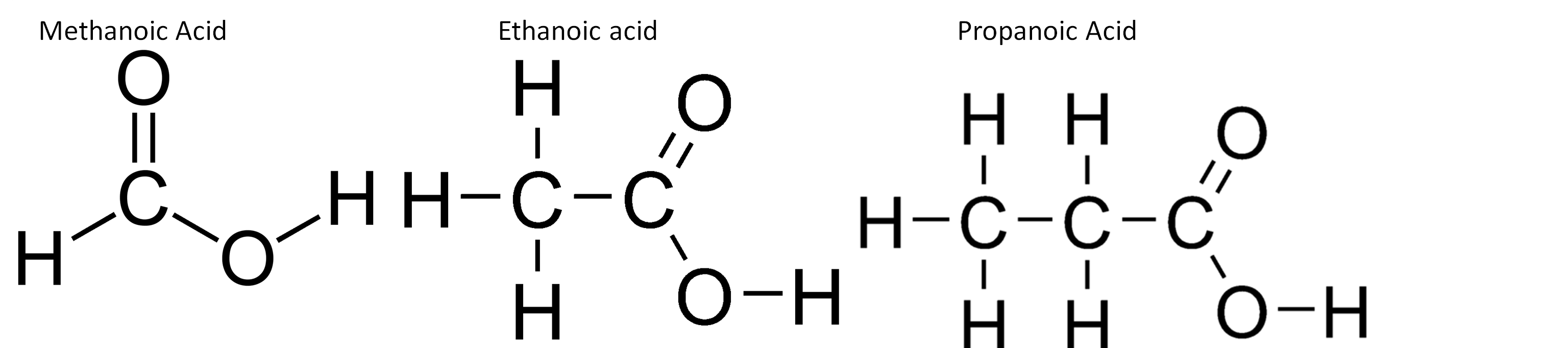

- Carboxylic acids
- Functional group = -COOH
- They react with water to produce a solution less that pH 7
- They also don't fully ionise in water - this means carboxylic acids are weak acids
- Esters
- Esters are Carboxylic acids reacted with an alcohol, in the presence of an acid catalyst
- They have the functional group is -COO-
- The H atom from the carboxylic acid is replaced with an alcohol
- E.G. --> CH3 COOCH2 CH3 - Ethyl Ethanoate
- The H atom from the carboxylic acid is replaced with an alcohol
- They have the functional group is -COO-
- Some smell nice and are used in fragrences
- Esters are Carboxylic acids reacted with an alcohol, in the presence of an acid catalyst
- They can benefit society when ussed appropreately but can be harmful if abused
- Biofuels offer an alternative to fossil fuels, but the plants they are grown from take up agriculteral land and so can cause food shortages
- Alcohols
