Mikrotik Rollover Cable

Ricardo Justinia Mikrotik CCNA Spanish 1 page

Content of the notes (1)

Mikrotik COM Settings

Baud = 115200

Data Bits = 8

Stop Bits = 1

Parity = None

Flow Control = None

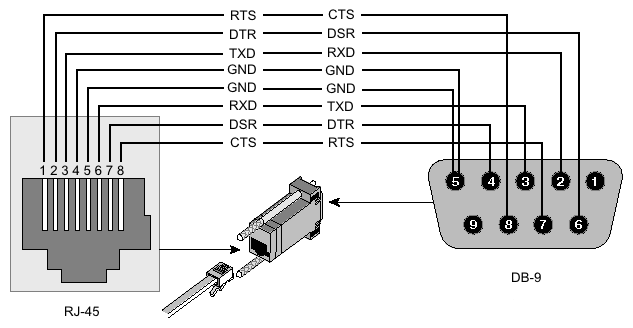

Mikrotik Rollover Cable Pinout

RJ-45 DB-9

1 8

2 6

3 2

4,5 5

6 3

7 4

8 7

Mikrotik Rollover Cable

Description: Mikrotik Rollover Cable Pinout and Construction Details
Created by: Ricardo Justinia
