Shape of Molecules

Question	Answer

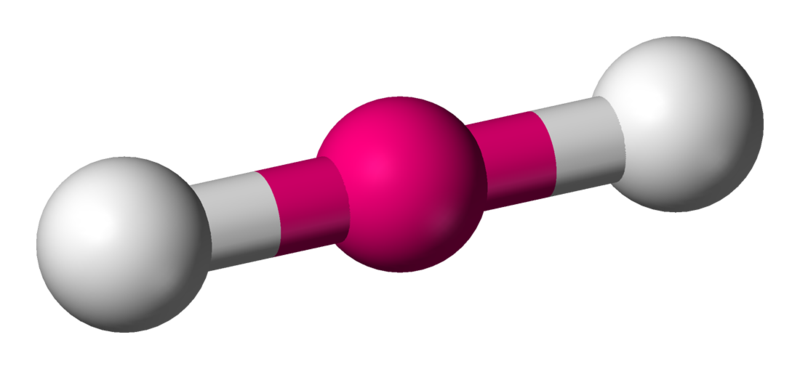

Draw the shape of linear bonding	Image: Lineargeometry (image/png)
State the bond angles for linear bonding	180°
State the bond angles for this shape Image: Lineargeometry (image/png)	180°

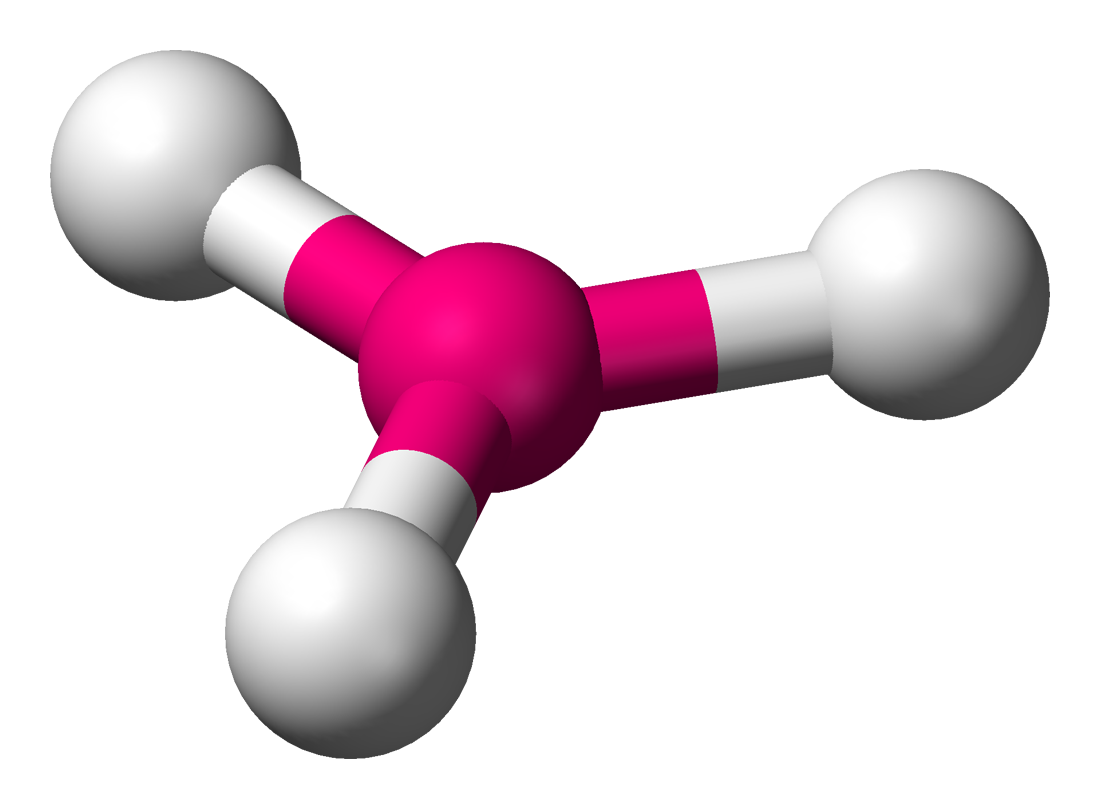

Draw the shape of trigonal planar bonding	Image: Trigonal (image/png)
State the bond angles for trigonal planar bonding	120°
State the bond angles for this shape Image: Trigonal (image/png)	120°
Draw the shape of tetrahedral bonding	Image: 119px Ax4 E0 3 D Balls (image/png)
State the bond angles for tetrahedral bonding	109.5°
State the bond angles for this shape Image: 119px Ax4 E0 3 D Balls (image/png)	109.5°
Draw the shape of trigonal bipyramidal bonding	Image: 220px Trigonal Bipyramidal 3 D Balls (image/png)
State the bond angles for trigonal bipyramidal bonding	120° & 90°
State the bond angles for this shape Image: 220px Trigonal Bipyramidal 3 D Balls (image/png)	120° & 90°
Draw the shape of octahedral bonding	Image: 220px Octahedral 3 D Balls (image/png)
State the bond angles for octahedral bonding	90°
State the bond angles for this shape Image: 220px Octahedral 3 D Balls (image/png)	90°
