Circuit Symbols
Cards in this deck (13)

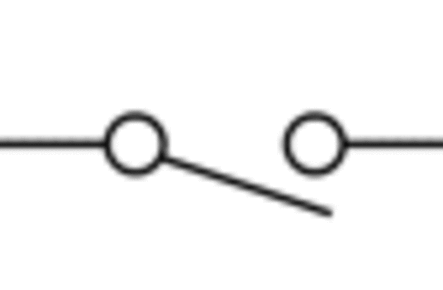

- 1—Open Switch

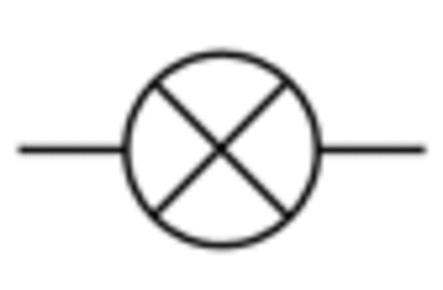

- 2—Bulb

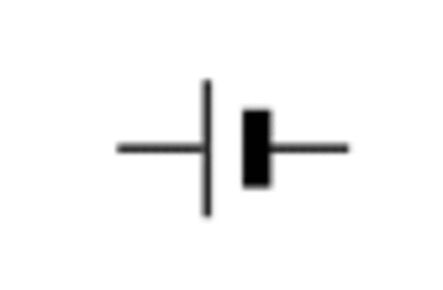

- 3—Cell

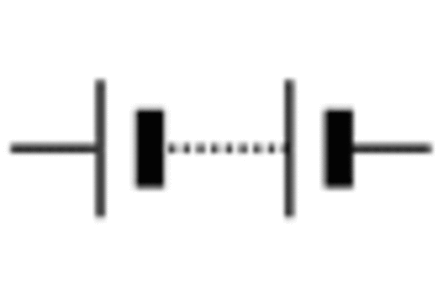

- 4—Battery

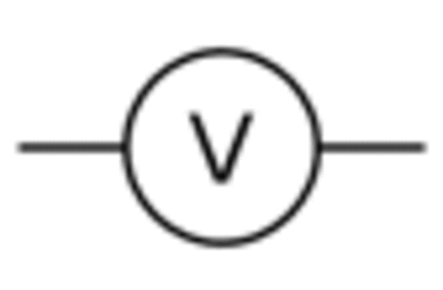

- 5—Voltmeter

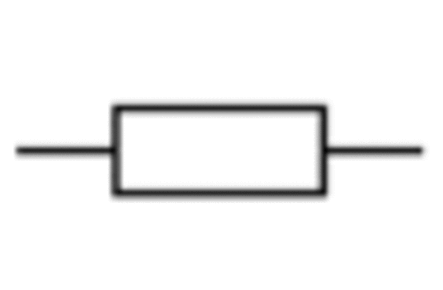

- 6—Resistor

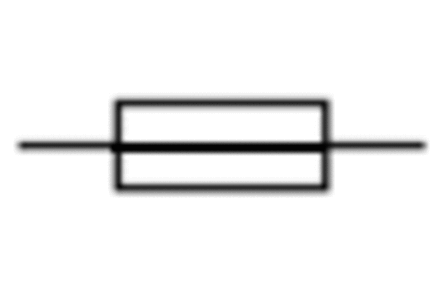

- 7—Fuse

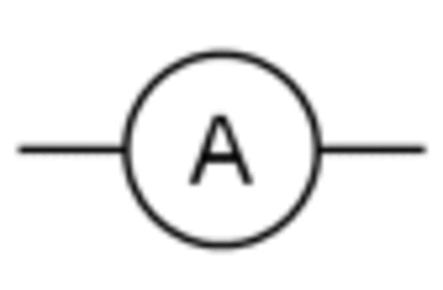

- 8—Ammeter

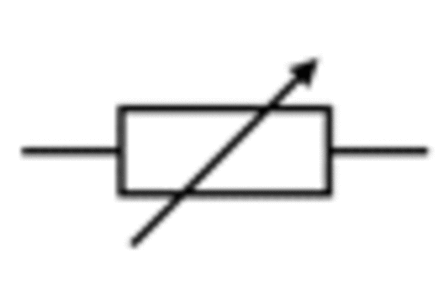

- 9—Variable Resistor

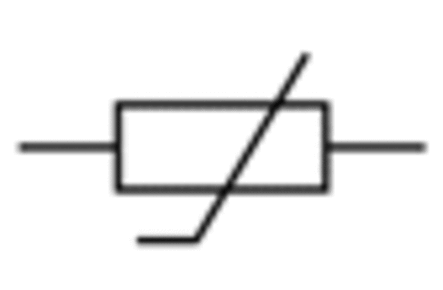

- 10—Thermistor

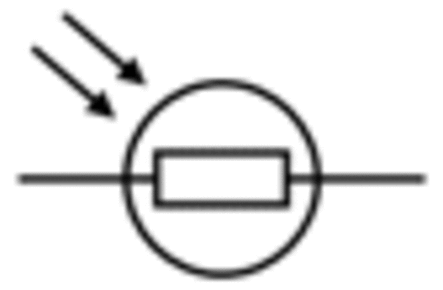

- 11—Light Dependent Resistor (LDR)

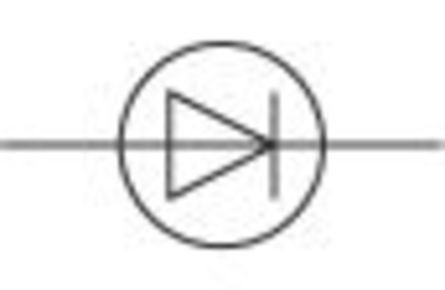

- 12—Diode

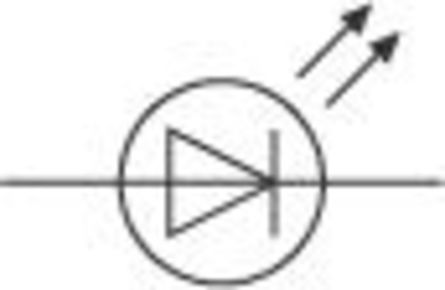

- 13—Light Emitting Diode (LED)
