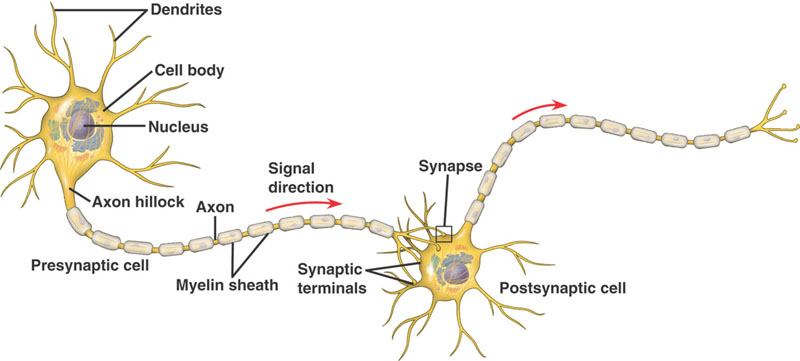

Structure of a Neuron
  1. Cell body/soma- contains the nucleus, ribosomes, and mitochondria
    1. Nucleus- contains chromosomes
      1. Ribosomes- cell synthesizes new protein molecules
        1. Mitochondria- performs metabolic activities to provide energy
        2. Dendrites- branching fibers lined with synaptic receptors
          1. Dendritic spines- short outgrowths that increase surface area
          2. Axon- the fiber of constant diameter. Conveys an impulse towards other neurons, organs and muscles
            1. Myelin sheath- insulates the axon to speed up impulse
              1. Nodes of Ranvier- interruptions along the myelin sheath
            2. Presynaptic Terminal- branches at the end of an axon that swell at the tip. Point at which axon releases chemicals that cross the junction between neurons
              1. Apical dendrites- go up and down between
                1. Basal dendrites- go left and right withing
