Reverse Logistics

Description

Spsnapodasopoasd
Gustavo Herrera
Mind Map by Gustavo Herrera, updated more than 1 year ago
Gustavo Herrera
Created by Gustavo Herrera over 6 years ago
77
0

Resource summary

Reverse Logistics
  1. Dimensions of the reverse logistics context
    1. Reverse logistics drivers
      1. Economic
        1. Cheap resources
          1. Cheaper than building/buying new products/virgin materials

            Annotations:

            • Precious metal recycling
          2. Marketing
            1. Green profile
              1. Service element

                Annotations:

                • Taking care of customers waste disposal needs
              2. Legislative
                1. Public Policy
                2. Asset protection
                  1. Leaking secondary markets or competitors
                3. Forms of recovery/Dispositioning options
                  1. Reused directly
                    1. Remanufacturing
                      1. Repair
                        1. Recycling
                          1. Disposal
                          2. Actors
                            1. Cycle time

                              Annotations:

                              • TIme period with the owner

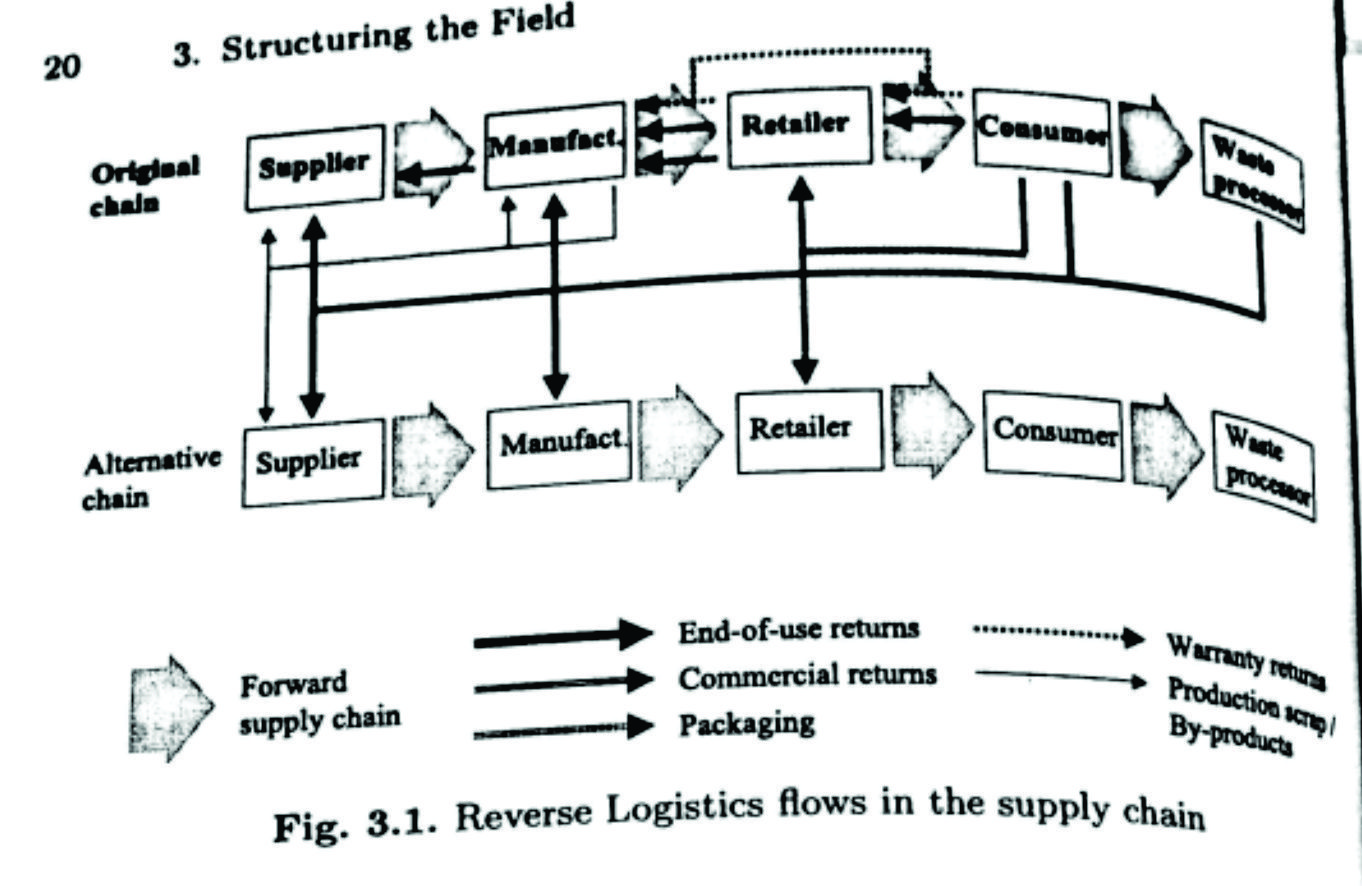

                            2. Categories of Reverse Logistics Flows

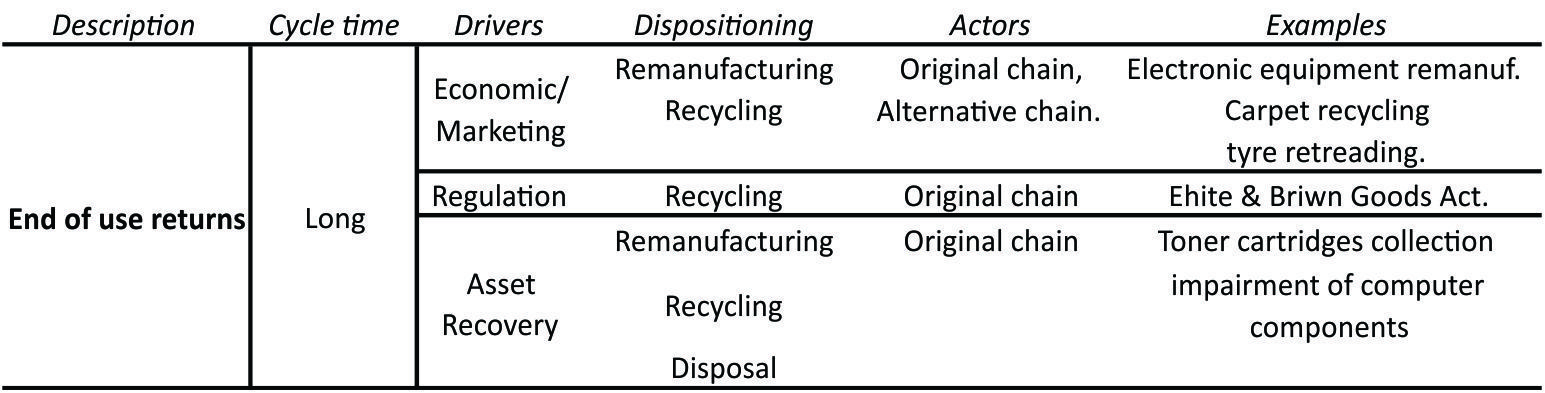

                              1. End of use returns

                                Annotations:

                                • products disposed of long after completing use

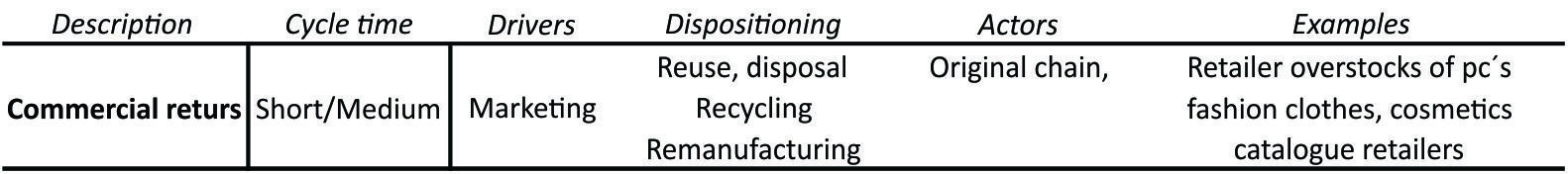

                                1. Commercial returns

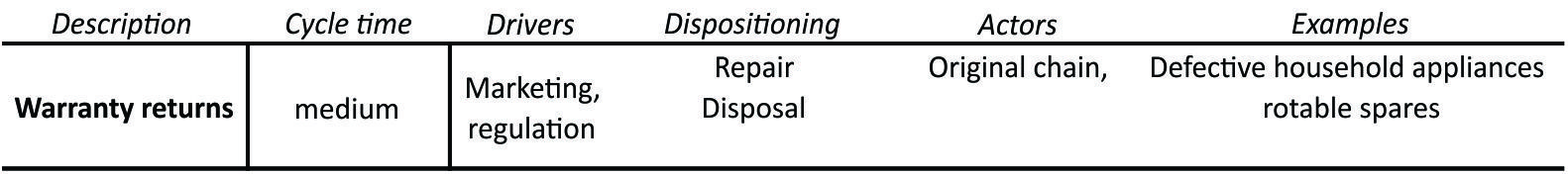

                                  1. Warranty returns

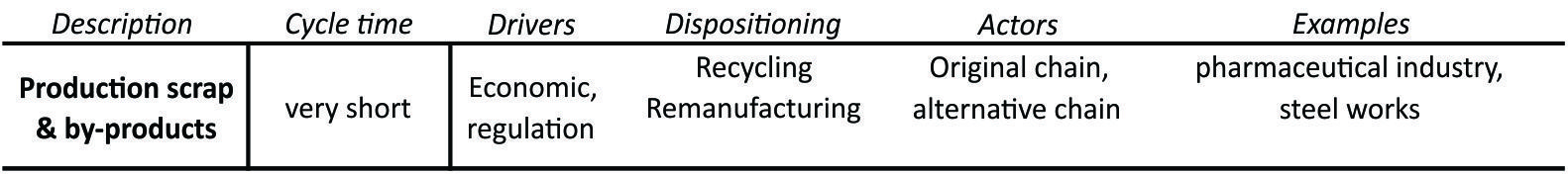

                                    1. Production scrap and by products

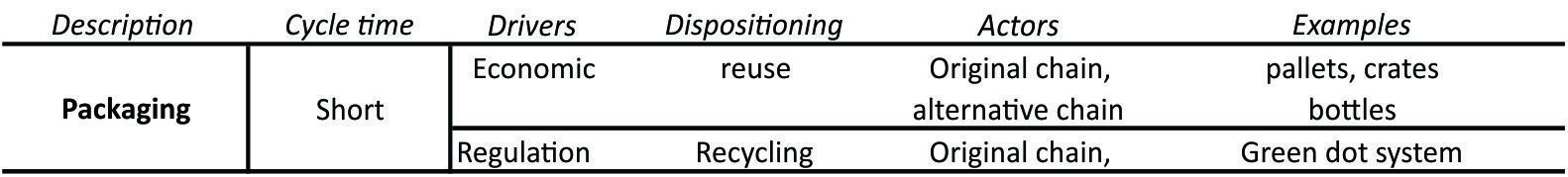

                                      1. Packaging
                                      2. Reverse distribution
                                        1. Commonalities
                                          1. Collection

                                            Annotations:

                                            • Activities rendering used products avaiable and physically moving them to some point.
                                            1. Purchasing
                                              1. Transportation
                                                1. Storage
                                                2. Inspection/Separation

                                                  Annotations:

                                                  • All operations determining whether a given product is in fact reusable and in which way. Splitting the flow of used products.
                                                  1. Disassembly
                                                    1. shredding
                                                      1. testing
                                                        1. Sorting
                                                          1. Storage steps
                                                          2. Re processing

                                                            Annotations:

                                                            • Transformation of a used product to a usable product again  (Recycling, repair, remanufacturing).
                                                            1. Cleaning
                                                              1. Replacement
                                                                1. Re assembly
                                                                2. Disposal

                                                                  Annotations:

                                                                  • Products cannot be reused, rejected at the separation level +repair requirements -market potential
                                                                  1. Transportation
                                                                    1. Landfilling
                                                                      1. Incineration steps
                                                                      2. Re distribution

                                                                        Annotations:

                                                                        • Directing reusable products to a potential market and to moving them to future users
                                                                        1. Reuse
                                                                          1. Sales
                                                                            1. Leasing
                                                                              1. Service
                                                                                1. Contracts
                                                                                2. Transportation
                                                                                  1. Storage

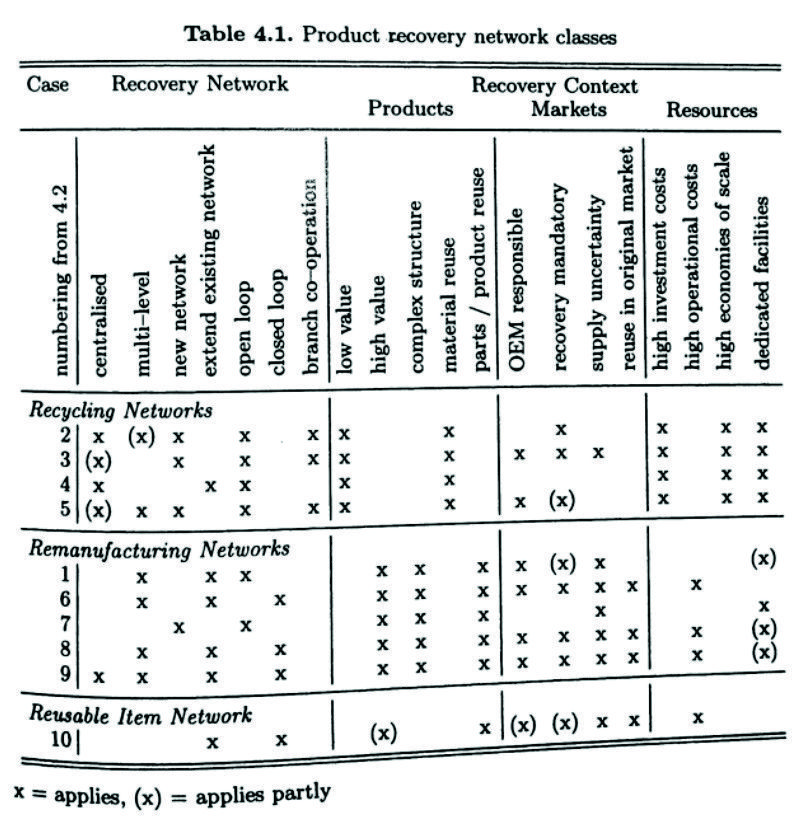

                                                                                3. Clasification of Recovery Networks
                                                                                  1. Structure
                                                                                    1. Centralisation

                                                                                      Annotations:

                                                                                      • Number of locations at which similar activities are carried out.
                                                                                      1. Centralised
                                                                                        1. Few locations
                                                                                        2. Decentralised
                                                                                          1. Several locations
                                                                                        3. Number of levels

                                                                                          Annotations:

                                                                                          • Number of facilities a goods flow visits squentially (vertical integration of network).
                                                                                          1. Links with other networks

                                                                                            Annotations:

                                                                                            • Degree of integration of a new network with existing.
                                                                                            1. Open vs closed loop

                                                                                              Annotations:

                                                                                              • Incoming and outgoing flows if a netwirk
                                                                                              1. Closed

                                                                                                Annotations:

                                                                                                • network sources and sinks coincide so that flows cycle in the network
                                                                                                1. Open

                                                                                                  Annotations:

                                                                                                  • One way structure enter in one point and finishes in another.
                                                                                                2. Degree of branch cooperation

                                                                                                  Annotations:

                                                                                                  • Parties responsable for setting up the network (single, joint, etc.)
                                                                                                3. Dimensions
                                                                                                  1. PRODUCT Characteristics

                                                                                                    Annotations:

                                                                                                    • The form of recovery determines the facilities required and hence the related investment costs.
                                                                                                    1. Physical
                                                                                                      1. Weight
                                                                                                        1. Volume
                                                                                                          1. Fragility
                                                                                                          2. Economic
                                                                                                            1. Value
                                                                                                              1. Rate of obsolescence
                                                                                                            2. MARKET Characteristics
                                                                                                              1. Actors-relationships

                                                                                                                Annotations:

                                                                                                                • Relative power and economic incentives.
                                                                                                                1. Suppliers
                                                                                                                  1. OEM´s
                                                                                                                    1. Service providers
                                                                                                                      1. Independent recoverers
                                                                                                                        1. Consumers
                                                                                                                          1. Public Authorities
                                                                                                                        2. Relevant RESOURCES
                                                                                                                          1. Recovery facilities
                                                                                                                            1. Human resources
                                                                                                                              1. Transportation resources

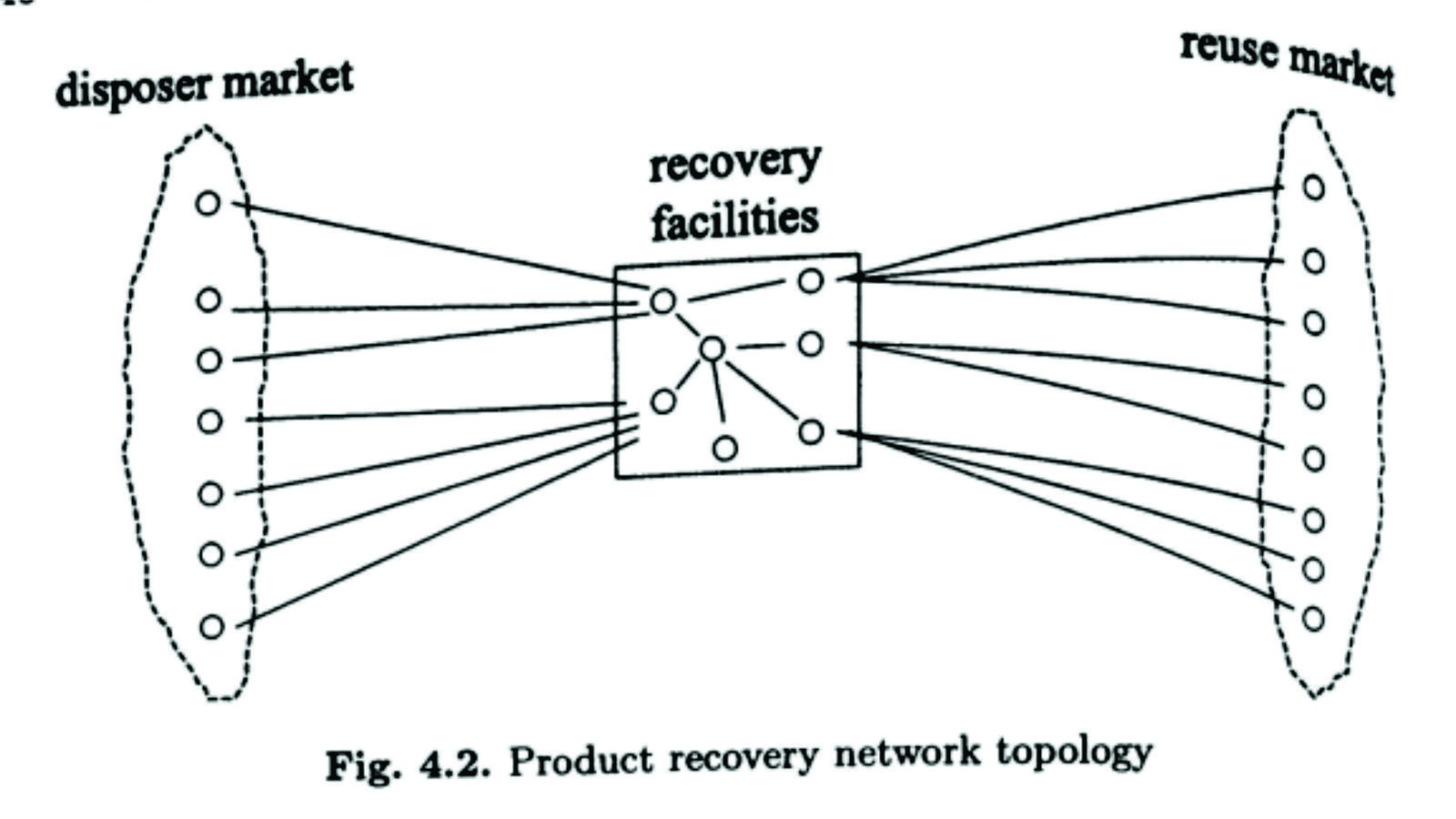

                                                                                                                            2. Product recovery network types
                                                                                                                              1. Bulk recycling networks
                                                                                                                                1. Assembly product remanufacturing networks
                                                                                                                                  1. Reusable item networks
                                                                                                                                2. Vehicle Routing Issues
                                                                                                                                  1. Lower time pressure
                                                                                                                                    1. Cost-revenue tradeoffs
                                                                                                                                      1. Vehicle loading
