Building Symbols/Construction Drawings

Meg McAteer Graphics Higher English 5.0Average rating 5.0 out of 5 (1 rating) 34 cards

Building Symbols/Construction Drawings

Cards in this deck (34)

  1. 1LampLamp
  2. 2SwitchSwitch
  3. 3SocketSocket
  4. 4RadiatorRadiator
  5. 5Shower trayShower tray
  6. 6BathtubBathtub
  7. 7WashbasinWashbasin
  8. 8SinkSink
  9. 9WCWC
  10. 10SinktopSinktop
  11. 11Towel railTowel rail
  12. 12ConcreteConcrete
  13. 13BrickworkBrickwork
  14. 14DoorDoor
  15. 15Sawn TimberSawn Timber
  16. 16Insulated BoardInsulated Board
  17. 17BlockworkBlockwork
  18. 18Fixed WindowFixed Window
  19. 19Window hinged at sideWindow hinged at side
  20. 20Window hinged at topWindow hinged at top
  21. 21Window hinged at bottomWindow hinged at bottom
  22. 22Pivot-centre windowPivot-centre window
  23. 23Window sliding horizontallyWindow sliding horizontally
  24. 24DrainageDrainage
  25. 25NorthNorth
  26. 26Existing treeExisting tree
  27. 27Existing tree to be removedExisting tree to be removed
  28. 28Proposed treeProposed tree
  29. 29ContoursContours

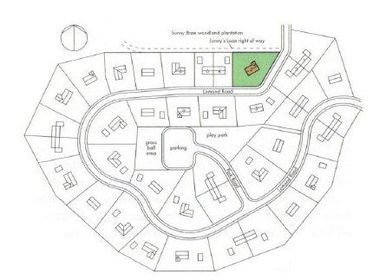

  30. 30—Location Plan
    Scale - 1:1250    Location Plan Scale - 1:1250

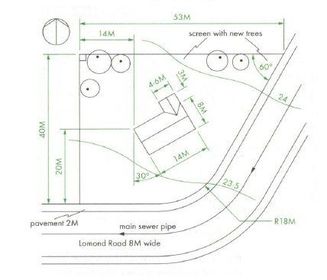

  31. 31—Site Plan
    Scale - 1:200    Site Plan Scale - 1:200

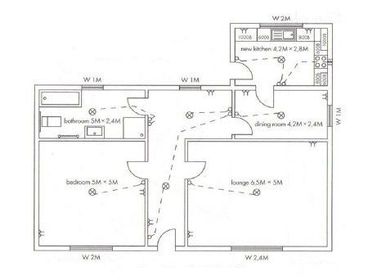

  32. 32—Floor Plan
    Scale - 1:50    Floor Plan Scale - 1:50
  33. 33—Section
    Scale - 1:20    Section Scale - 1:20

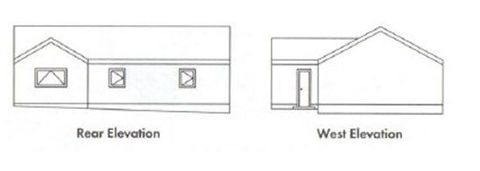

  34. 34—Elevations
    Scale - 1:100 or 1:50    Elevations Scale - 1:100 or 1:50

Information

Description
Higher Graphics (Drawing Standards) Flashcards on Building Symbols/Construction Drawings, created by Meg McAteer on 16/01/2016.
