Anaesthetic Circuit Identification

Kelly Winstanley
Flashcards by Kelly Winstanley, updated more than 1 year ago More Less
Kelly Winstanley
Created by Kelly Winstanley over 3 years ago
22
1
0

Description

Use the images to identify the name of the circuit, its circuit factor and whether it is rebreathing or non-rebreathing.

Resource summary

Question Answer
cb0c1b38-75d4-4f79-9aa1-a1c3d2fcb83f.jpg (image/jpg) AYRES T-PIECE WITH JACKSON REECE MODIFICATION Circuit Factor 2.5 - 3 Non-rebreathing

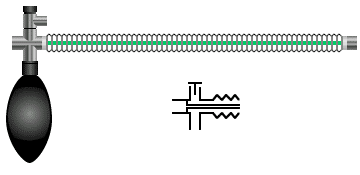

b86bf8ee-142c-4501-9b40-6bb5d59bf37a.gif (image/gif) BAIN Circuit Factor 2.5 - 3 Non-rebreathing

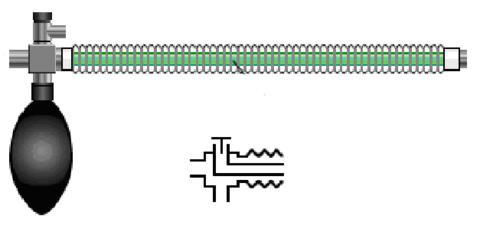

26a26e93-119a-40c9-952c-4885e3726e25.png (image/png) COAXIAL LACK Circuit Factor 1 - 1.5 Non-rebreathing
a4dfdd94-0d30-47cf-a4a2-a967ad898ddc.jpg (image/jpg) AYRES T-PIECE Circuit Factor 2.5 - 3 Non-rebreathing

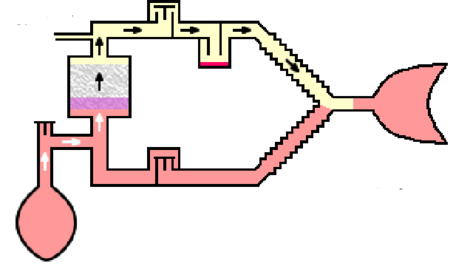

9c393c81-6084-4ffd-a3f4-2b1f7863bd60.png (image/png) CIRCLE No Circuit Factor, Just 10mls/kg Rebreathing

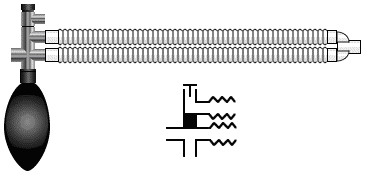

91f0da57-7334-4ece-8e54-b94921314ee9.gif (image/gif) PARALLEL OR MINI LACK Circuit Factor 1 - 1.5 Non-rebreathing
04483242-a1fa-4994-bdbf-9685ad165738.jpg (image/jpg) WATERS TO-AND-FRO No Circuit Factor, Just 25mls/kg Rebreathing
7a78885d-6f84-4997-b1fb-9d19f2696b16.png (image/png) MAGILL Circuit Factor 1 - 1.5 Non-rebreathing
